Digitus CAT 6A grey, Class EA Patch Panel, shielded

Name: Digitus CAT 6A grey, Class EA Patch Panel, shielded
Brand: Digitus
SKU: DIG-DN-91624S-EA
Price: 82.984401 EUR
Availability: InStock

GTIN: 4016032288428

In stock

SKU

DIG-DN-91624S-EA

Be the first to review this product

€82.98 €68.02

Your legal guarantee rights

Manufacturers: Digitus

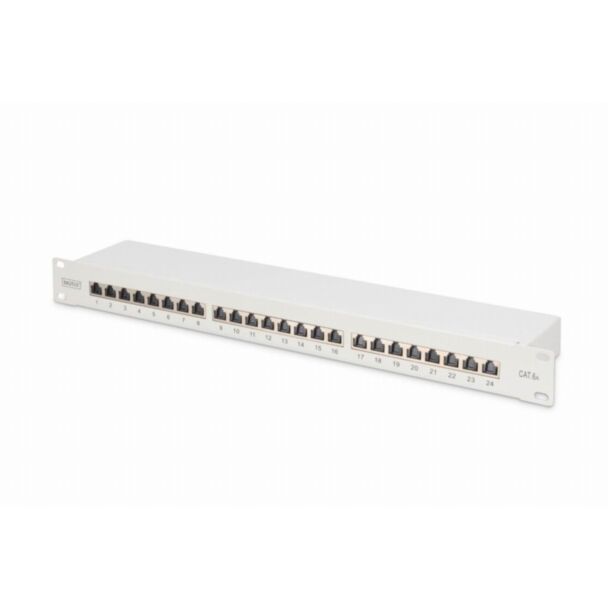

CAT 6A Patch Panel, shielded, 1U, 24-port, 8P8C, RAL 7035, 483 mm (19"), grey RAL 7035

Digitus CAT 6A grey, Class EA Patch Panel, shielded

Description

More Information

Reviews

Future-oriented standards and high-end quality for your network.

- Sturdy patch panel with metal housing
- Complete shielding of housing and shield contact
- Cable installation by IDC-strips
- Central grounding connector
- Dielectric strength up to 1500 VDC (contact/ground)
- Metal-coated (electrically conductive) cable fixation for grounding the cable shield

The DIGITUS® "DN-91624S-EA" CAT 6A Patch Panel is available as 24-port version and is made of 1.5 mm cold-rolled steel which makes it a sturdy Patch Panel for 19" rack mounting. It complies with the 802.3at PoE+ and the 802.3af PoE standardand is equipped with dust protection shutters.

More Information
Product Condition	New
Manufacturer	Digitus
manufacturer code	DN-91624S-EA
Ean	4016032288428
Modified on	23-06-2011
Product title	Digitus CAT 6A, Class EA Patch Panel, shielded
Long Product Name	CAT 6A Patch Panel, shielded, 1U, 24-port, 8P8C, RAL 7035, 483 mm (19"), grey RAL 7035
Product specifications	Network Ethernet interface type Gigabit Ethernet Ports quantity 24 Cable types supported Cat6a Design Product colour Grey Mounting Rack mounting Rack capacity 1U Weight & dimensions Depth 1.5 mm Packaging data Package width 560 mm Package depth 80 mm Package weight 1.81 kg Package volume 6944 cm³ Logistics data UK Trade Tariff code 85369010 Country of origin China Harmonized System (HS) code 85371098
Essential qualities	Transmission characteristics: Category 6A, Class EA Application areas: Up to 500 MHz, 10GBase-T Standards: ISO/IEC 11801 2nd Ed., EN 50173-1, EIA/TIA 568-C, 802.3af, 802.3at PoE+ General properties: Suitable for 483 mm (19") rack mounting RJ45 sockets, 8P8C Cable installation via LSA strips, color-coded according to EIA/TIA 568 A & B Cable fixation by means of quick latches Central earthing connection 360° shield contacting Integrated dust protection flaps Plastic labeling field CAT 6A Class EA for up to 500 MHz Mechanical properties: Housing material: 1.5 mm galvanized, cold-rolled steel according to EN1.4301, UNS S30400, AISI 304 and LMSAD110 RJ45 socket material: ABS UL 94V-0 Contact RJ45 socket: Nickel-plated phosphor bronze, 0.5 μ gold-plated contact RJ-45 shielding: Nickel-plated bronze LSA cutting clamp: Krone LSA+, UL 94V-2, galvanized phosphor bronze Earthing wire: Not included in the scope of delivery Printed circuit board: FR4, UL 94V-0 Physical properties: Insertion force: 30N max. (IEC 60603-7-5) Tensile load: 7.7 kg between socket and plug Operating temperature: -20° C to +70 °C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C) Socket mating cycle: > 750 acc. to ISO/IEC 11801, IEC 60603-7-5 Terminal: > 200 acc. to ISO/IEC 11801, IEC 60603-7-5 Core receptacle: 22-26 AWG solid and stranded conductors Insulation resistance: > 500 MOhm Contact resistance: < 20 milliOhms Dielectric strength: 1000 VDC (contact/contact), 1500 VDC (contact/ground)
Ports quantity	24
Mounting	Rack mounting
Rack capacity	1U
