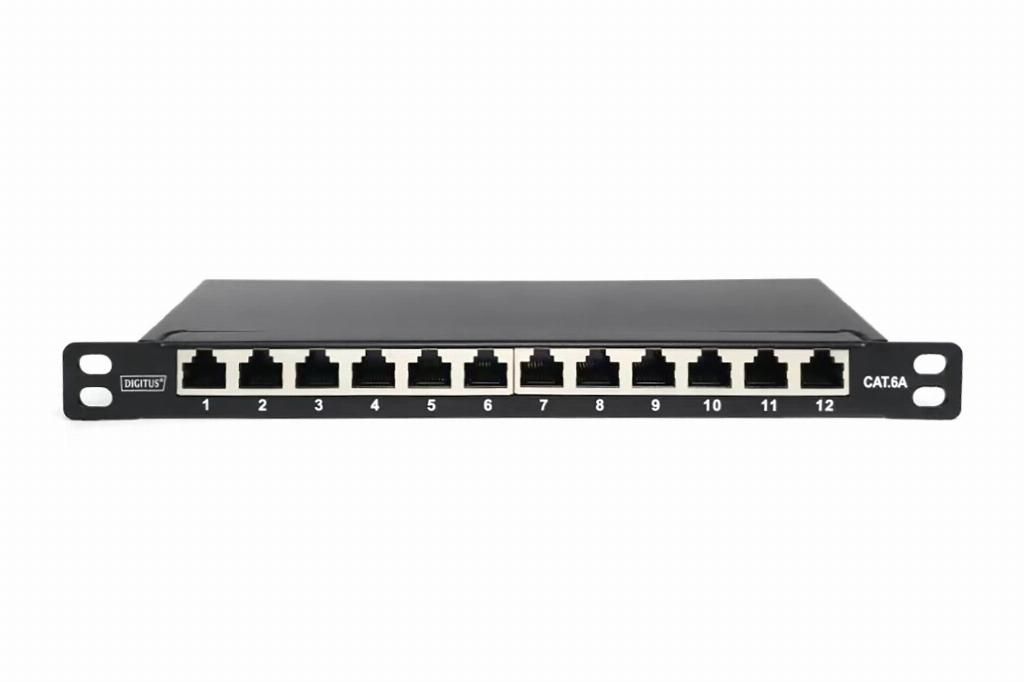

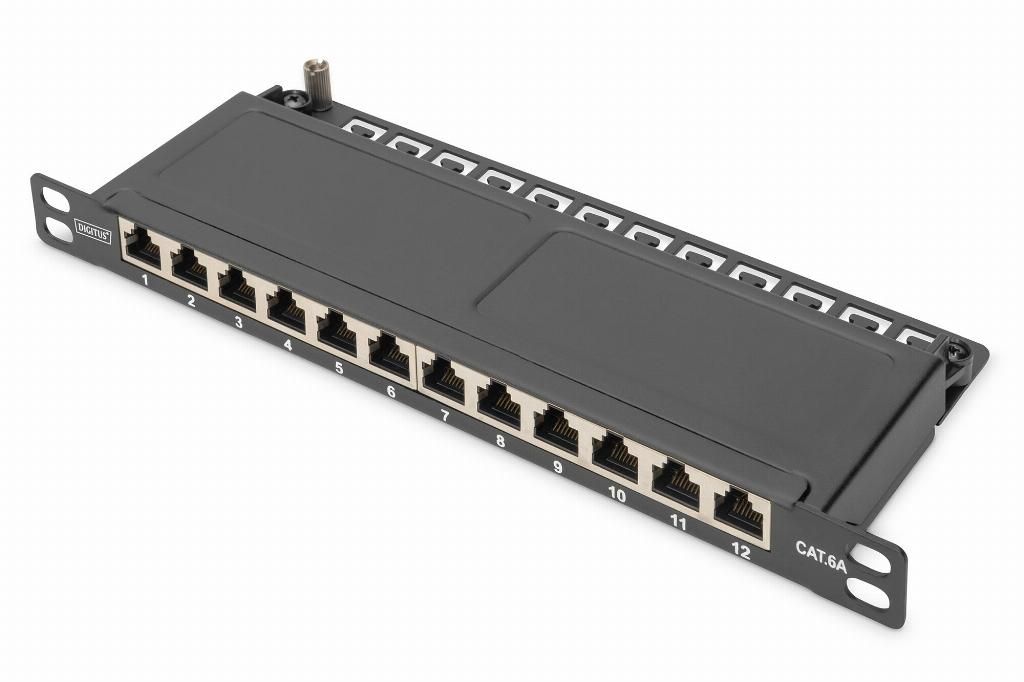

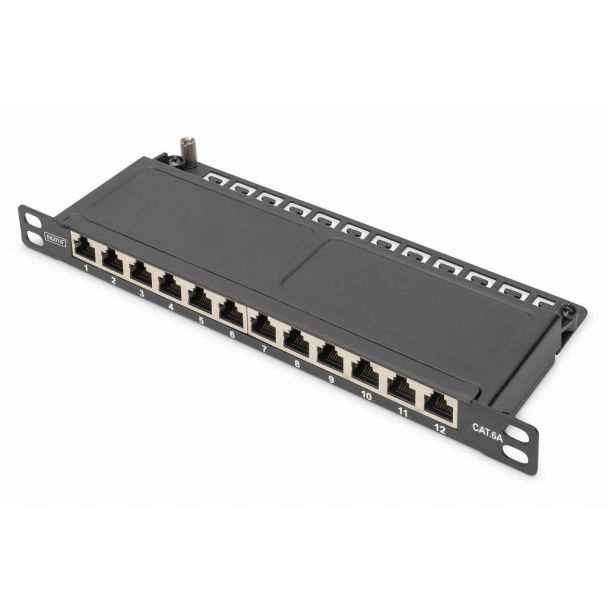

Digitus CAT 6A Slim Patch Panel, shielded, 12-port, 0.5 U, 10", black
GTIN: 4016032473176
CAT 6A Patch Panel, shielded,12-Port 1/2U, 10" rack mount, black RAL 9005
Very space-saving (only 0.5U) - future-oriented standards and high-end quality for your network
- Slim installation height of only 0.5 U
- Complete shielding of housing and shield contacting

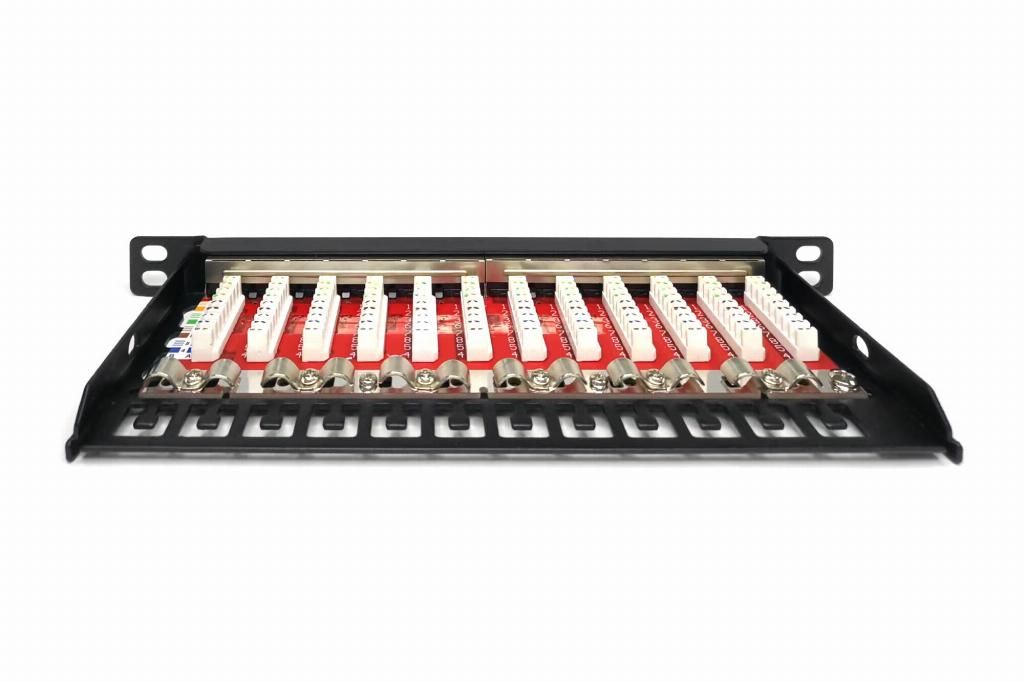

- Cable installation via LSA strips
- Central earthing connection
- Dielectric strength up to 1500 VDC (contact / ground)
- PoE-capable according to: IEEE 802.3af, IEEE 802.3at PoE+
- 360° shield contacting
- Quick-release fastener to secure the housing cover
- Wall mounting possible
The DIGITUS® 12-Port Patch Panel offers a very high packing density with only 0.5 U. This means that up to 24 ports can be implemented on 1 U with two 0.5 U panels. The patch panel is shielded. The 360° shield contact of the cables ensures the best performance characteristics. The installation cables can be securely fixed with the integrated cable clamps. The quick-release fastener on the housing ensures easy and tool-free access to the LSA cutting terminals. It complies with the 802.3at PoE+ and the 802.3af PoE standard.
| Product Condition | New |
|---|---|
| Manufacturer | Digitus |
| manufacturer code | DN-91612S-SL-EA |
| Ean | 4016032473176 |
| Mounting | Rack mounting |
| Rack capacity | 1U/2U |
| Modified on | 31-07-2021 |
| Product title | Digitus CAT 6A, Class EA Patch Panel, shielded, 12-port, 0.5U, 10", black |
| Long Product Name | CAT 6A Patch Panel, shielded,12-Port 1/2U, 10" rack mount, black RAL 9005 |
| Product specifications | NetworkNetworking standards IEEE 802.3af, IEEE 802.3at Cabling technology 10Base-T Ports quantity 12 Cable types supported Cat6a AWG wire size 26/22 DesignProduct colour Black Material Steel Mounting Rack mounting Rack capacity 1U/2U Operational conditionsOperating temperature (T-T) -20 - 70 °C Packaging dataPackage width 60 mm Package depth 260 mm Package weight 890 g Package volume 1872 cm³ Logistics dataUK Trade Tariff code 85369010 Country of origin China Harmonized System (HS) code 85371098 |
| Essential qualities |
|
| Ports quantity | 12 |
