Digitus Desktop CAT 6, class E patch panel, shielded

Name: Digitus Desktop CAT 6, class E patch panel, shielded
Brand: Digitus
SKU: DIG-DN-91608SD
Price: 24.509801 EUR
Availability: InStock

GTIN: 4016032241584

In stock

SKU

DIG-DN-91608SD

Be the first to review this product

€24.51 €20.09

Manufacturers: Digitus

Desktop CAT 6 Patch Panel, shielded Class E, 8-port RJ45, 8P8C, LSA, black, 482x44x109

Digitus Desktop CAT 6, class E patch panel, shielded

Description

More Information

Reviews

Use in SOHO applications

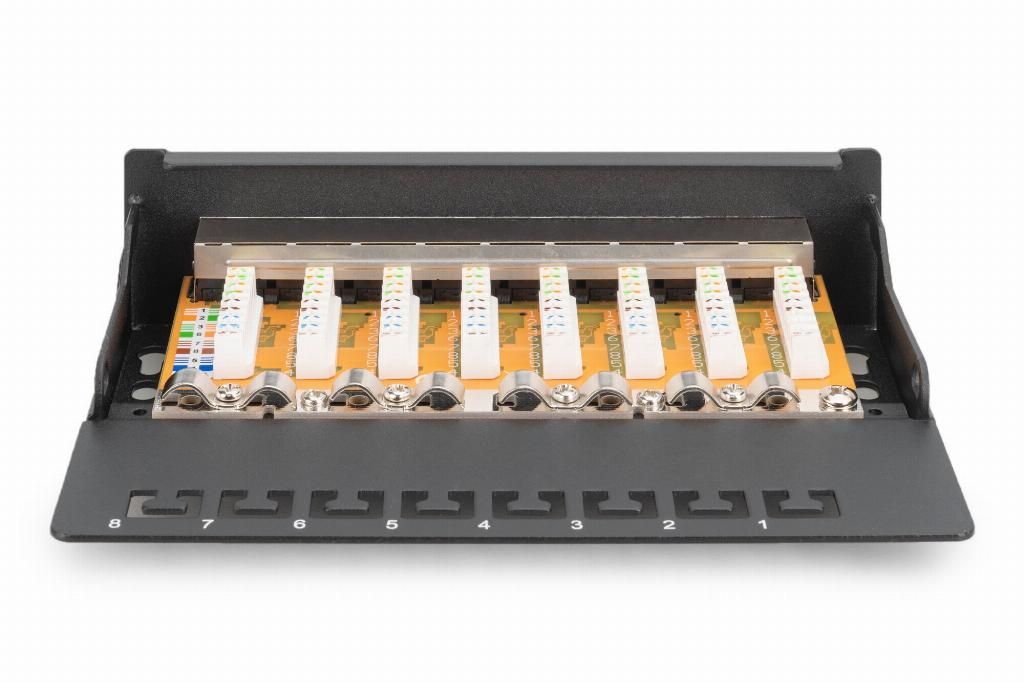

- Simple cable installation possible thanks to color-coded LSA strips
- Shielding ensures optimized performance
- Robust patch panel with metal housing
- Desktop patch panel for the smart home office

The Desktop Patch Panels from DIGITUS® are the ideal solution for SoHo applications (Smart Office Home Office) The fully shielded RJ45 sockets offer optimum support for your cables with the best performance.

leaflet

More Information
Product Condition	New
Manufacturer	Digitus
manufacturer code	DN-91608SD
Ean	4016032241584
Modified on	11-08-2012
Product title	Digitus Desktop CAT 6, Class E Patch Panel, shielded
Long Product Name	Desktop CAT 6 Patch Panel, shielded Class E, 8-port RJ45, 8P8C, LSA, black, 482x44x109
Product specifications	Network Ports quantity 8 Connector(s) RJ-45 Cable types supported Cat6 Design Product colour Black Packaging data Package width 285 mm Package depth 55 mm Packaging data Package weight 778 g Package volume 2351.25 cm³ Logistics data UK Trade Tariff code 85369010 Country of origin China Harmonized System (HS) code 85371098
Essential qualities	Application areas: Up to 250 MHz, 1GBase-T Standards: ISO/IEC 11801 3rd Ed., EN 50173-1, EIA/TIA 568-C General properties: Suitable for surface-mounted installations RJ45 sockets, 8P8C Cable installation via LSA strips, color-coded according to EIA/TIA 568 A & B Cable fixing by means of quick latches Central earthing connection 360° shield contacting Mechanical properties: Housing material: 1.5 mm galvanized, cold-rolled steel according to EN1.4301, UNS S30400, AISI 304 and LMSAD110 RJ45 socket material: ABS UL 94V-0 Contact RJ45 socket: Nickel-plated phosphor bronze, 0.5 μ gold-plated contact RJ-45 shielding: Nickel-plated bronze LSA cutting clamp: Krone LSA+, UL 94V-2, galvanized phosphor bronze Earthing wire: Not included in the scope of delivery Printed circuit board: FR4, UL 94V-0 Physical properties: Insertion force: 30N max. (IEC 60603-7-5) Tensile load: 7.7 kg between socket and plug Operating temperature: -20° C to +70 °C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C) Socket mating cycle: > 750 acc. to ISO/IEC 11801, IEC 60603-7-5 Terminal: > 200 acc. to ISO/IEC 11801, IEC 60603-7-5 Core receptacle: 22-26 AWG solid and stranded conductors Insulation resistance: > 500 MOhm Contact resistance: < 20 milliOhms Dielectric strength: 1000 VDC (contact/contact), 1500 VDC (contact/ground)
Ports quantity	8
