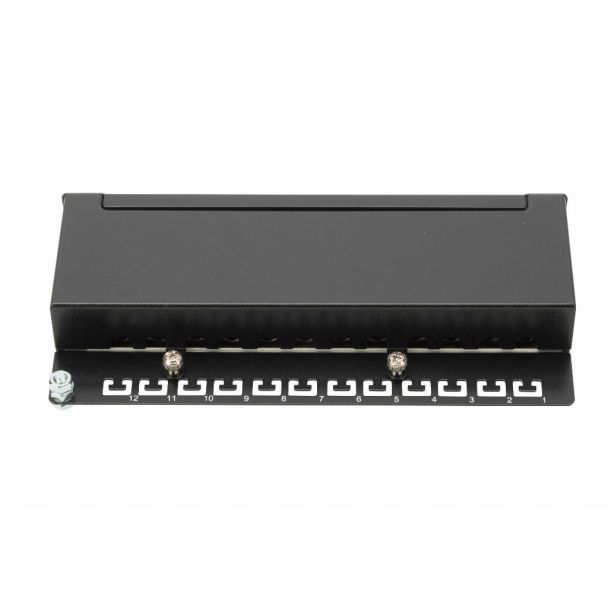

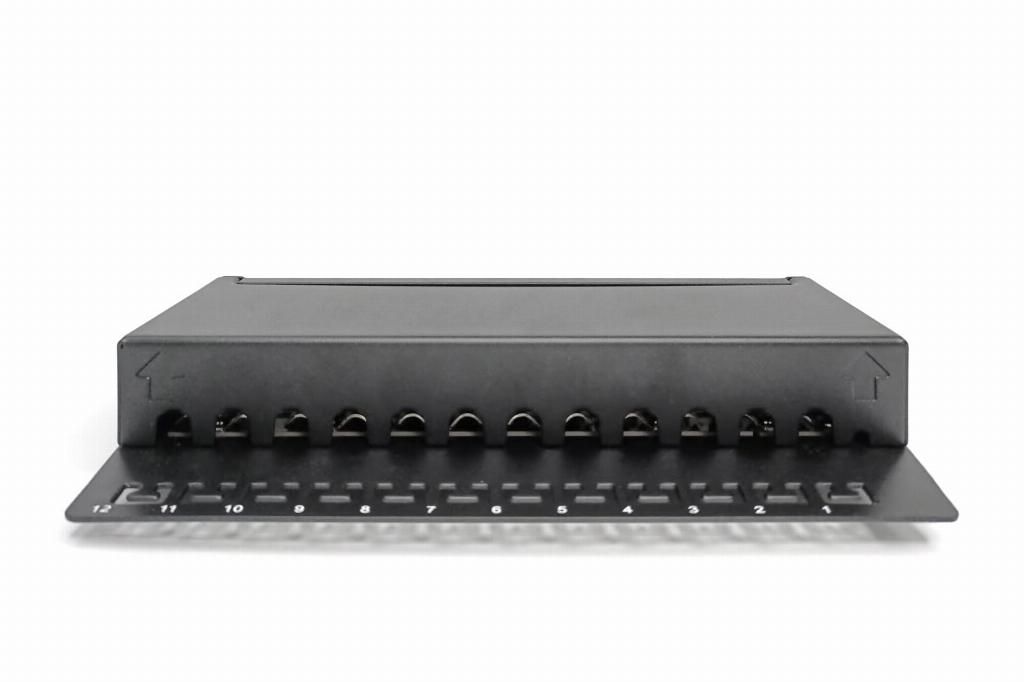

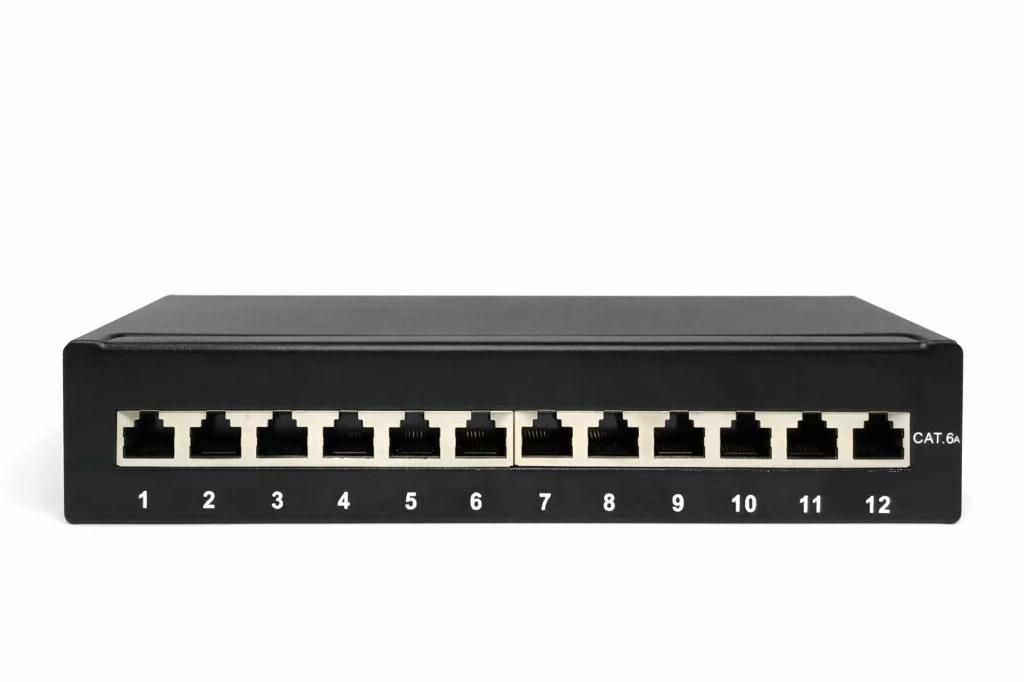

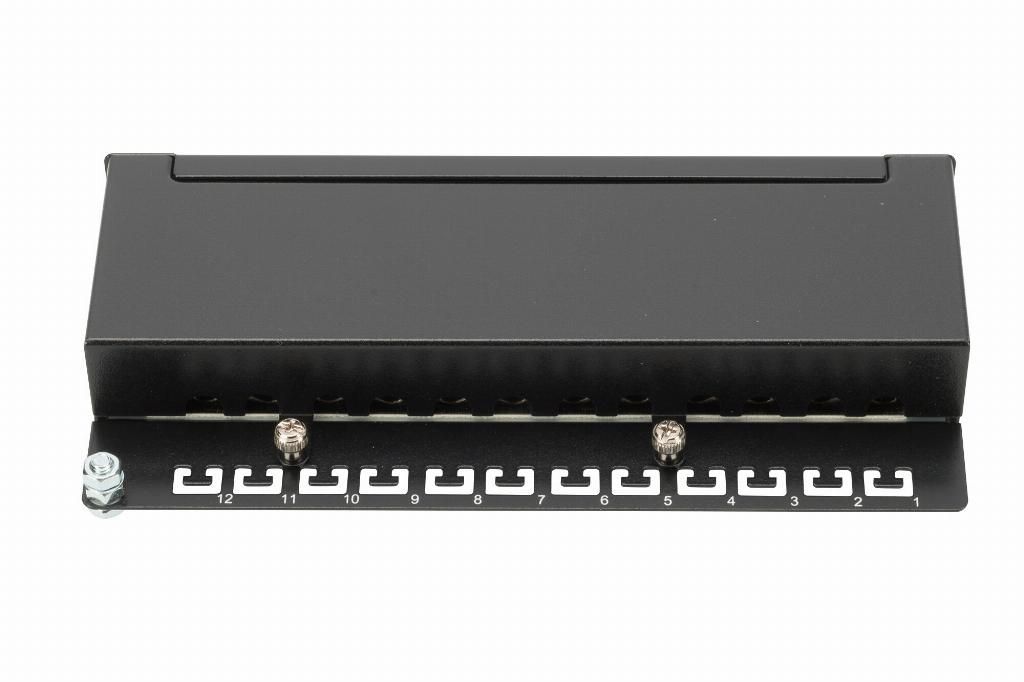

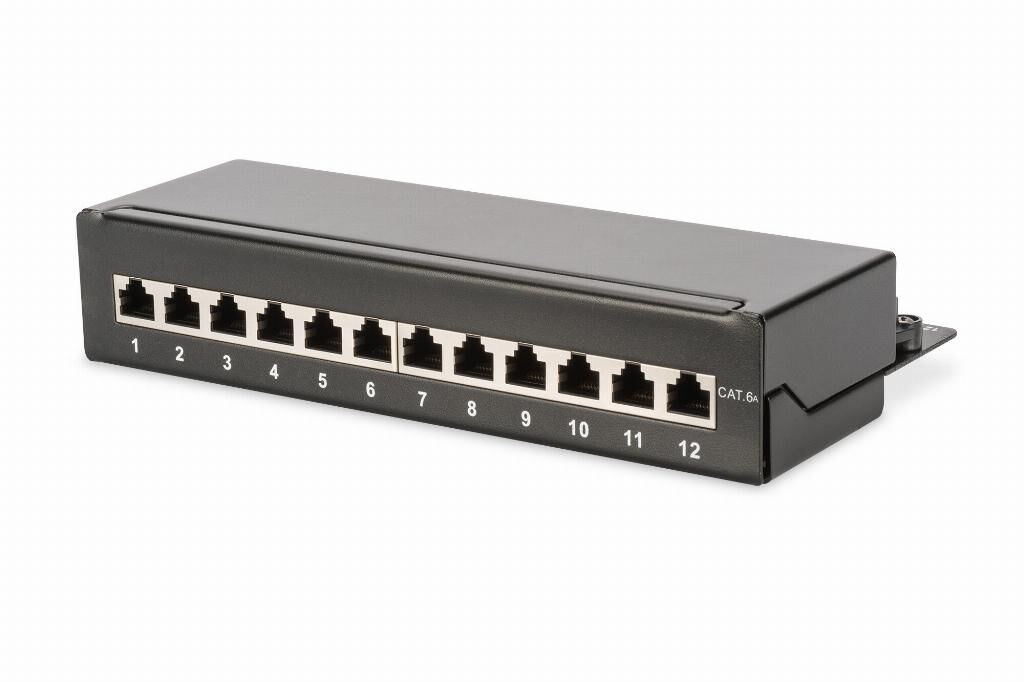

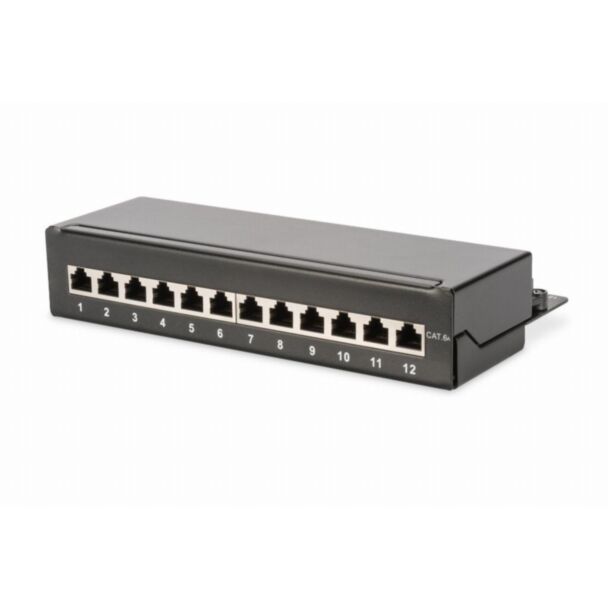

Digitus Desktop CAT 6A, class EA patch panel, shielded, black

Name: Digitus Desktop CAT 6A, class EA patch panel, shielded, black
Brand: Digitus
SKU: DIG-DN-91612SD-EA
Price: 33.184001 EUR
Availability: InStock

GTIN: 4016032315063

In stock

SKU

DIG-DN-91612SD-EA

Be the first to review this product

€33.18 €27.20

Manufacturers: Digitus

Desktop CAT 6A Patch Panel, shielded Class EA, 12-port RJ45, 8P8C, LSA

Digitus Desktop CAT 6A, class EA patch panel, shielded, black

Description

More Information

Reviews

Use in SOHO applications

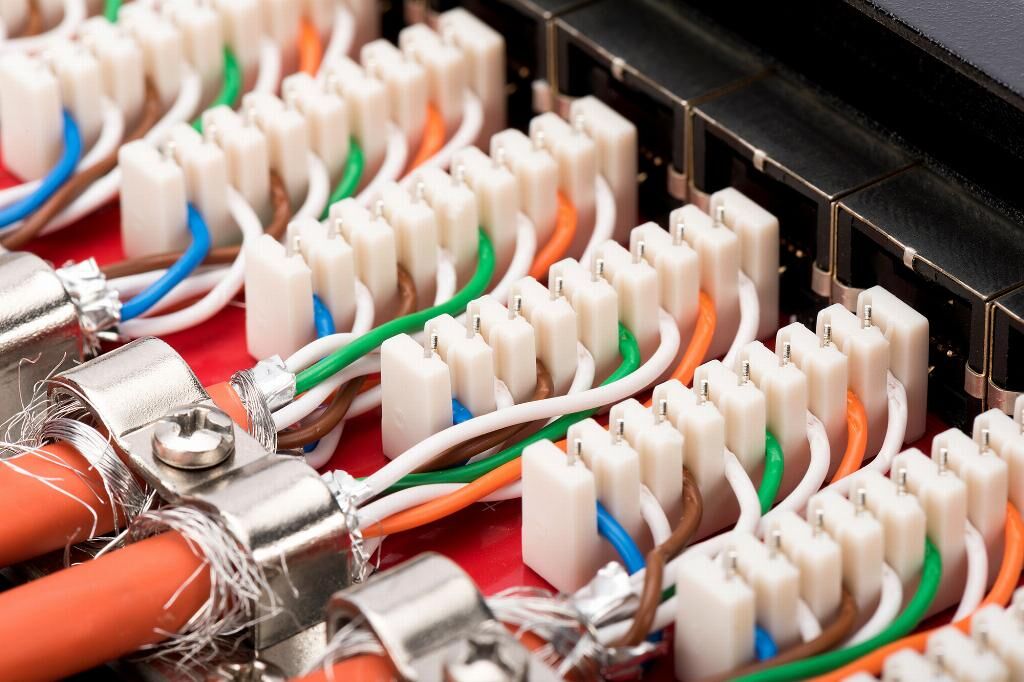

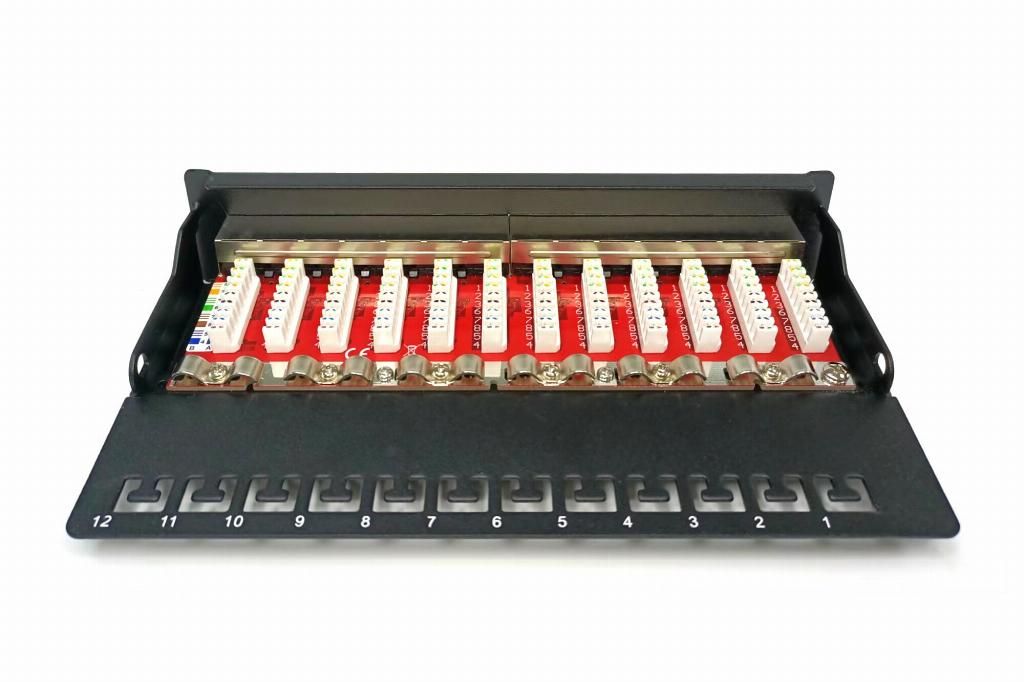

- Simple cable installation possible thanks to color-coded LSA strips
- Shielding ensures optimized performance
- Robust patch panel with metal housing
- Desktop patch panel for the smart home office

The Desktop Patch Panels from DIGITUS® are the ideal solution for SoHo applications (Smart Office Home Office) The fully shielded RJ45 sockets offer optimum support for your cables with the best performance.

leaflet

More Information
Product Condition	New
Manufacturer	Digitus
manufacturer code	DN-91612SD-EA
Ean	4016032315063
Modified on	29-03-2013
Product title	Digitus Desktop CAT 6A, Class EA patch panel, shielded, black
Long Product Name	Desktop CAT 6A Patch Panel, shielded Class EA, 12-port RJ45, 8P8C, LSA
Product specifications	Network Ethernet interface type 10 Gigabit Ethernet Ports quantity 12 Connector(s) RJ-45 Design Product colour Black Material Galvanized steel, SECC Packaging data Package width 175 mm Package length 6 cm Packaging data Package depth 60 mm Package height 285 mm Package weight 1.07 kg Package volume 2992.5 cm³ Logistics data UK Trade Tariff code 85369010 Country of origin China Harmonized System (HS) code 85371098
Essential qualities	Transmission characteristics: Category 6A, class EA Application areas: Up to 500 MHz, 10GBase-T Standards: ISO/IEC 11801 2nd Ed., EN 50173-1, EIA/TIA 568-C, 802.3af, 802.3at PoE+ General properties: Suitable for surface-mounted installations RJ45 sockets, 8P8C Cable installation via LSA strips, color-coded according to EIA/TIA 568 A & B Cable fixing by means of quick latches Central earthing connection 360° shield contacting Mechanical properties: Housing material: 1.5 mm galvanized, cold-rolled steel according to EN1.4301, UNS S30400, AISI 304 and LMSAD110 RJ45 socket material: ABS UL 94V-0 Contact RJ45 socket: Nickel-plated phosphor bronze, 0.5 μ gold-plated contact RJ-45 shielding: Nickel-plated bronze LSA cutting clamp: Krone LSA+, UL 94V-2, galvanized phosphor bronze Earthing wire: Not included in the scope of delivery Printed circuit board: FR4, UL 94V-0 Physical properties: Insertion force: 30N max. (IEC 60603-7-5) Tensile load: 7.7 kg between socket and plug Operating temperature: -20° C to +70 °C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C) Socket mating cycle: > 750 acc. to ISO/IEC 11801, IEC 60603-7-5 Terminal: > 200 acc. to ISO/IEC 11801, IEC 60603-7-5 Core receptacle: 22-26 AWG solid and stranded conductors Insulation resistance: > 500 MOhm Contact resistance: < 20 milliOhms Dielectric strength: 1000 VDC (contact/contact), 1500 VDC (contact/ground)
Ports quantity	12
