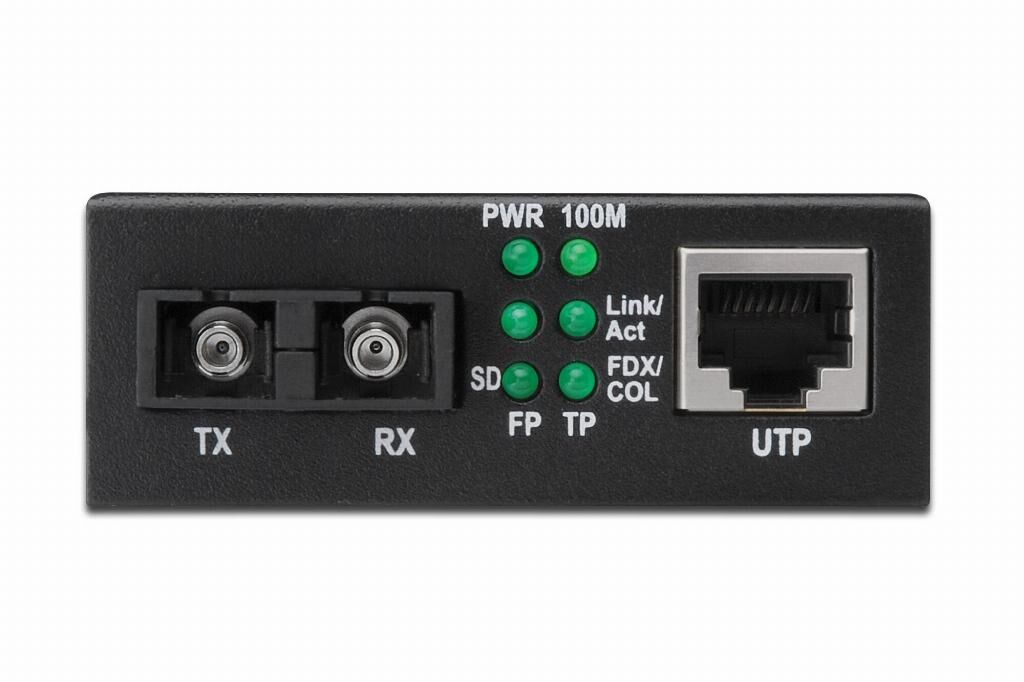

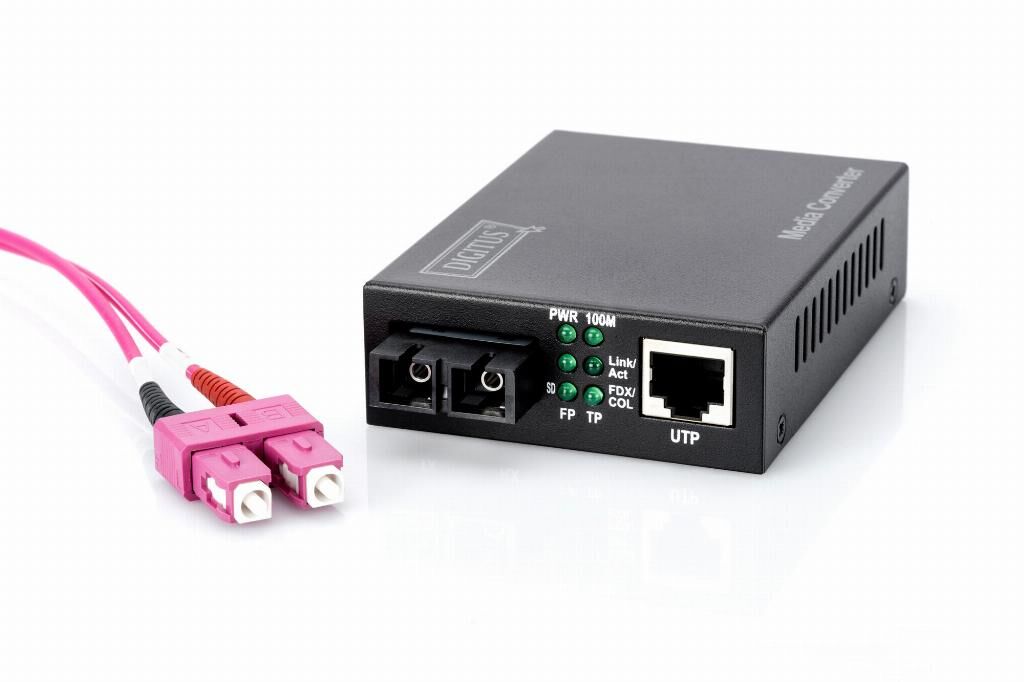

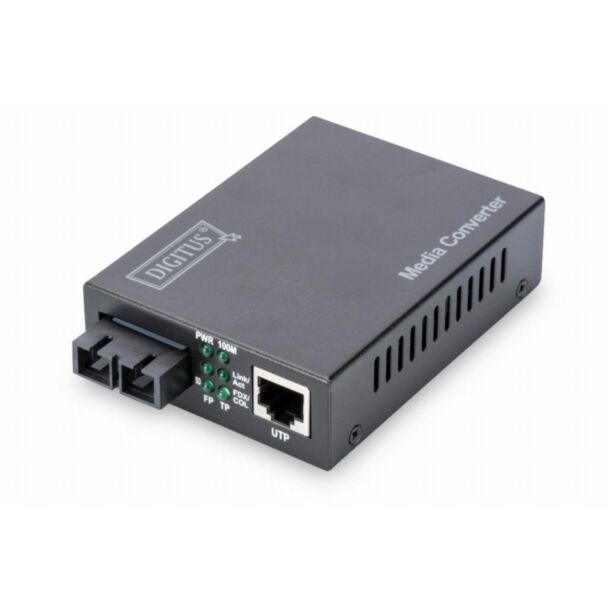

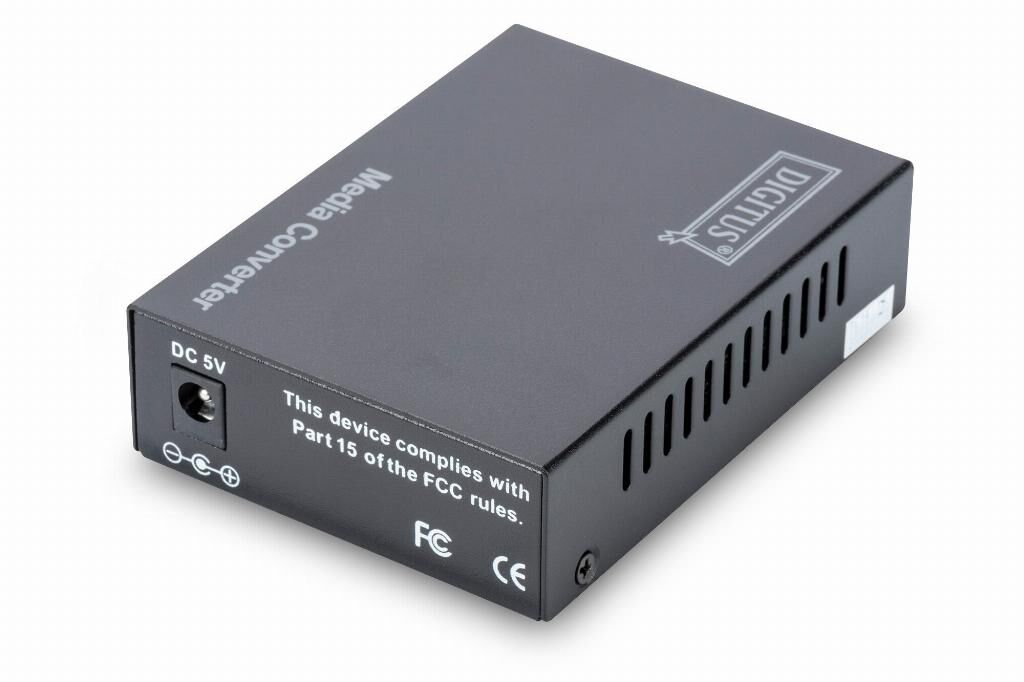

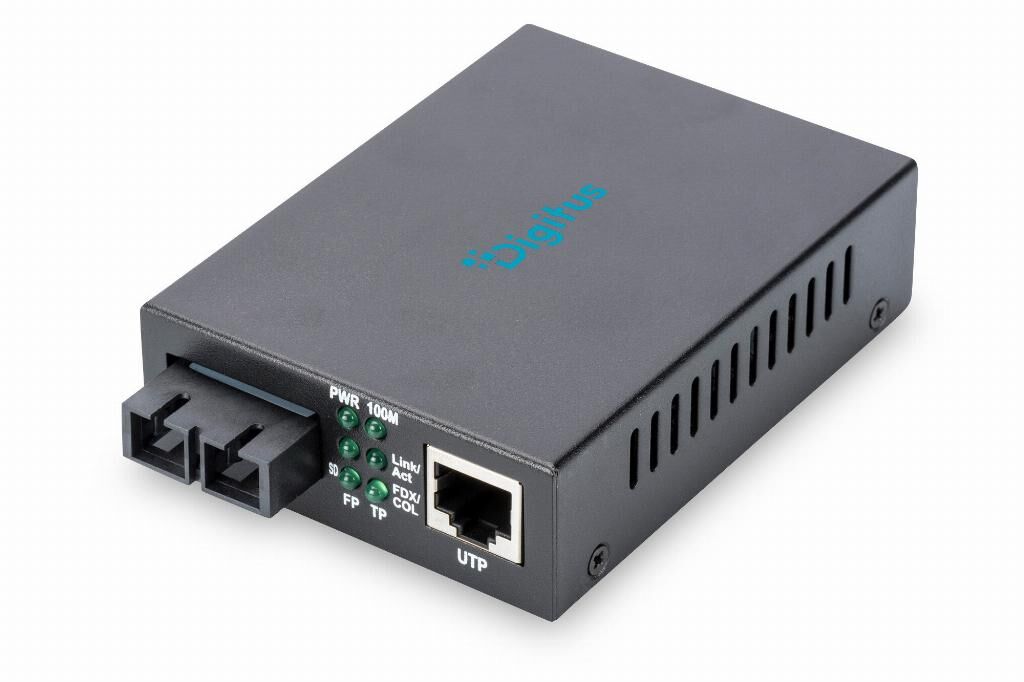

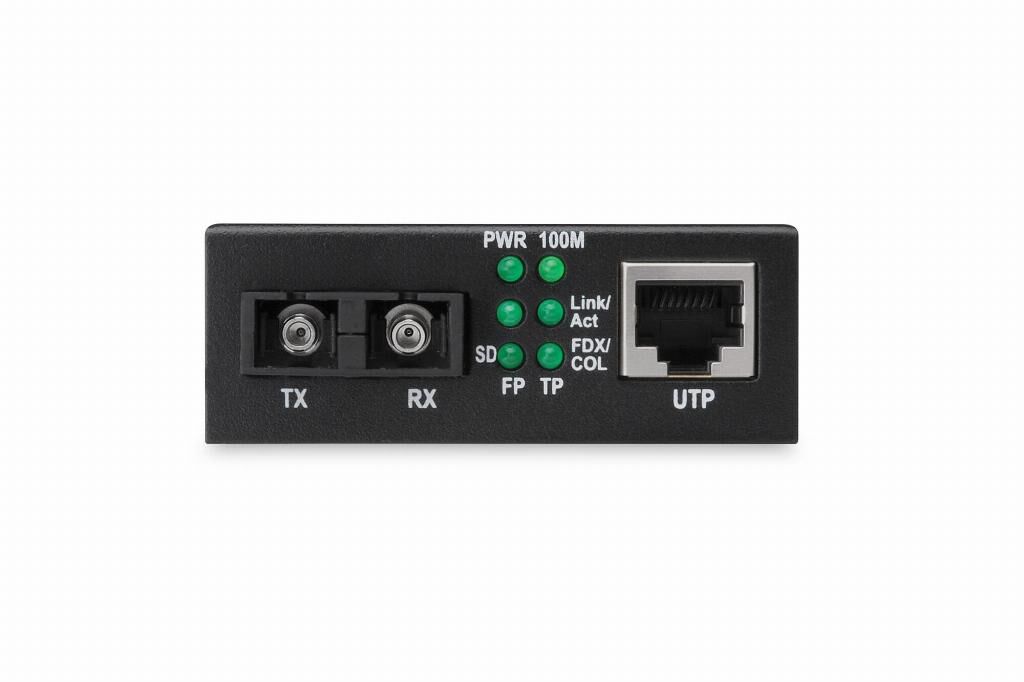

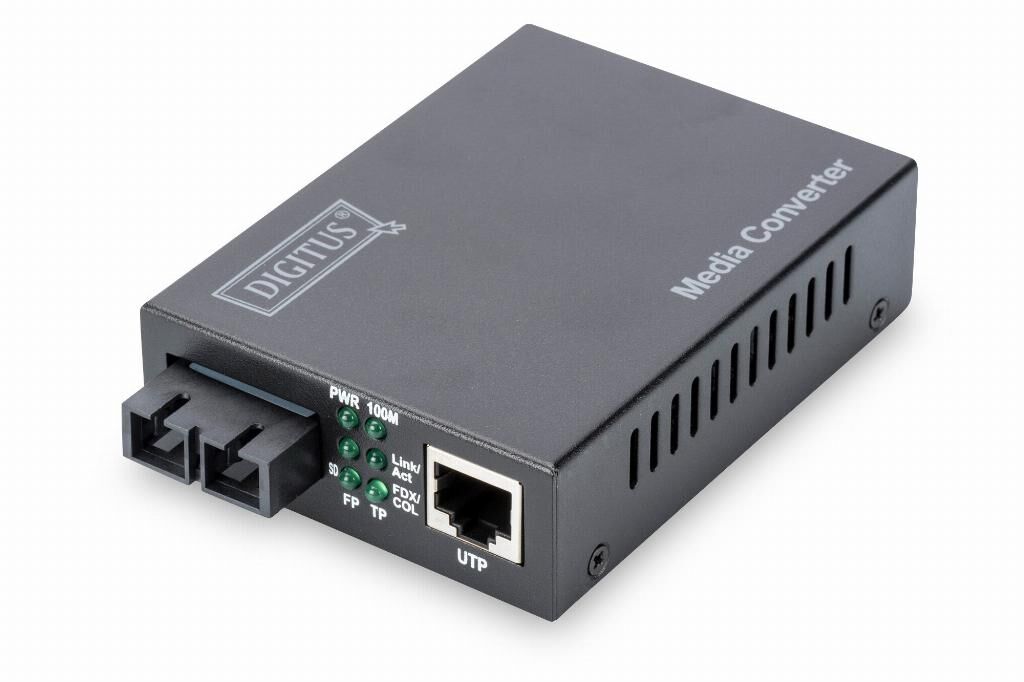

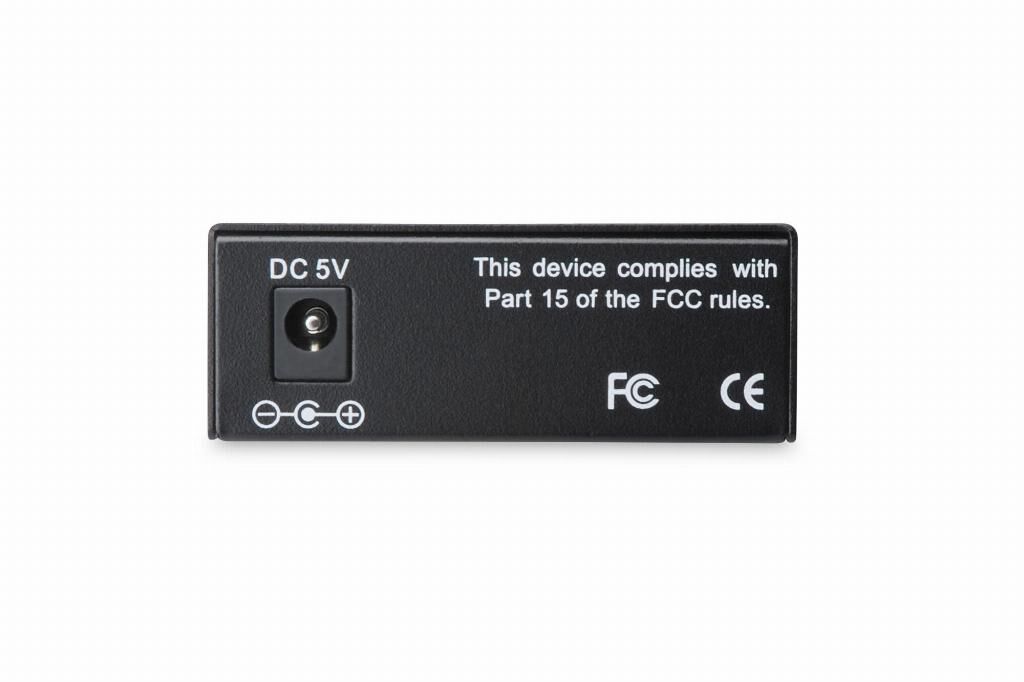

Digitus Fast Ethernet Media Converter, Multimode SC connector, 1310nm, up to 2km
GTIN: 4016032293095
Fast Ethernet Media Converter, Multimode SC connector, 1310nm, up to 2km
The perfect converter solution for various fiber media
- Distance up to 2km
- Sends data in high quality and additionally provides excellent reliability
- Complies with IEEE 802.3 Ethernet and IEEE 802.3u Fast Ethernet standards
The Media Converters from DIGITUS are the ideal solution for the migration of Copper and Fiber Network Signals. From now on, you are able to access the Fiber Technology and transfer network signals over several kilometers without renewing your whole Network Infrastructure. The huge variety of Products fulfil your individual needs. The intiutive operation guarantees a quick and easy Installation. The Link Fault Pass Through function offers a no-fear-networking. Your Network Administrator will be able to find and solve Network problems easily. Years of Experience and a wide range of products lets DIGITUS become a reliable Partner for your Network.
| Product Condition | New |
|---|---|
| Manufacturer | Digitus |
| manufacturer code | DN-82020-1 |
| Ean | 4016032293095 |
| Modified on | 29-03-2013 |
| Product title | Digitus Fast Ethernet Media Converter, RJ45 / SC |
| Long Product Name | Fast Ethernet Media Converter, Multimode SC connector, 1310nm, up to 2km |
| Product specifications | NetworkMaximum data transfer rate* 100 Mbit/s Converter input interface 100Base-TX Converter output interface 100Base-FX Networking standards IEEE 802.3, IEEE 802.3u Ethernet interface type Fast Ethernet Ethernet LAN data rates 10,100 Mbit/s Auto MDI/MDI-X Yes Duplex system Full, Half Ports & interfacesConnectivity technology Wired Ethernet LAN (RJ-45) ports 1 Fiber ports quantity 1 Fiber optic connector* SC DC-in jack Yes PerformanceMaximum transfer distance* 2000 m Wavelength* 1310 nm Fiber mode structure Multi-mode Fiber cable diameters supported (core/cladding) 50/125,62.5/125 µm Tx power (min) -22 dBmW Tx power (max) -12 dBmW Rx power (min) -30 dBmW Buffer size 128 KB DesignInternal* No LED indicators Activity, Link, Status Product colour Black DesignCountry of origin China Certification FCC, CE. PowerInput voltage 5 V Input current 0.8 A Power consumption (typical) 2.5 W Power over Ethernet (PoE) No External power adapter Yes Weight & dimensionsWidth 95 mm Depth 70 mm Height 26 mm Weight 200 g Operational conditionsOperating temperature (T-T) 0 - 55 °C Packaging dataPackage width 216 mm Package depth 60 mm Package volume 2086.56 cm³ Package weight 485 g Logistics dataUK Trade Tariff code 85176200 Harmonized System (HS) code 85176990 Other featuresTransmission distance (max) 2 km |
| Essential qualities |
|
| Maximum data transfer rate | 100 Mbit/s |
| Maximum transfer distance | 2000 m |
| Wavelength | 1310 nm |
| Internal | No |
| Fiber optic connector | SC |
