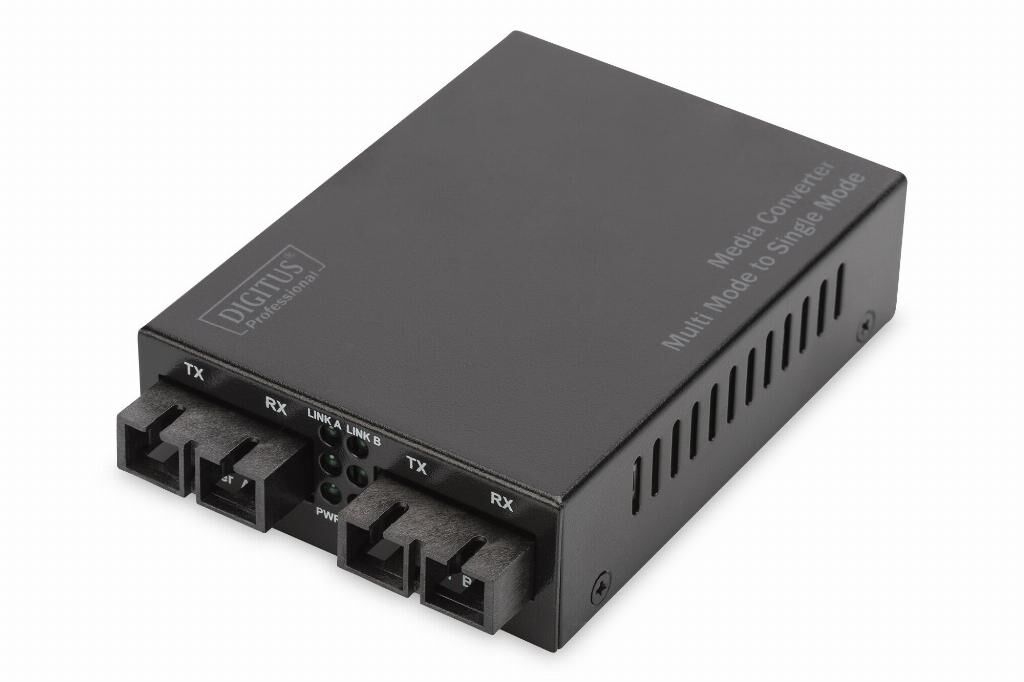

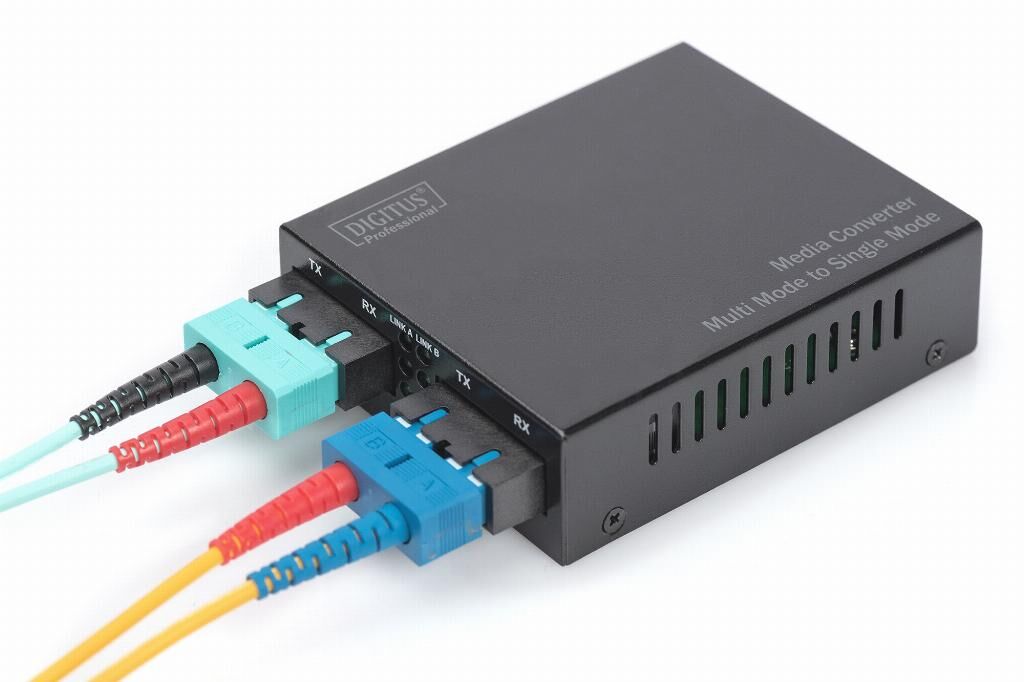

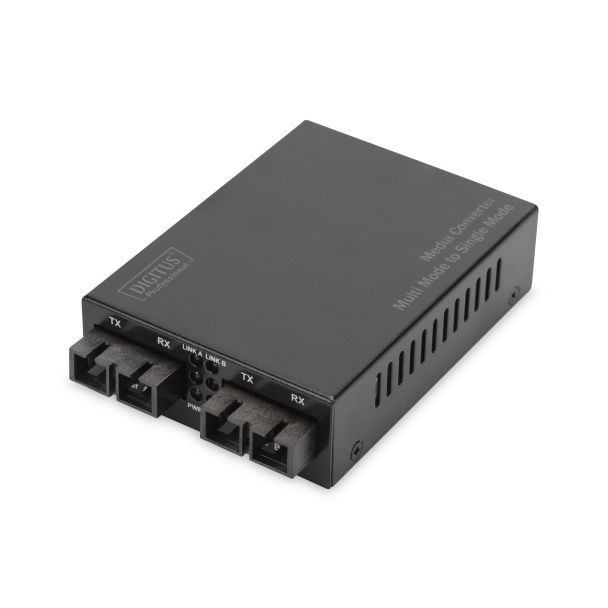

Digitus Fast Ethernet Multimode/Singlemode Media Converter SC/SC
GTIN: 4016032445739
Fast Ethernet Media Converter Multi- to Singlemode SC to SC, Wavelenth 1310nm
The perfect converter solution for optical data transmission
- Easy conversion between multimode and singlemode fiber optic
- Fast migration for long distances
- Range of up to 20km
The media converters from DIGITUS® are an optimal solution for the migration of fiber optic signals. From now on, you can access the fiber optic technology and transmit fiber optic signals over several kilometers without having to replace your entire network cabling. With our comprehensive range of products, you can respond to your individual needs. The intuitive operation guarantees a quick and easy installation. Many years of experience and a diverse range of services make DIGITUS® a reliable partner for your network technology.
| Product Condition | New |
|---|---|
| Manufacturer | Digitus |
| manufacturer code | DN-82024 |
| Ean | 4016032445739 |
| Modified on | 19-07-2018 |
| Product title | Digitus Fast Ethernet Multimode/Singlemode Media Converter SC/SC |
| Long Product Name | Fast Ethernet Media Converter Multi- to Singlemode SC to SC, Wavelenth 1310nm |
| Product specifications | NetworkMaximum data transfer rate* 100 Mbit/s Converter input interface 100BASE-FX Converter output interface 100Base-FX Ethernet interface type Fast Ethernet Ethernet LAN data rates 100 Mbit/s Fiber ethernet cabling technology 100BASE-FX Data transfer rate 100 Mbit/s Ports & interfacesConnectivity technology Wired Fiber ports quantity 2 Fiber optic connector* SC DC-in jack Yes PerformanceMaximum transfer distance* 20000 m Wavelength* 1310 nm Fiber mode structure Multi-mode, Single-mode Fiber cable diameters supported (core/cladding) 8.3/125,8.7/125,9/125,10/125,50/125,62.5/125,100/140 µm DesignInternal* No LED indicators Activity, Link, Power, Status Product colour Black Country of origin China PowerInput voltage 5 V Input current 1 A Power consumption (typical) 3.5 W Power over Ethernet (PoE) No PowerExternal power adapter Yes Weight & dimensionsWidth 95 mm Depth 70 mm Height 26 mm Weight 300 g Operational conditionsOperating temperature (T-T) -10 - 55 °C Packaging dataPackage width 130 mm Package depth 250 mm Package height 55 mm Package volume 1787.5 cm³ Package weight 350 g Packaging contentAC adapter included Yes Quick installation guide Yes Logistics dataUK Trade Tariff code 85176200 Harmonized System (HS) code 85176990 Master (outer) case width 394 mm Master (outer) case length 550 mm Master (outer) case height 254 mm Master (outer) case gross weight 7 kg Master (outer) case volume 55041.8 cm³ Products per master (outer) case 20 pc(s) |
| Essential qualities |
|
| Maximum data transfer rate | 100 Mbit/s |
| Maximum transfer distance | 20000 m |
| Wavelength | 1310 nm |
| Internal | No |
| Fiber optic connector | SC |
