Digitus FTTH enclosure with 4 x SC SX couplers
GTIN: 4016032466536
FTTH Outlet, with 4x SC (APC) SX adapter surface and DIN-rail mount
FTTX housing for fiber splices, terminations, storage and connections in a compact protective housing
- Ideal connection box for fiber optic cables in the area of FTTX / FTTH
- Suitable for 4 x SC SX or 4 x LC DX couplings (without flange) (4 x SC SX incl.)
- Suitable for wall installation and profile rail installation (DIN rail)
- Integrated splice cassette, hinged with cable routing
- Dust protection design with protection type IP45
- Integrated labeling field on the housing cover
- Suitable for fusion splicers or mechanical splicers
- Easy maintenance and expansion

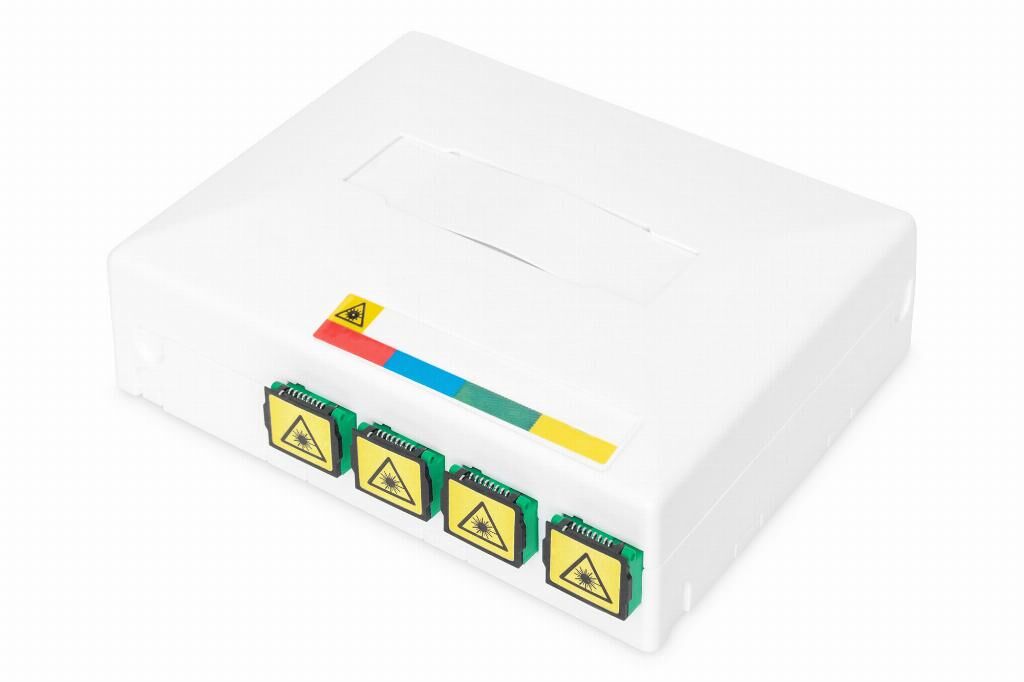

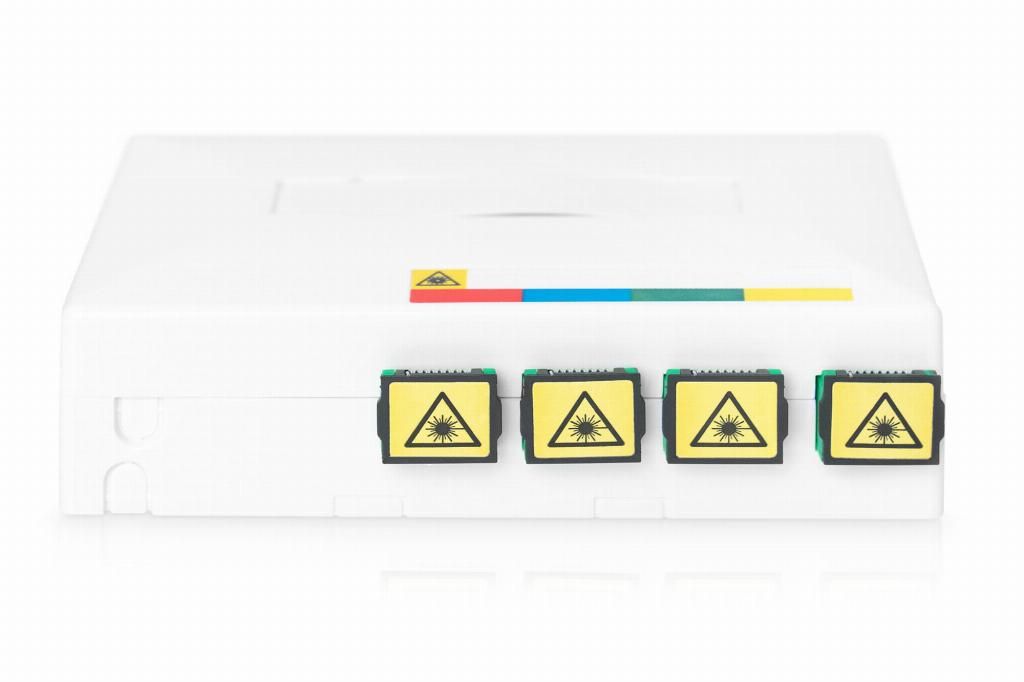

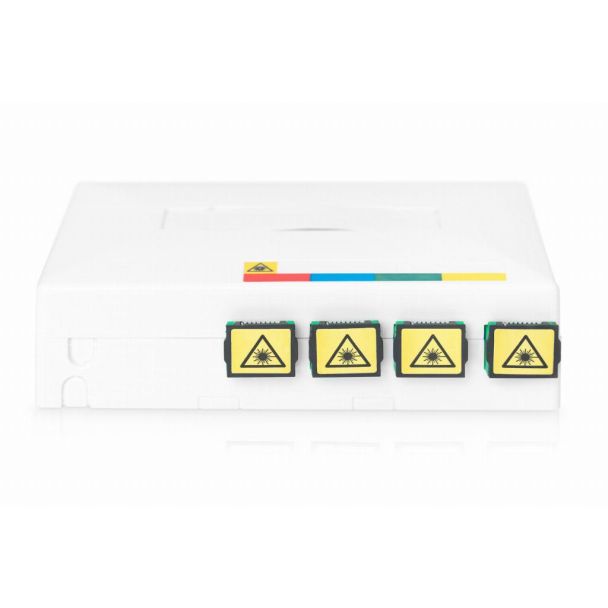

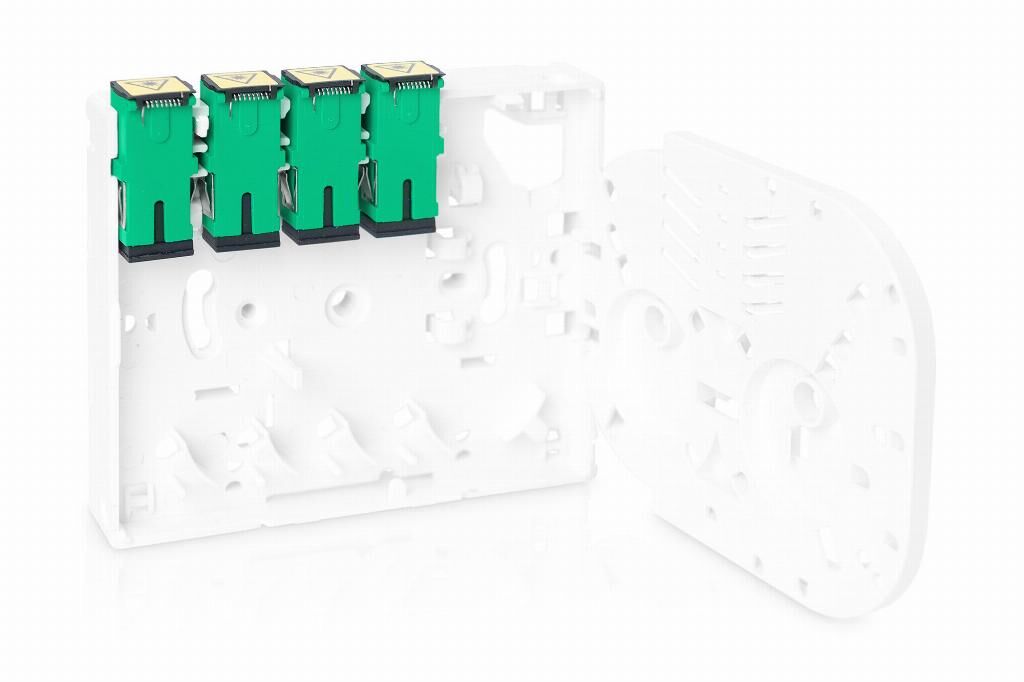

The FTTX housing can hold up to 4 fiber optic cables and distribute them to 4 end devices with the matching couplings. This housing is equipped with 4 x SC Simplex couplings; alternatively, 4 x LC Duplex couplings (without flange) can be inserted. The housing consists of a front panel, the housing with expandable splice cassette and a transparent plastic cover for additional protection of the spliced fiber optic cable. The box can be mounted on the wall or snapped onto a profile rail (DIN rail). Bring together fiber splices, terminations, storage and connections in a minimal space with the ultra-compact DIGITUS® FTTX.
| Product Condition | New |
|---|---|
| Manufacturer | Digitus |
| manufacturer code | DN-931094 |
| Ean | 4016032466536 |
| Modified on | 22-07-2020 |
| Product title | Digitus FTTX enclosure with 4 x SC SX couplers |
| Long Product Name | FTTH Outlet, with 4x SC (APC) SX adapter surface and DIN-rail mount |
| Product specifications | FeaturesNumber of splice trays supported (max)* 1 Number of fibres supported (max)* 4 DesignProduct colour White Wall mountable Yes International Protection (IP) code IP45 Weight & dimensionsWidth 80 mm Depth 30 mm Height 100 mm Weight 400 g |
| Essential qualities |
|
| Number of splice trays supported (max) | 1 |
| Number of fibres supported (max) | 4 |
