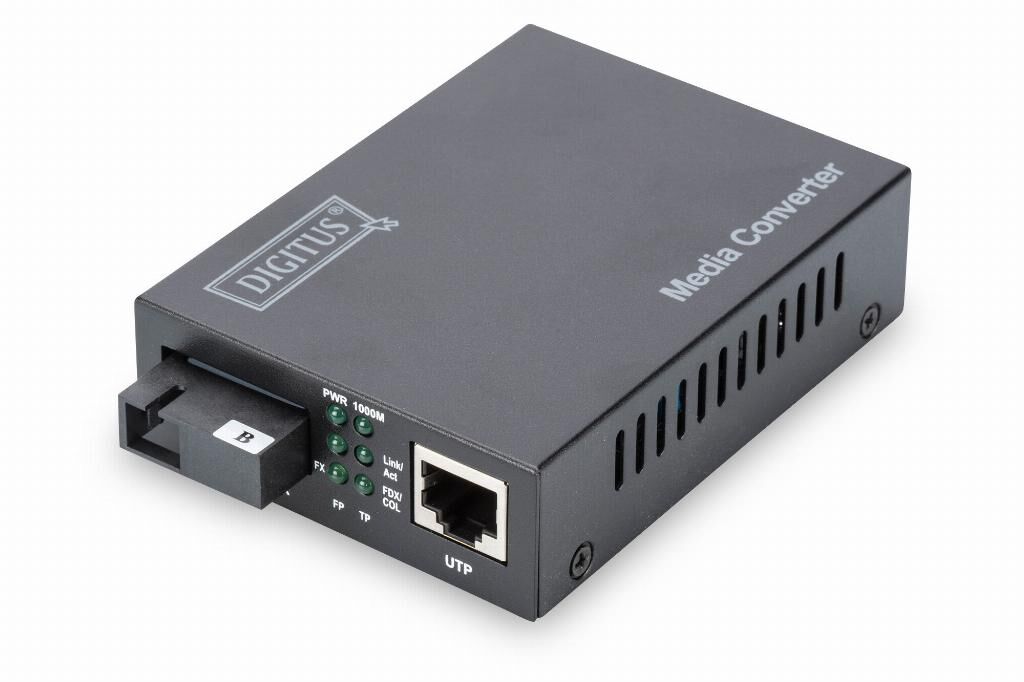

Digitus Gigabit Ethernet Media Converter, Singlemode, BiDi Tx1550nm / Rx1310nm, SC connector
GTIN: 4016032307976
Gigabit Ethernet Media Converter, Singlemode, BiDi Tx1550nm / Rx1310nm, SC connector, up to 20km
The perfect converter solution for various fiber media
- Distance up to 20km
- Sends data in high quality and additionally provides excellent reliability
- A quick delivery is guaranteed in the gigabit range
The media converters from DIGITUS® are the ideal solution for the migration of copper and fiber network signals. From now on, you are able to access the fiber technology and transfer network signals over several kilometers without renewing your whole network infrastructure. The huge variety of products fulfil your individual needs. The intiutive operation guarantees a quick and easy installation.
| Product Condition | New |
|---|---|
| Manufacturer | Digitus |
| manufacturer code | DN-82123 |
| Ean | 4016032307976 |
| Modified on | 24-07-2014 |
| Product title | Digitus Bidirectional Gigabit Media Converter, RJ45 / SC |
| Long Product Name | Gigabit Ethernet Media Converter, Singlemode, BiDi Tx1550nm / Rx1310nm, SC connector, up to 20km |
| Product specifications | NetworkMaximum data transfer rate* 1000 Mbit/s Converter input interface 10Base-T, 100Base-TX, 1000Base-TX Converter output interface 1000Base-LX Networking standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z Ethernet interface type Gigabit Ethernet Ethernet LAN data rates 10,100,1000 Mbit/s Copper ethernet cabling technology 10BASE-T, 100BASE-TX, 1000BASE-TX Fiber ethernet cabling technology 1000BASE‑LX Data transfer rate 1000 Mbit/s Auto MDI/MDI-X Yes Auto-negotiation Yes Duplex system Full, Half Link Loss Carry Forward (LLCF) supported Yes Link Loss Return (LLR) supported Yes Ports & interfacesConnectivity technology Wired Ethernet LAN (RJ-45) ports 1 Fiber ports quantity 1 Fiber optic connector* SC DC-in jack Yes PerformanceMaximum transfer distance* 20000 m Wavelength* 1550 nm Wavelength-division multiplexing (WDM) Yes Fiber mode structure Single-mode Fiber cable diameters supported (core/cladding) 9/125 µm Buffer size 2000 KB DesignInternal* No DesignLED indicators Link, Power, Status Product colour Black Country of origin China PowerOutput voltage 5 V Output current 0.8 A Power consumption (typical) 2.5 W Power over Ethernet (PoE) No External power adapter Yes Weight & dimensionsWidth 70 mm Depth 95 mm Height 26 mm Weight 200 g Operational conditionsOperating temperature (T-T) 0 - 60 °C Packaging dataPackage width 130 mm Package depth 55 mm Package volume 1716 cm³ Package weight 450 g Package type Box Packaging contentAC adapter included Yes Quick installation guide Yes Logistics dataUK Trade Tariff code 85176200 Harmonized System (HS) code 85176990 |
| Essential qualities |
|
| Maximum data transfer rate | 1000 Mbit/s |
| Maximum transfer distance | 20000 m |
| Wavelength | 1550 nm |
| Internal | No |
| Fiber optic connector | SC |
