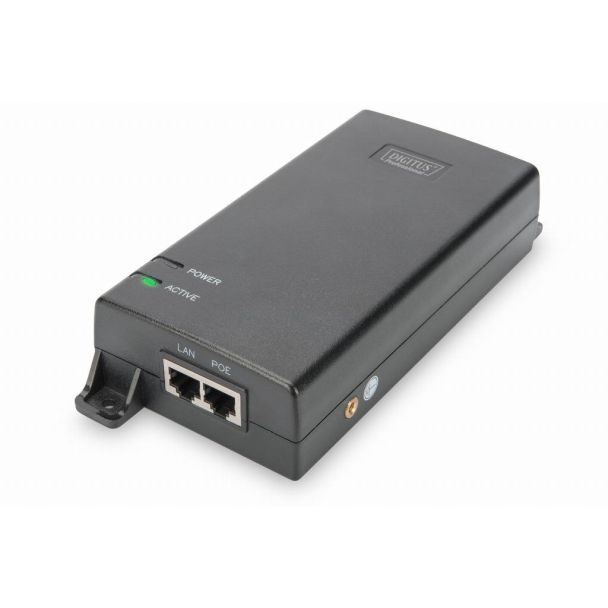

Digitus Gigabit Ethernet PoE Ultra Injector, 802.3af/at, 60 W
GTIN: 4016032375944
Gigabit Ethernet PoE+ Injector, 802.3at Power Pins:4/5(+),7/8(-) and 3/6(+), 1/2(-), 60W
Reduce cabling for Wireless APs, IP Phone and any PoE-ready device
- Complies with the 802.3at Ultra PoE and 802.3af PoE standards
- Easily merge of power and data cables into a single cable
- Extend your network to places where there are no power supply cables or sockets available
- no setup needed
- The output is equipped with a current limit, a short-circuit fuse, and automatic terminal device recognition and classification.

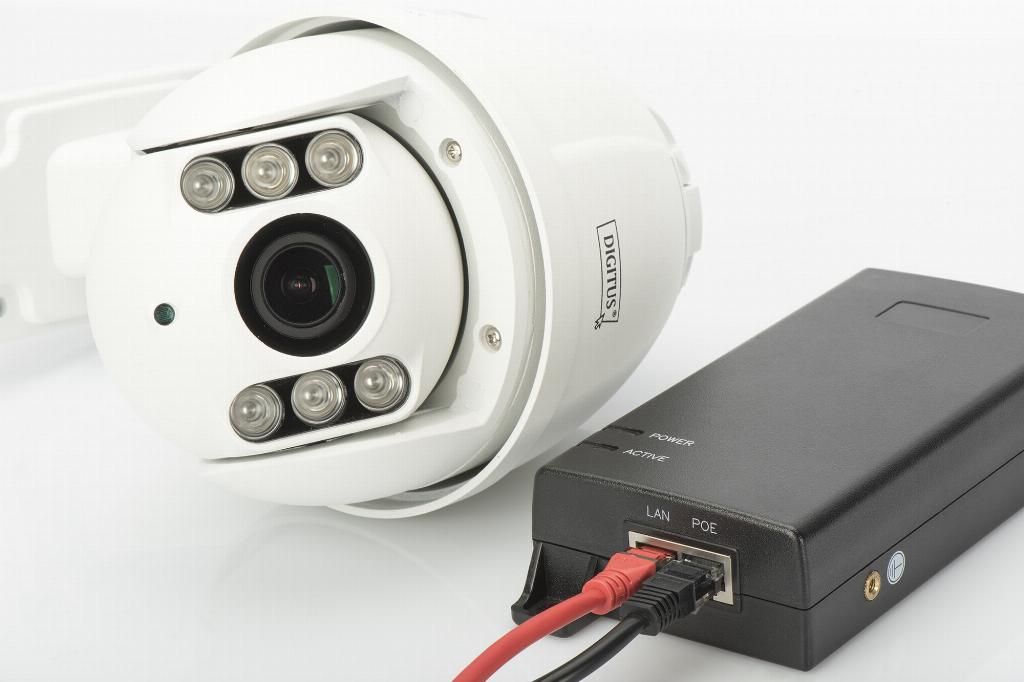

The Digitus PoE Injector allows you to minimize cabling during installation of PoE-ready devices such as IP network cameras. Data supply and power supply to the devices is accomplished using a single Ethernet cable. This makes laying a separate power cable unnecessary and allows you to extend your network to places where there are no outlets or power cables. The Injector is fully compliant with the IEEE802.3at Ultra PoE standard and delivers an output power of 60 W.
| Product Condition | New |
|---|---|
| Manufacturer | Digitus |
| manufacturer code | DN-95104 |
| Ean | 4016032375944 |
| Modified on | 17-01-2016 |
| Product title | Digitus Gigabit Ethernet PoE Ultra Injector, 802.3af/at, 60 W |
| Long Product Name | Gigabit Ethernet PoE+ Injector, 802.3at Power Pins:4/5(+),7/8(-) and 3/6(+), 1/2(-), 60W |
| Product specifications | NetworkEthernet interface type Gigabit Ethernet Ethernet LAN data rates 10,100,1000 Mbit/s Power over Ethernet (PoE) Yes Networking standards IEEE 802.3at FeaturesProduct colour Black Maximum operating distance 400 m LED indicators Yes Country of origin China Ports & interfacesEthernet LAN (RJ-45) ports 2 DC-in jack Yes PowerPower over Ethernet (PoE) voltage* 55 V Output power 60 W Power consumption (max) 10 W Total Power over Ethernet (PoE) budget 60 W Operational conditionsOperating temperature (T-T) -10 - 45 °C Weight & dimensionsWeight 380 g Dimensions (WxDxH) 193 x 85 x 41 mm Packaging dataPackage width 140 mm Package depth 210 mm Package weight 602.5 g Package volume 1470 cm³ Packaging contentNumber of products included 1 pc(s) Logistics dataUK Trade Tariff code 85176200 Harmonized System (HS) code 85044095 |
| Essential qualities |
|
| Ethernet LAN (RJ-45) ports | 2 |
| Power over Ethernet (PoE) voltage | 55 V |
