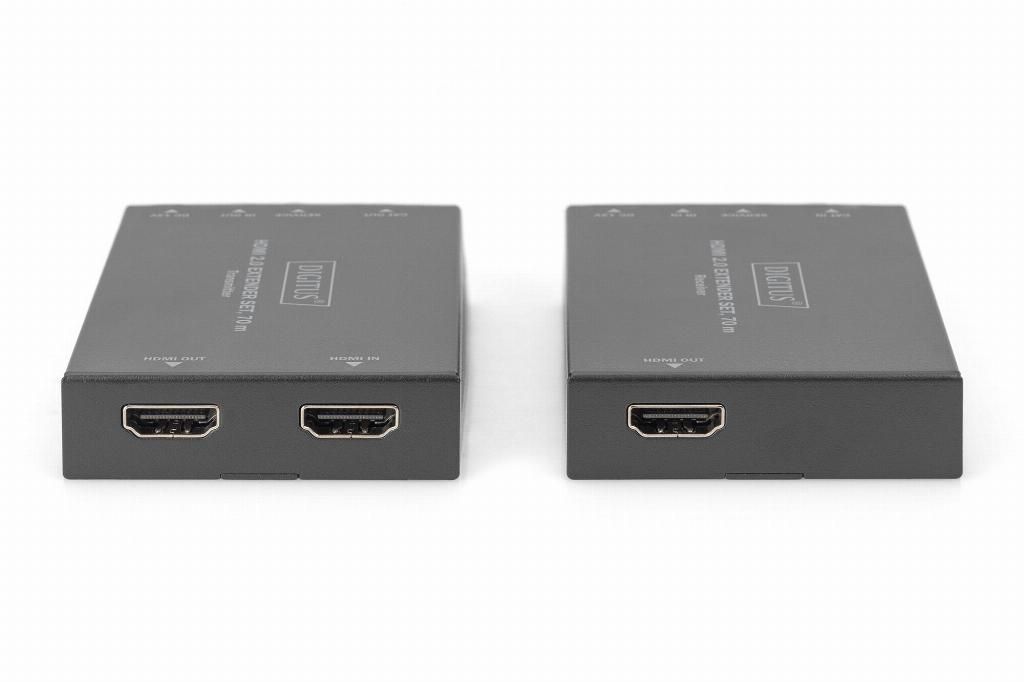

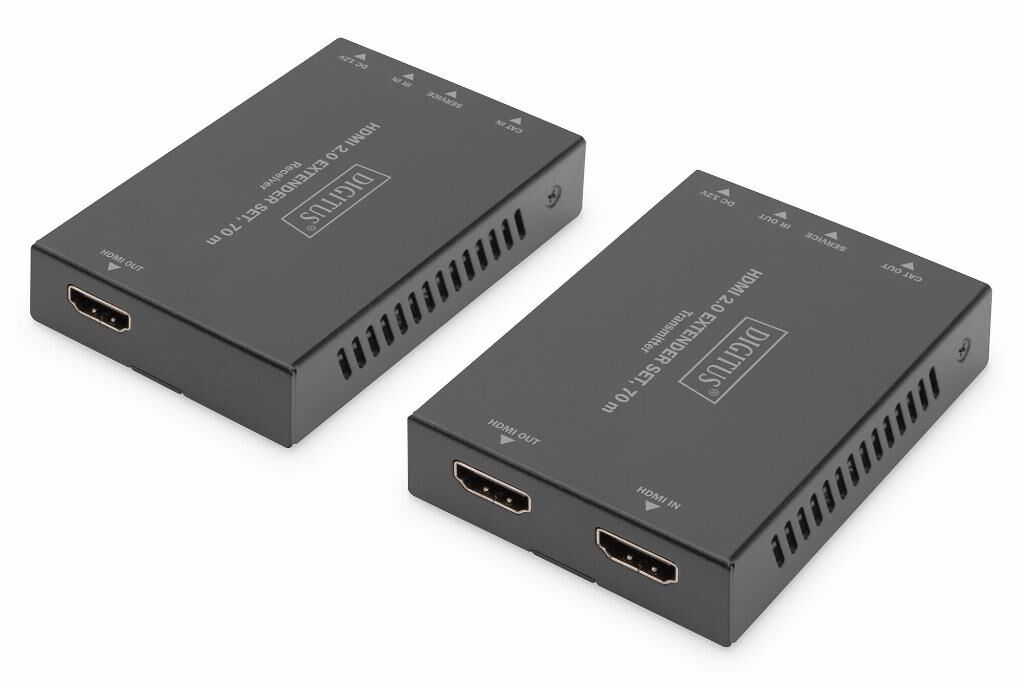

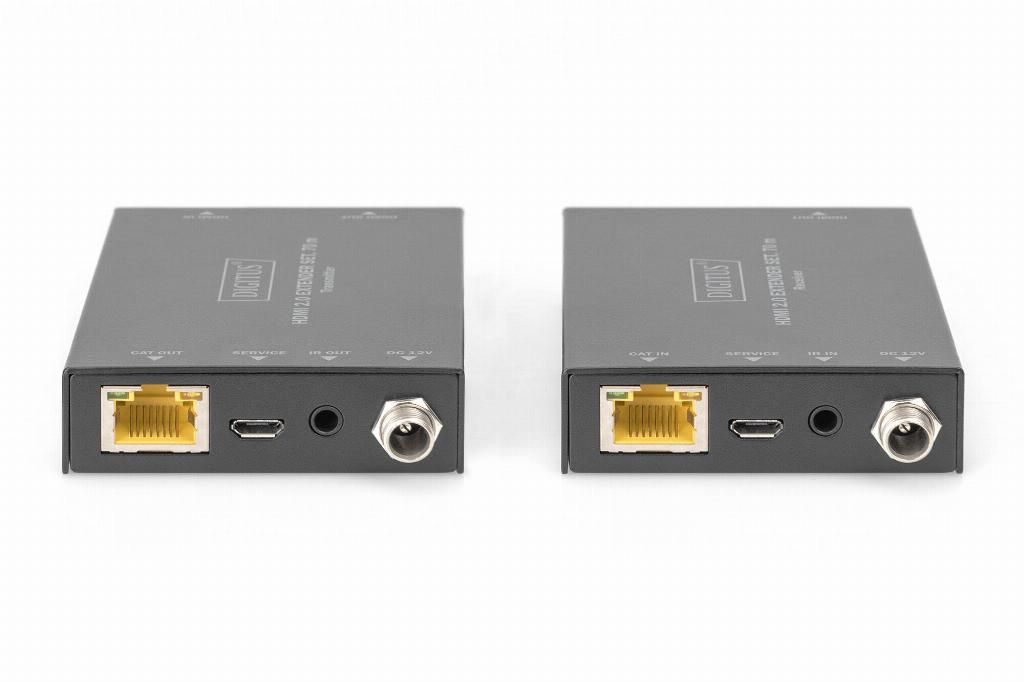

Digitus HDMI extender set, 4K/60Hz, 70 m
GTIN: 4016032478928
HDMI 2.0 Extender Set, 70 m 4K/60Hz, 18 Gbps, HDCP 2.2, HDR, PoC
Enables HDMI signal transmission over up to 70 m in UHD resolution (4K2K/60 Hz, 4:4:4) via a CAT cable
- HDMI 2.0
- 18 Gbps video bandwidth
- Supports 4K2K/60 Hz, 4:4:4
- HDCP 2.2 / 1.4
- Maximum transmission distance: 70 m
- PoC (Power over Cable) - only one unit requires an external power supply unit
- Automatic EDID detection
- HDR support
- HDMI loop-out / output - connection of a local monitor to the source device
- Supports Cat5e, CAT 6, CAT 6A, CAT 7, CAT 8 network cables
The DIGITUS HDMI Extender Set enables HDMI signal transmission over a distance of up to 70 m (4K/30Hz). The extender set supports UHD resolution (4K2K/60 Hz, 4:4:4, 18 Gbps) via a CAT 6/7/8 cable (60 m distance). Thanks to PoC, only one unit needs to be powered with an external power supply unit. HDR, HDCP support and automatic EDID detection are also part of the performance spectrum. A local monitor can be connected via the HDMI loop-out on the transmitter unit to monitor the output on the receiver.
| Product Condition | New |
|---|---|
| Manufacturer | Digitus |
| manufacturer code | DS-55506 |
| Ean | 4016032478928 |
| Modified on | 13-02-2022 |
| Product title | Digitus HDMI Extender Set, 4K/60Hz, 70 m |
| Long Product Name | HDMI 2.0 Extender Set, 70 m 4K/60Hz, 18 Gbps, HDCP 2.2, HDR, PoC |
| Product specifications | FeaturesType* AV transmitter & receiver Maximum resolution* 3840 x 2160 pixels Cable types supported Cat6, Cat6a, Cat7, Cat8 Maximum transfer distance 70 m EDID management Yes Bandwidth 18 Gbit/s HDCP Yes Material Metal Wall mountable Yes Plug and Play Yes HDCP version 2.2 Product colour Black Ports & interfacesConnectivity technology* Wired RJ-45 input ports 1 RJ-45 output ports 1 HDMI in 1 Number of HDMI outputs 2 HDMI version 2.0 USB ports quantity 2 USB version 2.0 USB connector type Micro-USB Remote (IR) input 1 Remote (IR) output 1 PowerOperating voltage 12 V Input current 1 A PowerPower consumption (typical) 3.84 W Power over Ethernet (PoE) No Operational conditionsOperating temperature (T-T) 0 - 40 °C Weight & dimensionsWidth 61 mm Depth 88 mm Height 18 mm Weight 160 g Packaging dataQuantity per pack 1 pc(s) Package width 200 mm Package depth 113 mm Package height 75 mm Package weight 626.667 g Package type Box Packaging contentAC adapter included Yes Manual Yes Mounting brackets included Yes Mounting kit Yes Technical detailsCountry of origin China Package volume 1695 cm³ Logistics dataUK Trade Tariff code 85176200 |
| Essential qualities |
|
| Type | AV transmitter & receiver |
| Maximum resolution | 3840 x 2160 pixels |
| Connectivity technology | Wired |
