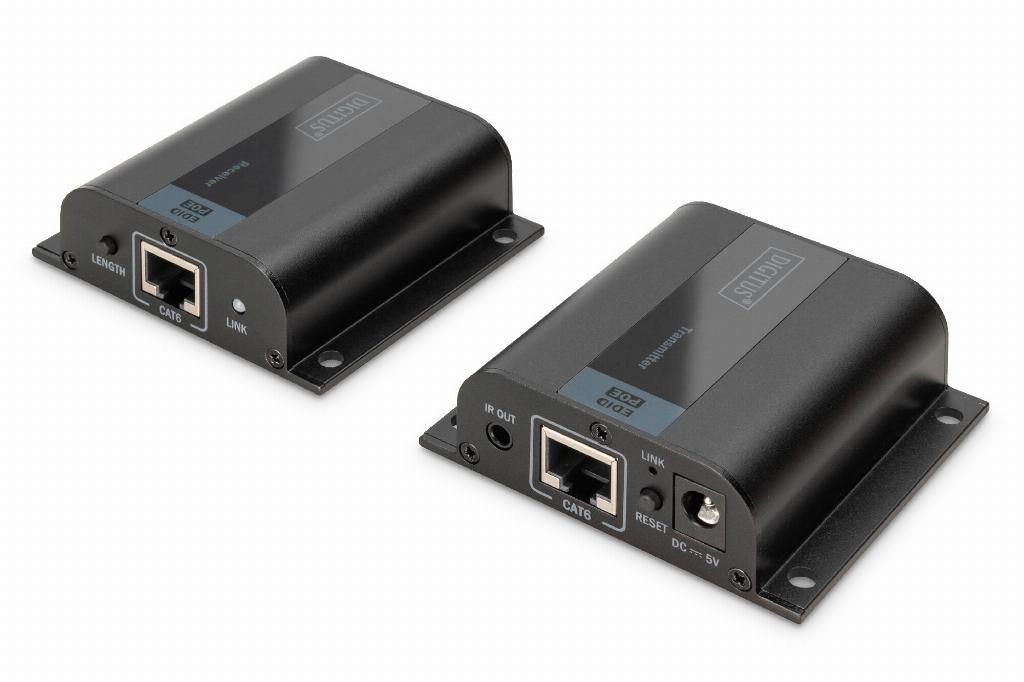

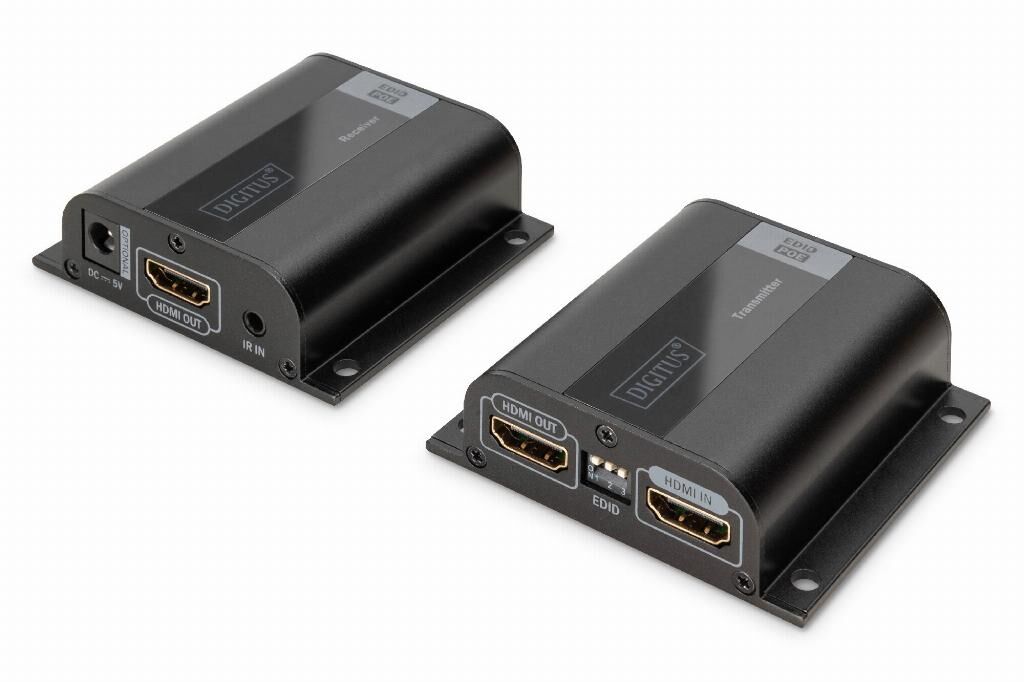

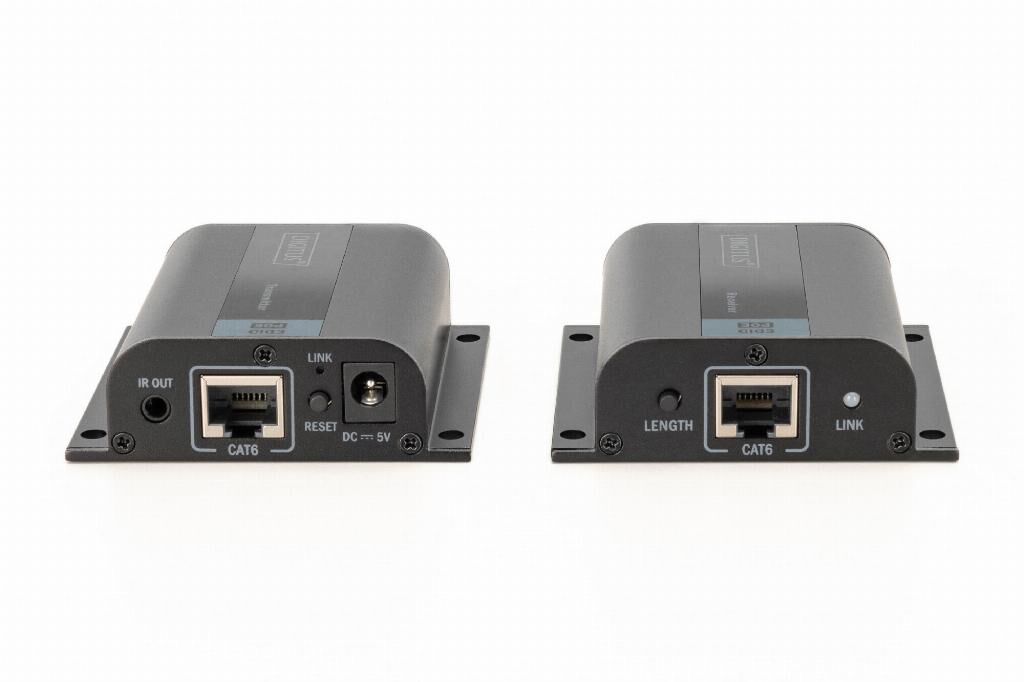

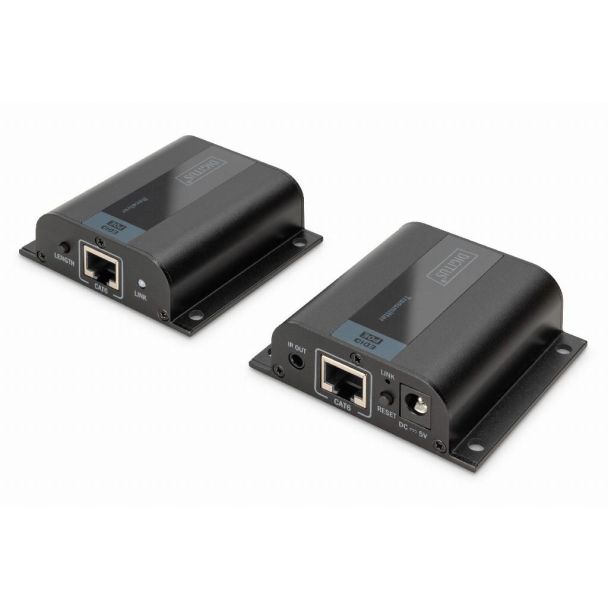

Digitus HDMI extender set, Full HD, 50 m
GTIN: 4016032439929
HDMI Extender Set, 50 m over network cable (CAT 6/6a/7), EDID, 1x HDMI loop out, FHD, 1080p
Extends the maximum length for HDMI cables to up to 50 m using only a single network cable between a transmitter and a receiver unit
- Extends the maximum length for HDMI cables to up to 50 m via a simple network cable
- Highest supported video resolution: 1080p / 60 Hz
- Supports CAT 6, CAT 6A and CAT 7 network cables
- Manual EDID switch - Allows you to set the resolution and audio format on the transmitter unit
- HDMI Loop Out - Enables the connection of a local monitor to the transmitter unit
- Supports PoE (Power over Ethernet) - therefore a power supply for the receiver unit is not required
The Digitus HDMI Extender Set, Full HD offers an extender solution up to 50 m for the highest demands. It transmits digital video and audio signals over a maximum length of up to 50 m. The highest supported video resolution is 1080p / 60Hz. There is an EDID switch on the transmitter unit with which the resolution and audio format of the output signal can be regulated. There is also an HDMI Loop Out port on the transmitter, which enables the connection of a local monitor. Thanks to PoC (Power over cable) support, only the transmitter unit needs to be supplied with power. Two bidirectional infrared units (transmitter, receiver) are supplied, which can be used for remote control of the connected input source.
| Product Condition | New |
|---|---|
| Manufacturer | Digitus |
| manufacturer code | DS-55100-1 |
| Ean | 4016032439929 |
| Modified on | 11-02-2018 |
| Product title | Digitus HDMI Extender Set, Full HD, 50 m |
| Long Product Name | HDMI Extender Set, 50 m over network cable (CAT 6/6a/7), EDID, 1x HDMI loop out, FHD, 1080p |
| Product specifications | FeaturesType* AV transmitter & receiver Maximum resolution* 1920 x 1080 pixels Cable types supported Cat6, Cat6a, Cat7 Maximum transfer distance 50 m Maximum refresh rate 60 Hz Supported video modes 1080p Bandwidth 4.95 Gbit/s HDCP Yes Material Metal Colour depth 8 bit HDCP & EDID bypass Yes Product colour Black Ports & interfacesConnectivity technology* Wired RJ-45 input ports 1 RJ-45 output ports 1 HDMI in 1 Number of HDMI outputs 2 Remote (IR) input 1 Remote (IR) output 1 DC-in jack Yes PowerPower over Ethernet (PoE) Yes Weight & dimensionsReceiver dimensions (WxDxH) 67 x 72 x 23 mm Transmitter dimensions (WxDxH) 67 x 72 x 23 mm Packaging dataPackage width 150 mm Package depth 200 mm Package height 80 mm Package weight 1.15 kg Packaging contentManual Yes IR blaster included Yes IR receiver included Yes Technical detailsCountry of origin China Package volume 2400 cm³ Logistics dataUK Trade Tariff code 85176200 Master (outer) case width 315 mm Master (outer) case length 425 mm Master (outer) case height 420 mm Master (outer) case gross weight 11.5 kg Master (outer) case volume 56227 cm³ |
| Essential qualities |
|
| Type | AV transmitter & receiver |
| Maximum resolution | 1920 x 1080 pixels |
| Connectivity technology | Wired |
