Digitus Hirose modular plugs TM31 for round cable, CAT 6A

Name: Digitus Hirose modular plugs TM31 for round cable, CAT 6A
Brand: Digitus
SKU: DIG-A-MO6A 8/8 HRS
Availability: OutOfStock

GTIN: 4016032272144

Out of stock

SKU

DIG-A-MO6A 8/8 HRS

€0.00 €0.00

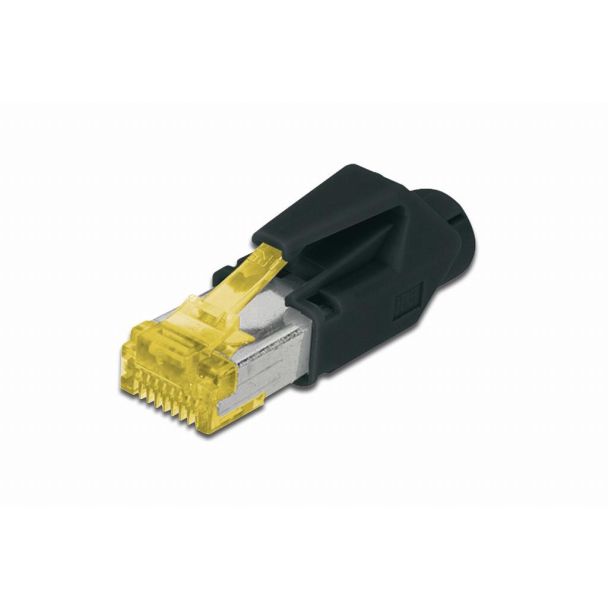

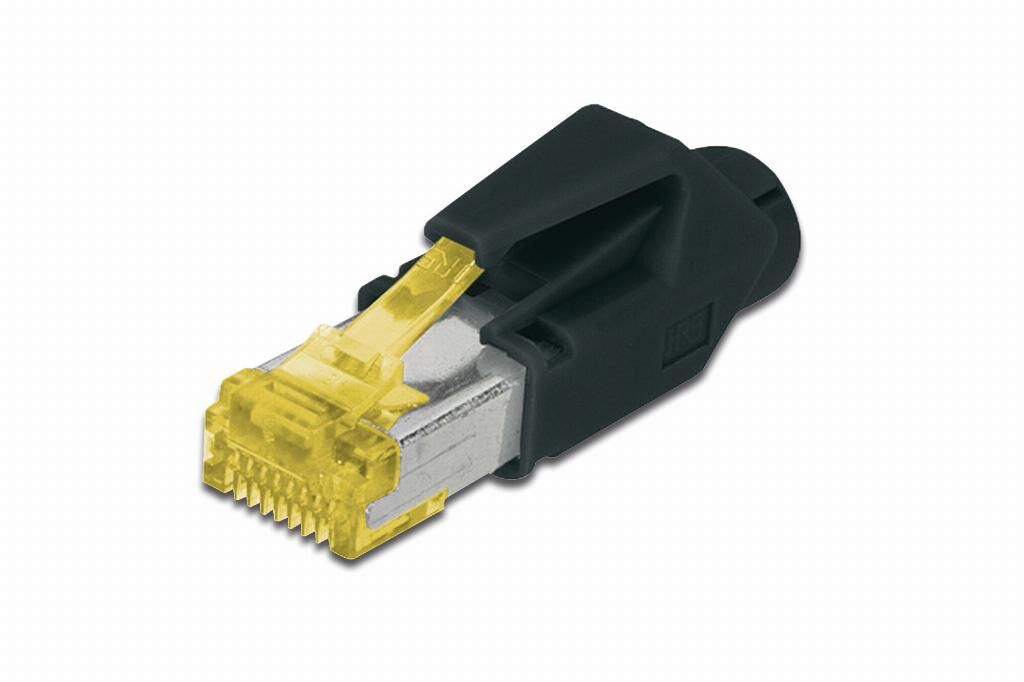

CAT 6A modular RJ45 Plug, Hirose TM31 8P8C, shielded, for round cable, incl. hood

These modular plugs can be used to establish quick and simple connections.

More Information
Product Condition	New
Manufacturer	Digitus
manufacturer code	A-MO6A 8/8 HRS
Ean	4016032272144
Modified on	05-11-2011
Product title	Digitus Hirose modular plugs TM31 for round cable, CAT 6A
Long Product Name	CAT 6A modular RJ45 Plug, Hirose TM31 8P8C, shielded, for round cable, incl. hood
Product specifications	Features Connector(s)* RJ-45 Product colour* Black, Yellow Material Polycarbonate Connector contacts plating Gold Current 1 A Weight & dimensions Inner diameter 6 mm Operational conditions Operating temperature (T-T) -20 - 60 °C Technical details Technology 8/8 Chassis type 8P8C Ports quantity 1 Connector material Phosphor bronze Packaging content Quantity per pack* 1 pc(s) Logistics data Country of origin Germany
Essential qualities	Layout performance: CAT 6A, 10GBase-T Area of application: Patch cable assembly General properties: Fully shielded with strain relief for installation cables Incl. comb Technical properties: Mating cycles: ≥ 750 (ISO/IEC 11801, IEC 60603-7-5) Material connector body: Polycarbonat, clear Connector contact: Phosphor bronze, brass 0.8 μ gold-plated Material shielding housing: Brass 0.5 mm, 2 μ nickel-plated Flammability: UL 94V-2 Physical properties: Insertion force: 30N max. (IEC 60603-7-5) Diameter Cu-Conductor: AWG (27/7 ... 24/7) Operating temperature: -20 °C to +60 °C Current carrying capacity: 1A at 50 °C Diameter outer jacket: 5,5 ... 6,2mm
