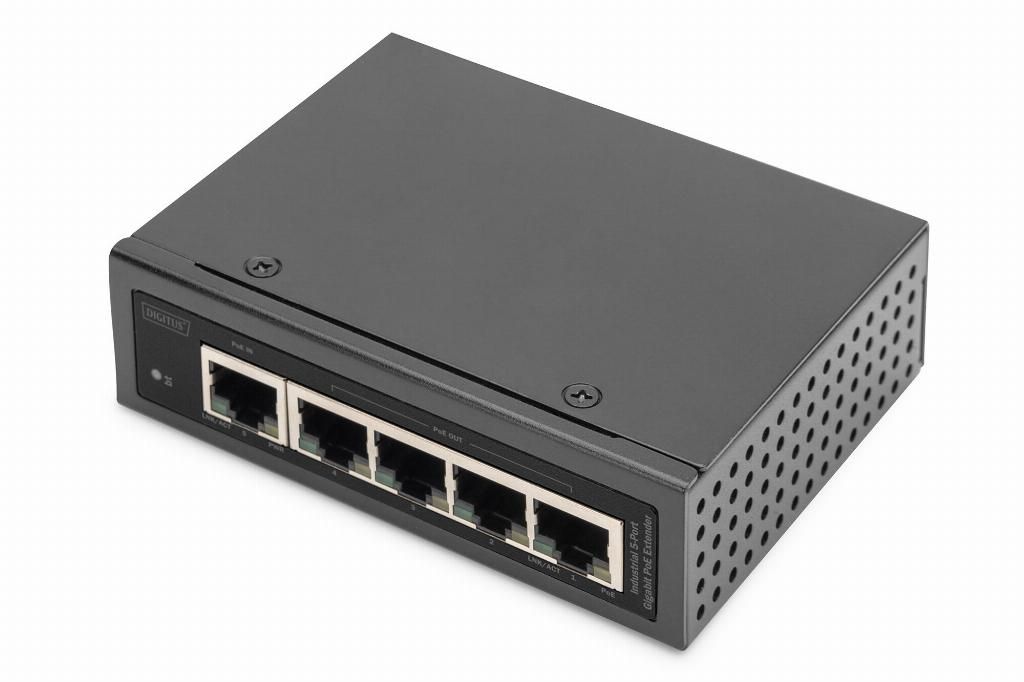

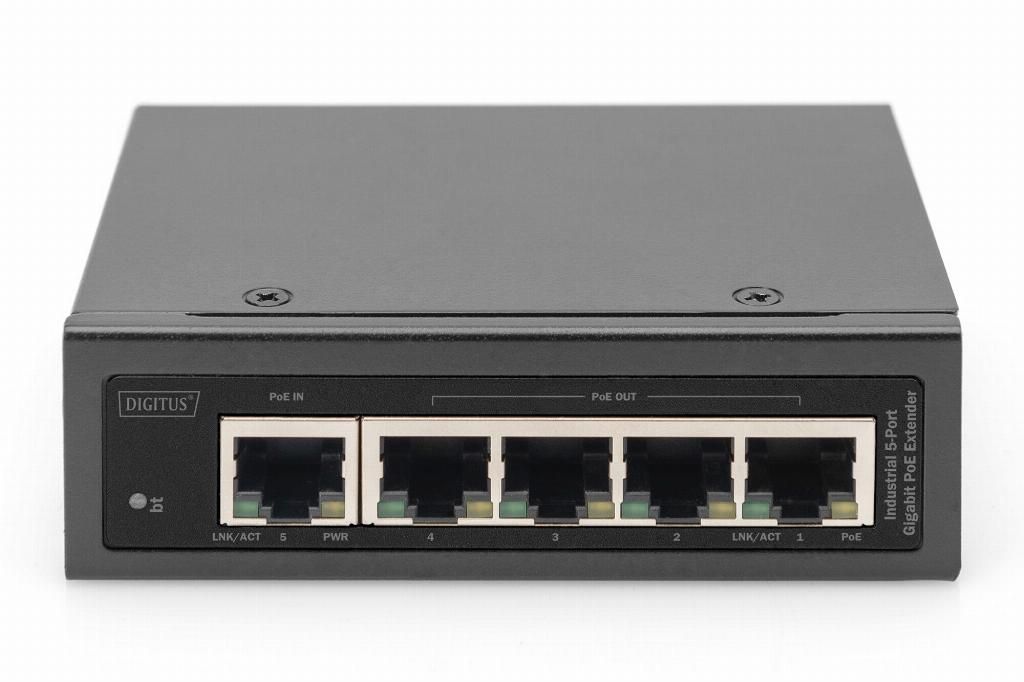

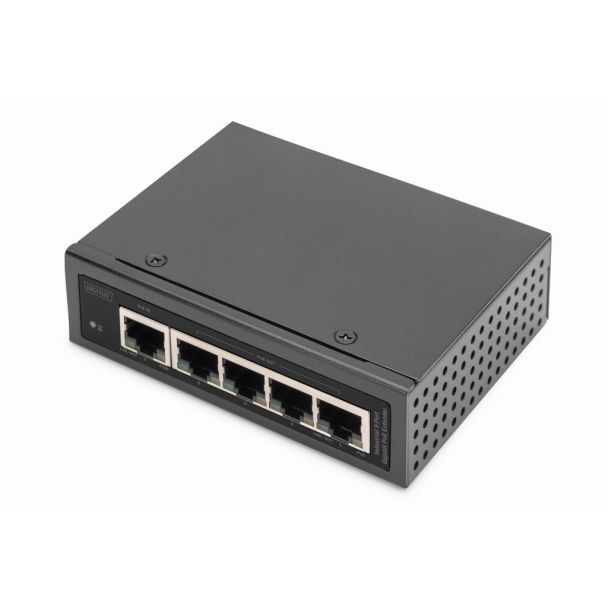

Digitus Industrial 5-Port Gigabit PoE Extender
GTIN: 4016032486831
Industrial 5-Port Gigabit PoE Extender 1-Port 802.3bt PoE to 4-port 802.3af/at
Industrial 5-Port Gigabit PoE Extender with 1-Port 802.3bt PoE to 4-port 802.3af/at Operating temp.: -40°C to +75°C
- 5-Port 10/100/1000BASE-T Gigabit RJ45 Interface
- Thunder, Lightning resistant
- Built-in hardened PoE and PD controller
- Can be cascaded up to 4 units or 500meters
- Works in extreme environment -40°C to +75°C
- Data Processing: Store and Forward
- Flow Control: IEEE 802.3x Flow Control and Back Pressure
- Jumbo Frame: 9KB
This PoE extender is equipped with 1 PD input to power up 4 Giga PSE output. It can be used as a standalone PD/PSE PoE injector or to extend PoE distance. It can be cascaded up to 4 units or 500 meters to deliver high power for your end device.
| Product Condition | New |
|---|---|
| Manufacturer | Digitus |
| manufacturer code | DN-651143 |
| Ean | 4016032486831 |
| Modified on | 13-05-2023 |
| Product title | Digitus Industrial 5-Port Gigabit PoE Extender |
| Long Product Name | Industrial 5-Port Gigabit PoE Extender 1-Port 802.3bt PoE to 4-port 802.3af/at |
| Product specifications | PerformanceType* Network transmitter & receiver Maximum transfer distance* 100 m Data transfer rate 10000 Mbit/s Cable types supported Cat5e Ethernet LAN data rates 10,100,1000 Mbit/s Overload protection Yes Jumbo frames support Yes Duplex system Full, Half MAC address table 2000 entries Flow control support Yes International Protection (IP) code IP30 NetworkCabling technology 10/100/1000Base-T(X) Networking standards IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x Ports & interfacesHost interface RJ-45 Ethernet LAN (RJ-45) ports 5 DesignProduct colour Grey Housing material Metal Mounting type Wall LED indicators Yes Quantity per pack 1 pc(s) Country of origin Taiwan PowerPower consumption (max) 90 W Power over Ethernet (PoE) No Total Power over Ethernet (PoE) budget 60 W Operational conditionsOperating temperature (T-T) -40 - 75 °C Storage temperature (T-T) 5 - 95 °C Operating temperature (transmitter) -40 - 85 °C Weight & dimensionsWidth 32 mm Depth 103.5 mm Height 81.5 mm Management featuresMDI / DMI-X automatic switchover Yes Packaging contentManual Yes Wall mounting kit Yes Packaging dataPackage width 211 mm Package depth 162 mm Package height 64 mm Package volume 2187.65 cm³ Package weight 54.375 g Logistics dataUK Trade Tariff code 85176200 |
| Essential qualities |
|
| Type | Network transmitter & receiver |
| Maximum transfer distance | 100 m |
