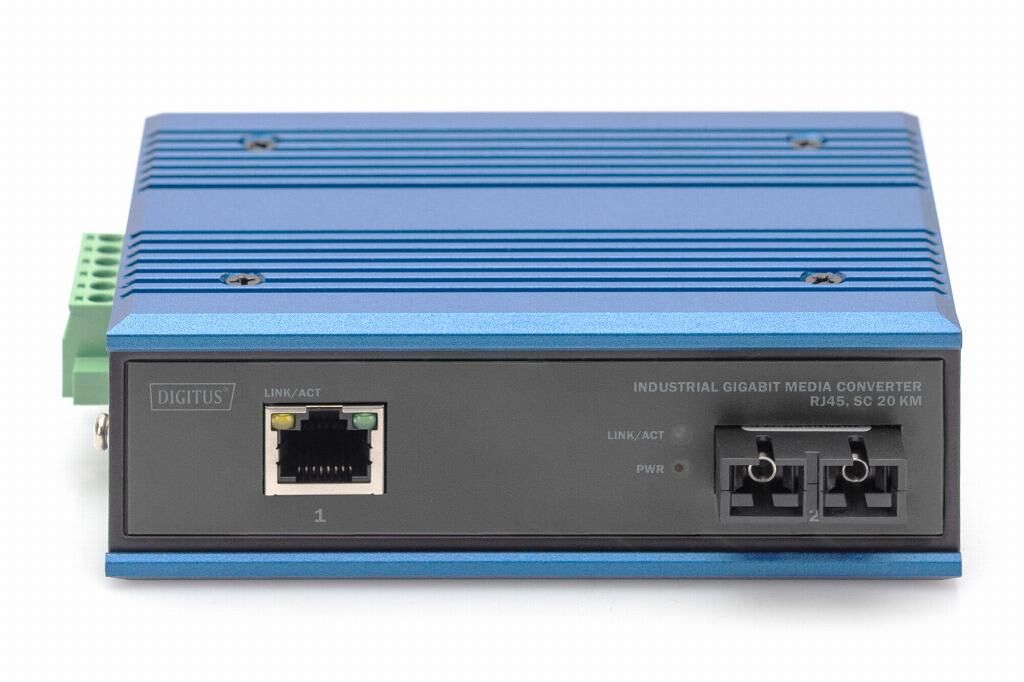

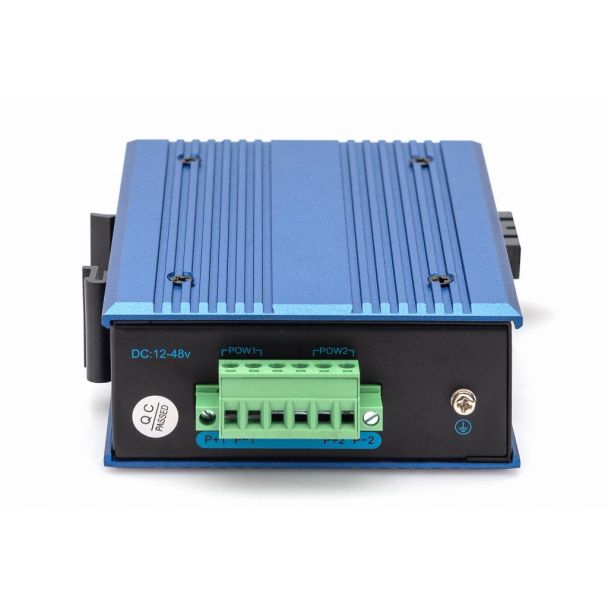

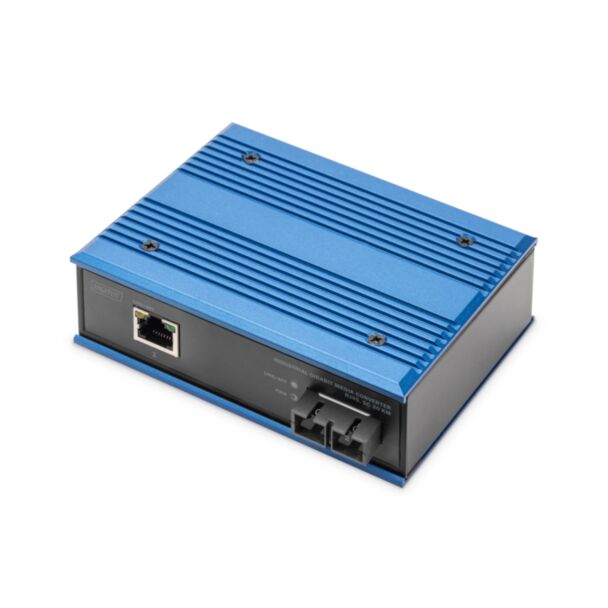

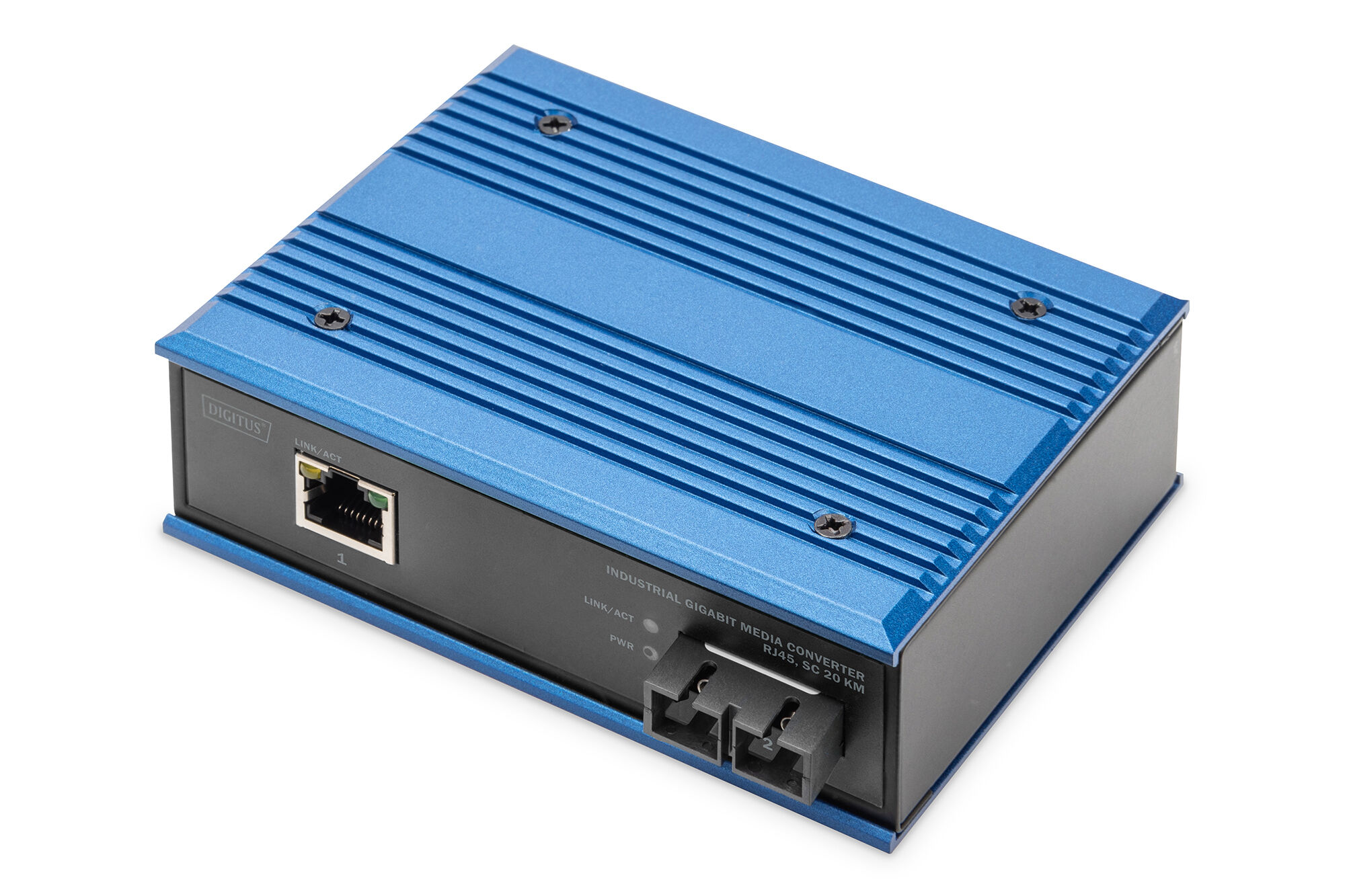

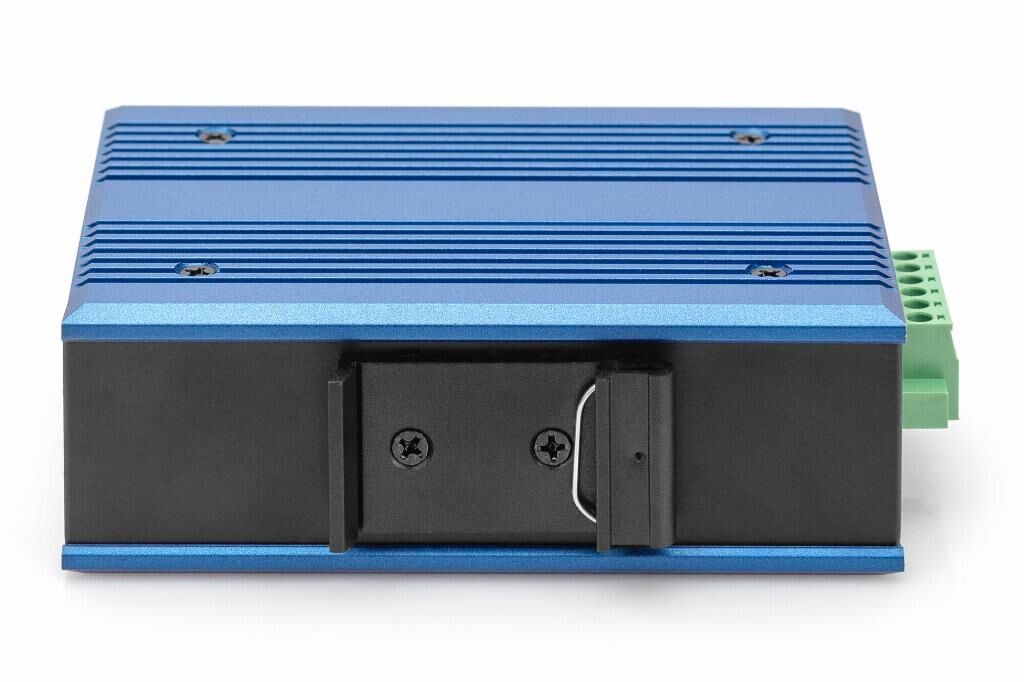

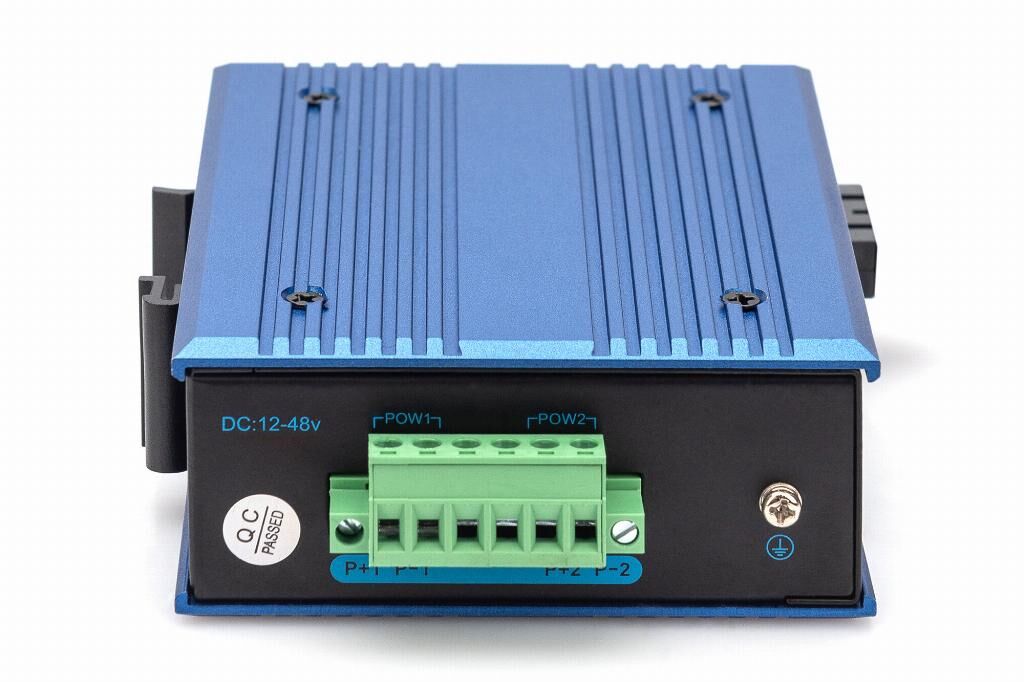

Digitus Industrial Gigabit Media Converter RJ45, SC 20 km
GTIN: 4016032488194
Industrial Gigabit Ethernet Media Converter, SM SC connector, 1310nm, up to 20 km
Industrial Gigabit media converter 10/100/1000BaseT to 1000Base-SX SC, singlemode 1310 nm up to 20 km, The perfect converter solution for optical data transmission
- Converts wire-based network signals into fiber optic signals
- High quality and maximum reliability
- 10/100/1000Base-TX to 1000Base-SX
- Connections: 1x RJ45, 1x SC Duplex
- Range up to 20 km
- Wavelength: 1310nm
- Singlemode fiber
- Automatic cable detection - Auto MDI / MDI-X function
- Diagnostic LEDs for status and activity monitoring
- Suitable for 9/125um fiber optic cable (singlemode)
- Compact, robust metal housing
- Excellent protection against short circuits
The media converters from DIGITUS® are an optimal solution for the migration of fiber optic signals. You can now access fiber optic technology and bridge several kilometers without having to replace your entire network cabling. With our extensive range of products, you can respond to your individual requirements. Intuitive operation guarantees quick and easy installation. Years of experience and a wide range of products make DIGITUS® a reliable partner for your network technology.
| Product Condition | New |
|---|---|
| Manufacturer | Digitus |
| manufacturer code | DN-652102-1 |
| Ean | 4016032488194 |
| Modified on | 11-08-2023 |
| Product title | Digitus Industrial Gigabit Media Converter RJ45, SC 20 km |
| Long Product Name | Industrial Gigabit Ethernet Media Converter, SM SC connector, 1310nm, up to 20km |
| Product specifications | NetworkMaximum data transfer rate* 1000 Mbit/s Converter input interface 10Base-T, 100Base-T, 1000Base-T Converter output interface 1000Base-SX Ethernet interface type Gigabit Ethernet Ethernet LAN data rates 10,1000,100 Mbit/s Copper ethernet cabling technology 10BASE-T, 1000BASE-T, 100BASE-T Fiber ethernet cabling technology 1000BASE‑SX Data transfer rate 1000 Mbit/s Auto MDI/MDI-X Yes Ports & interfacesConnectivity technology Wired Ethernet LAN (RJ-45) ports 1 Fiber ports quantity 2 Fiber optic connector* SC PerformanceMaximum transfer distance* 20000 m Wavelength* 1310 nm Fiber mode structure Single-mode Fiber cable diameters supported (core/cladding) 50/125,62.5/125,100/140 µm DesignInternal* No LED indicators Activity, Status Product colour Black, Blue Housing material Metal International Protection (IP) code IP40 DesignDIN rail mounting Yes Country of origin China PowerInput voltage 12 - 48 V Power consumption (typical) 3 W Power over Ethernet (PoE) No Management featuresDigital Diagnostics Monitoring (DDM) No Weight & dimensionsWidth 118 mm Depth 92.4 mm Height 40 mm Operational conditionsOperating temperature (T-T) -40 - 80 °C Packaging dataPackage width 135 mm Package depth 54 mm Package height 165 mm Package volume 1202.85 cm³ Package weight 558.333 g Packaging contentQuick installation guide Yes Logistics dataUK Trade Tariff code 85176200 |
| Essential qualities |
|
| Maximum data transfer rate | 1000 Mbit/s |
| Maximum transfer distance | 20000 m |
| Wavelength | 1310 nm |
| Internal | No |
| Fiber optic connector | SC |
