Digitus Industrial Gigabit PoE++ Splitter, 802.3bt
GTIN: 4016032441182
Industrial Gigabit PoE++ Splitter, 802.3bt selectable power output: 12VDC,16VDC,24VDC,48VDC
- Gigabit Splitter with up to 95W PoE feed
- Flexibly adjustable output voltage: 12VDC, 16VDC, 24VDC, 48VDC
- Gigabit data output for network connection

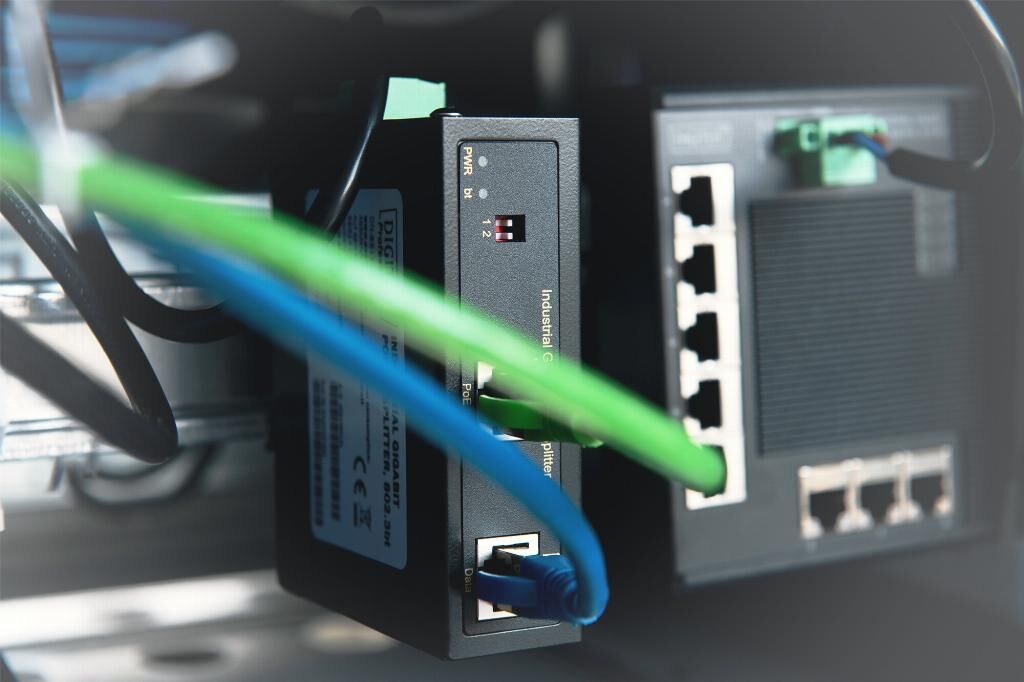

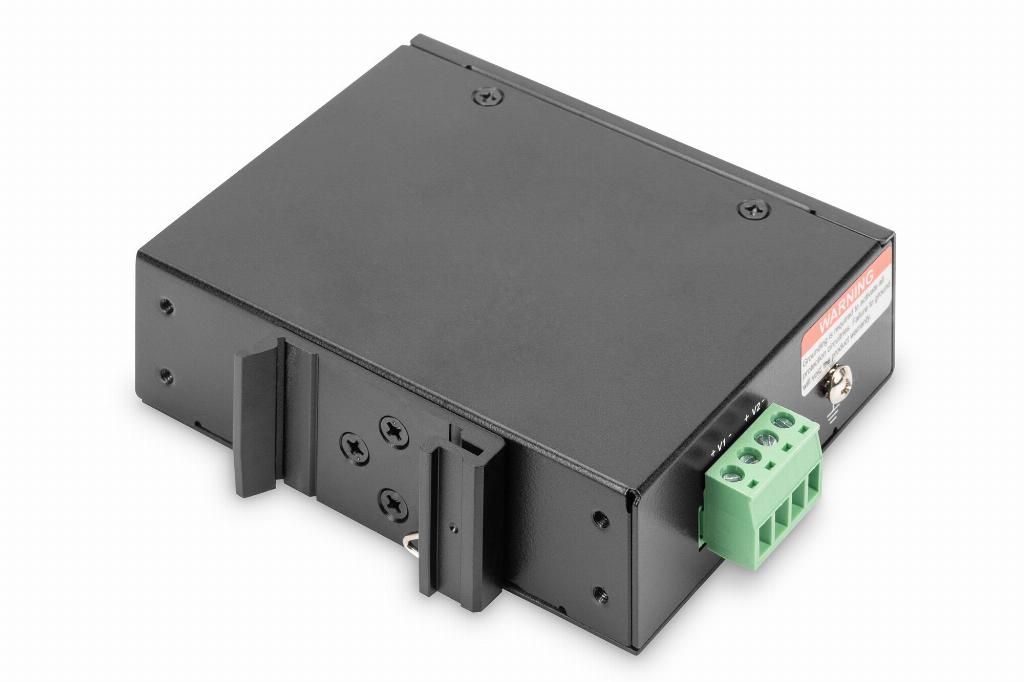

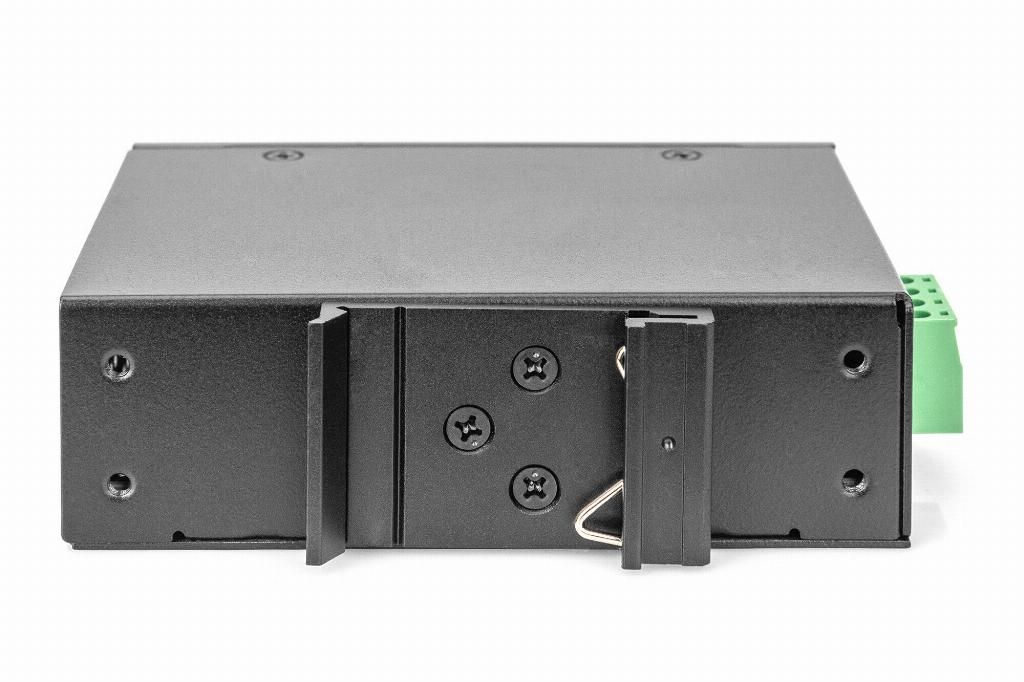

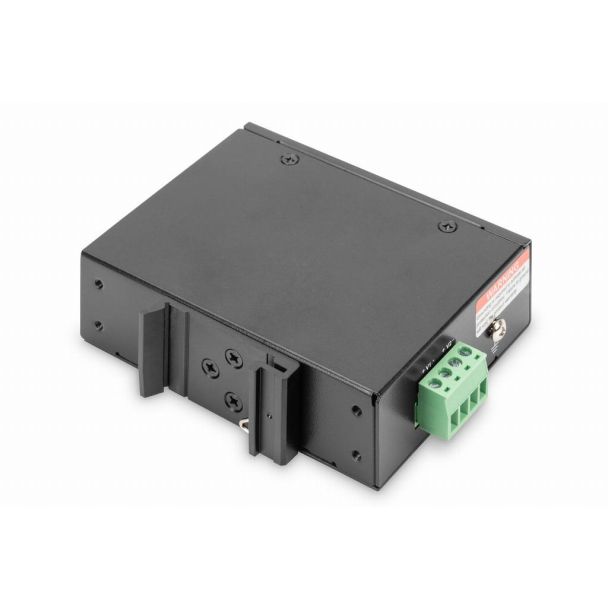

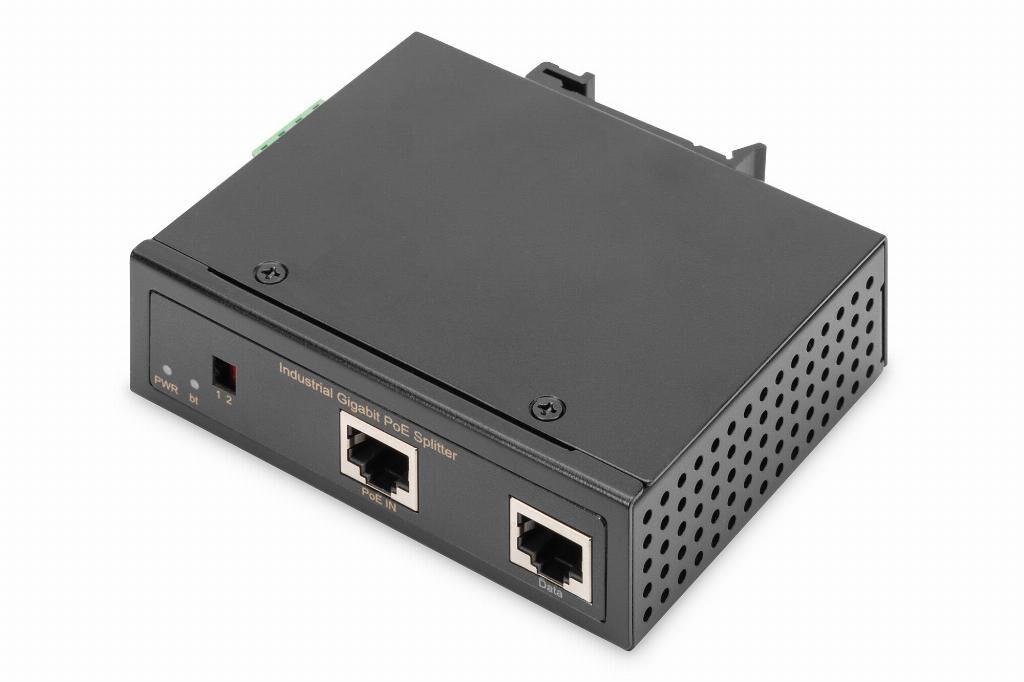

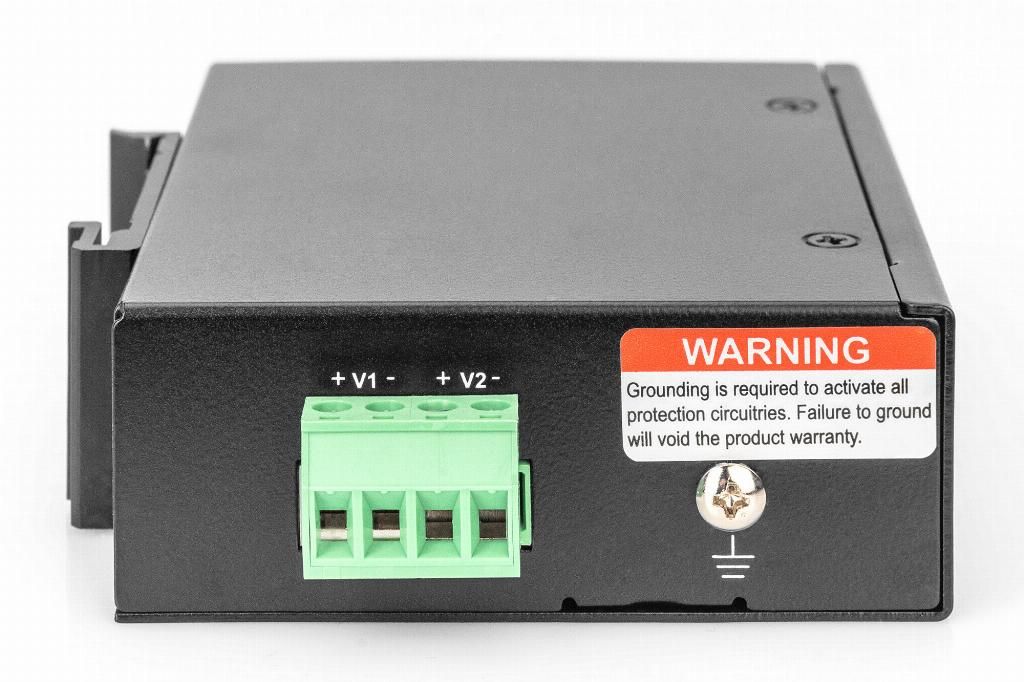

The DIGITUS® Industrial Gigabit PoE Splitter is designed for harsh environments, in which it is exposed to moisture, temperature variations and vibrations. With a temperature range of -40°C to 75°C, the Industrial Gigabit PoE Splitter can be used under the most adverse conditions. It ensures a constant availability in highly sensitive areas such as transport, production, traffic and safety monitoring. The simple plug-and-play system allows a fast integration of the Industrial Gigabit PoE Splitter into the respective environment. The DIGITUS® DN-651111 is an unmanaged Plug & Play Industrial Gigabit PoE Splitter in a rugged IP30 protected aluminum housing. The Gigabit connectivity, as well as the selectable voltage that can be provided for non-PoE compatible devices, make the Industrial Gigabit PoE Splitter a flexible, cost-effective solution for the industrial environment. The supply voltage can be selected in the range of 12VDC, 16VDC, 24VDC or 48VDC. The IEEE802.3bt standard allows PoE feed of up to 95W. Two parallel current outputs are provided for terminal devices.
| Product Condition | New |
|---|---|
| Manufacturer | Digitus |
| manufacturer code | DN-651111 |
| Ean | 4016032441182 |
| Modified on | 30-06-2018 |
| Product title | Digitus Industrial Gigabit PoE++ Splitter, 802.3bt |
| Long Product Name | Industrial Gigabit PoE++ Splitter, 802.3bt selectable power output: 12VDC,16VDC,24VDC,48VDC, |
| Product specifications | PerformanceNetworking standards IEEE 802.3bt Cabling technology 10/100/1000Base-T(X) Auto MDI/MDI-X Yes DesignProduct colour Black Housing material Metal International Protection (IP) code IP30 LED indicators Yes Plug and Play Yes Country of origin Taiwan Ports & interfacesRJ-45 input ports 1 RJ-45 output ports 1 PowerPower over Ethernet (PoE) No Output voltage 12 - 48 V Output power 55 W Operational conditionsOperating temperature (T-T) -40 - 75 °C Weight & dimensionsWidth 103.5 mm Depth 81.5 mm Height 32 mm Weight 150 g Package width 65 mm Package depth 215 mm Package height 65 mm Package weight 437.5 g Package volume 2305.88 cm³ Packaging contentQuick installation guide Yes Logistics dataUK Trade Tariff code 85176200 Master (outer) case width 560 mm Master (outer) case length 350 mm Master (outer) case height 240 mm Master (outer) case gross weight 7 kg Master (outer) case volume 47040 cm³ Products per master (outer) case 16 pc(s) |
