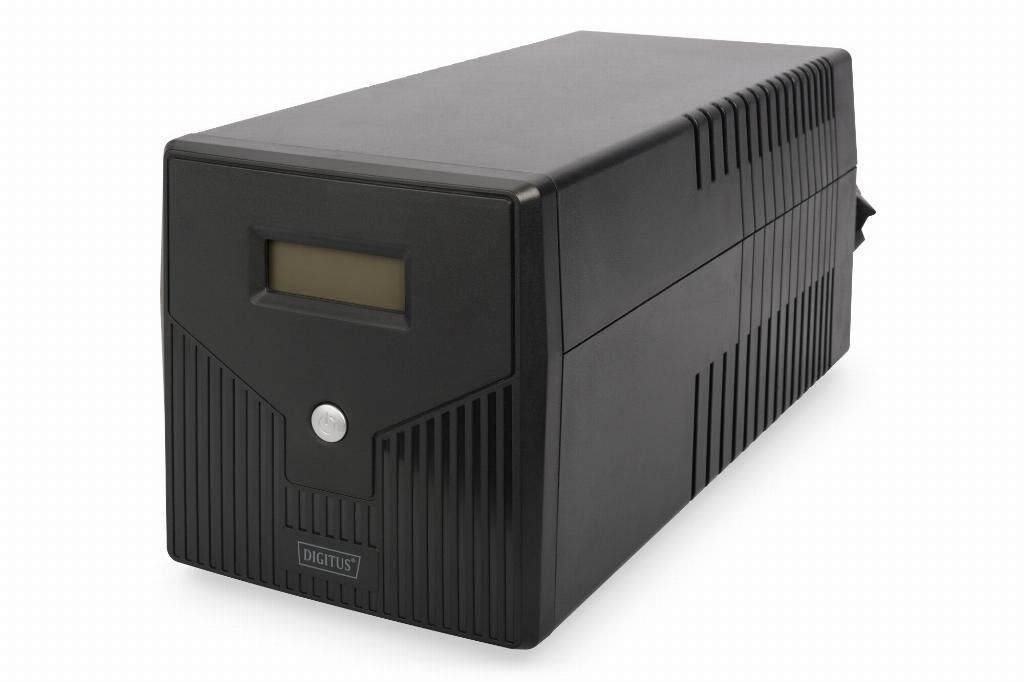

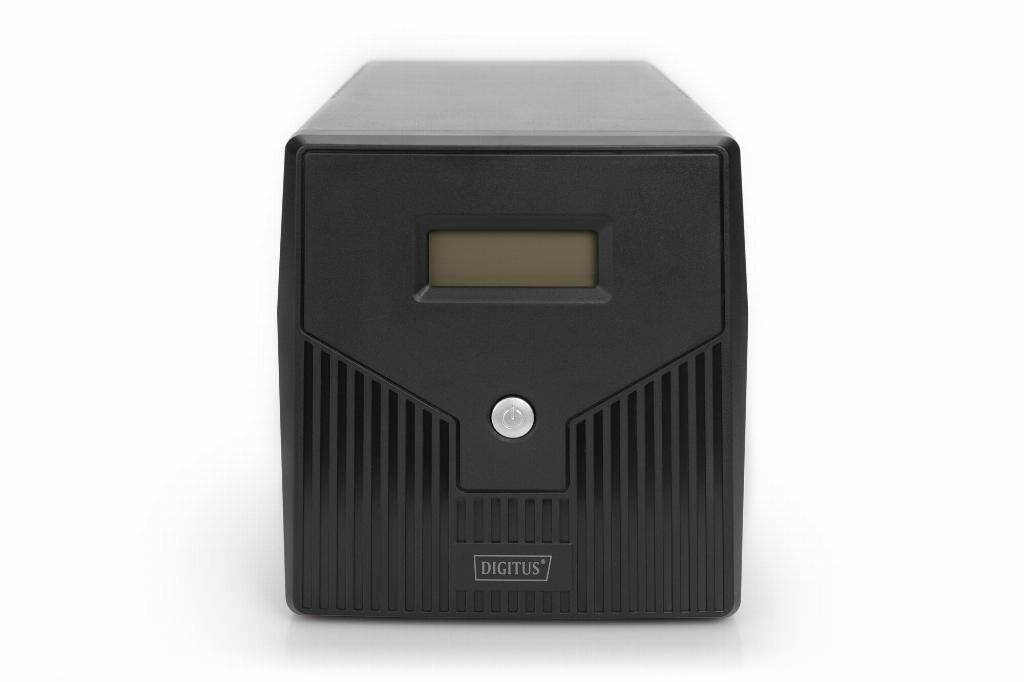

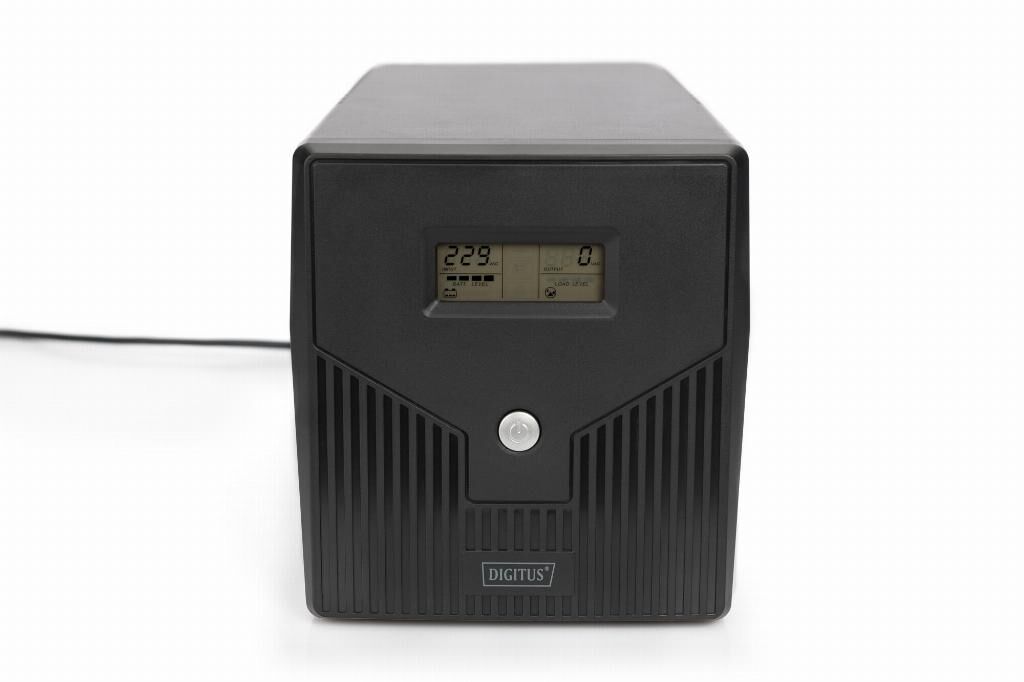

Digitus Line-interactive UPS, 1000 VA/600 W
GTIN: 4016032441366

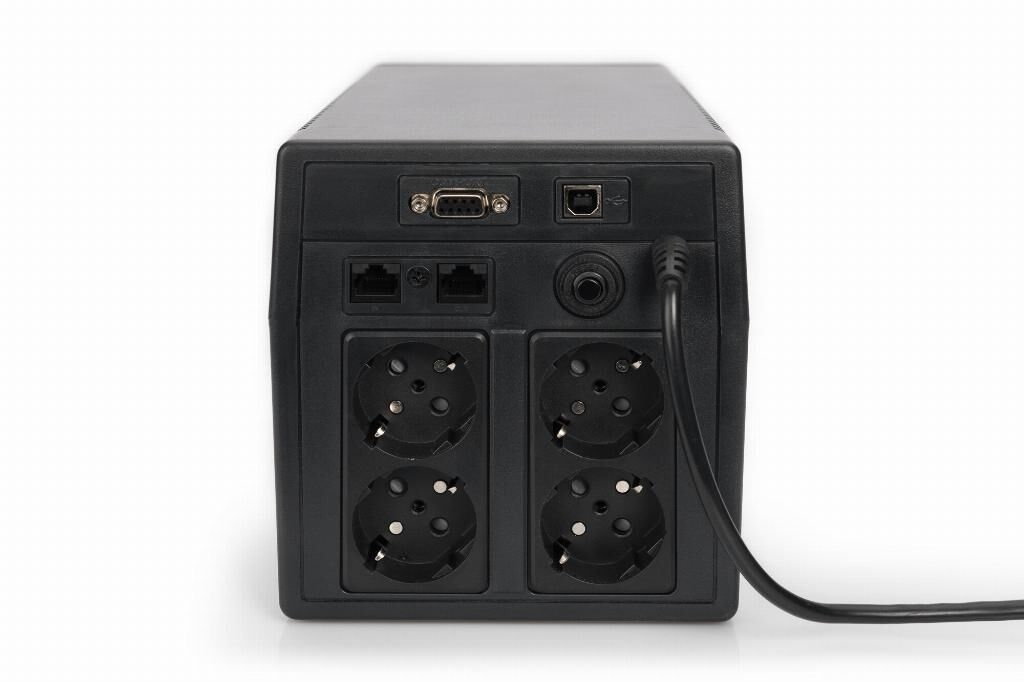

Line-Interactive UPS, 1000VA/600W 12V/7Ah x2 battery,4x CEE 7/7,USB,RS232,RJ45,LCD
Provides reliable protection against data loss and voltage damage in the office and home office
- Buck/boost converter to stabilize the voltage
- Fast bridging time in the event of power failures
- Compact housing for space-saving installation in your IT infrastructure
- Fast loading time
- Generates a low noise level of less than 40 dB
The DIGITUS® Line-Interactive UPS systems provide uninterruptible power supply in a compact size and with excellent microprocessor control, which guarantees high reliability. Protect your office or business equipment against data loss and damage caused by faults in the power grid or power failures. The UPS devices are easy to use and offer maximum performance and security. Features such as overload, discharge and overcharge protection, a cold start function and energy-saving properties as well as an acoustic alarm system are just some of the advantages of the DIGITUS® Line-Interactive UPS systems.
| Product Condition | New |
|---|---|
| Manufacturer | Digitus |
| manufacturer code | DN-170074 |
| Ean | 4016032441366 |
| Modified on | 31-08-2018 |
| Product title | Digitus Line-Interactive UPS, 1000 VA/600 W |
| Long Product Name | Line-Interactive UPS, 1000VA/600W 12V/7Ah x2 battery,4x CEE 7/7,USB,RS232,RJ45,LCD |
| Product specifications | FeaturesUPS topology* Line-Interactive Output power capacity* 0.6 kVA Output power* 600 W Waveform* Pseudo sine Input operation voltage (min)* 162 V Input operation voltage (max)* 290 V Input frequency* 50 Hz Output frequency 50 Hz Output voltage regulation 10% Automatic Voltage Regulation (AVR) Yes Transfer time (Line Mode to Battery Mode) 2 ms Number of input phases 1 Number of output phases 1 Power factor 0.6 Noise level 40 dB Surge protection Yes Surge protection features Digital Subscriber Line (DSL), Modem, Network Power protection features Battery discharge, Overcharge, Overload Audible alarm(s) Yes Audible alarm modes Alarm when on battery, Fault, Low battery alarm, Overload alarm Auto-restart Yes Country of origin China Ports & interfacesPower plug Type F AC outlets quantity 4 AC outlet(s) USB port Yes USB 2.0 ports quantity 1 USB port type USB Type-B Serial interface Yes Serial interface type RS-232 Serial ports quantity 1 RS-232 ports 1 Ethernet LAN (RJ-45) ports 2 BatteryBattery capacity 7 Ah Battery voltage 12 V Number of batteries supported 2 Battery recharge time (90%) 6 h Cold start Yes DesignForm factor* Tower Product colour* Black Display type LCD LED indicators Yes Operational conditionsOperating temperature (T-T) 0 - 40 °C Operating relative humidity (H-H) 0 - 95% Weight & dimensionsWidth 150 mm Depth 338 mm Height 162 mm Weight 7.8 kg Package width 235 mm Package depth 405 mm Package height 192 mm Package weight 8.1 kg Packaging dataPackage volume 18273.6 cm³ Logistics dataUK Trade Tariff code 85044085 Harmonized System (HS) code 85078000 Other featuresOutput connections 4 x CEE 7/7 Nominal output voltage 230 V Nominal input voltage 230 V |
| Essential qualities |
|
| UPS topology | Line-Interactive |
| Output power capacity | 0.6 kVA |
| Output power | 600 W |
| Waveform | Pseudo sine |
| Input operation voltage (min) | 162 V |
| Input operation voltage (max) | 290 V |
| Input frequency | 50 Hz |
| Form factor | Desktop |
| Product colour | Black |
