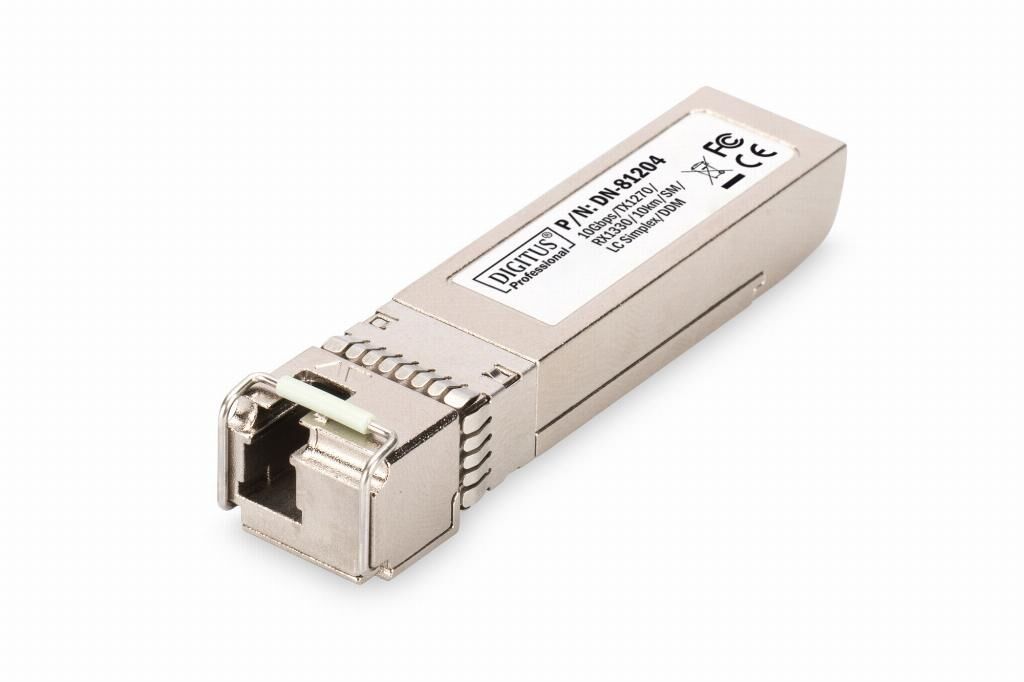

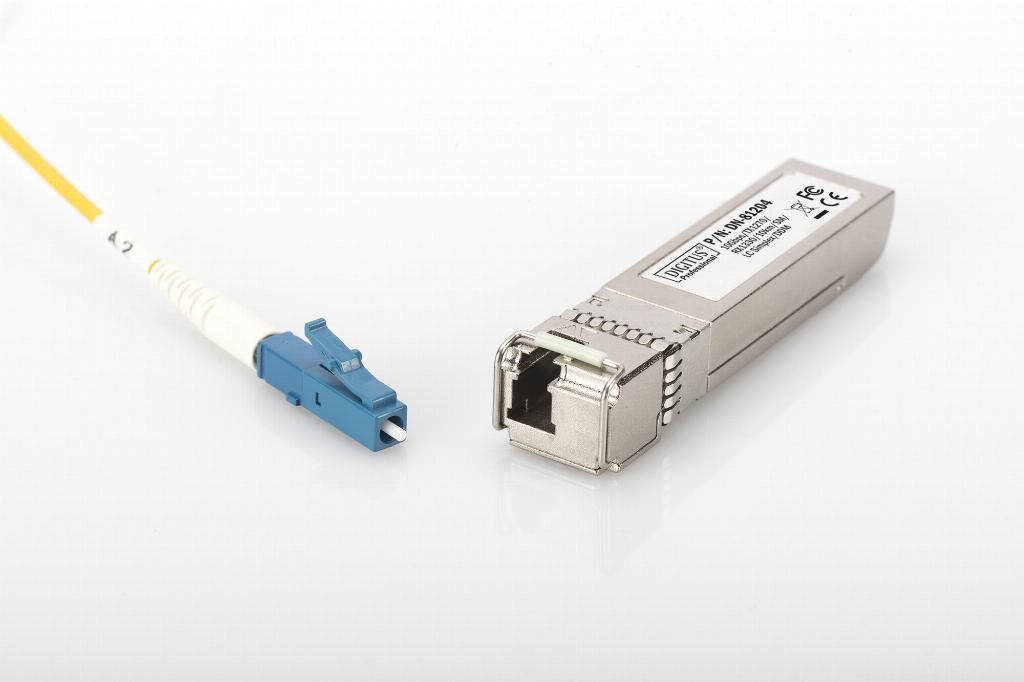

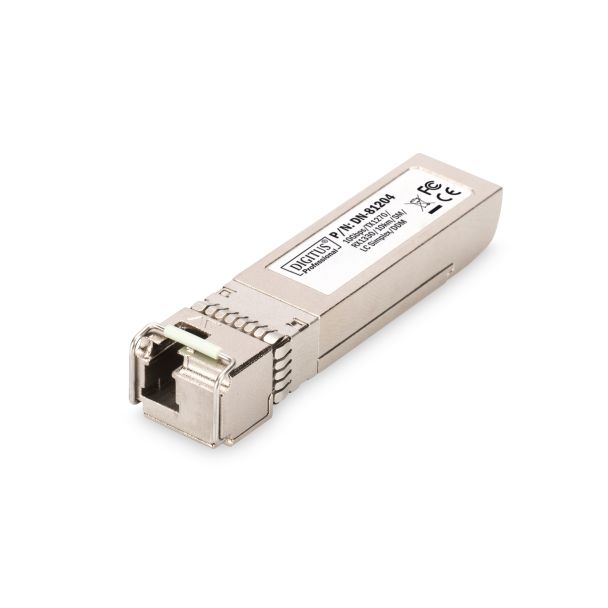

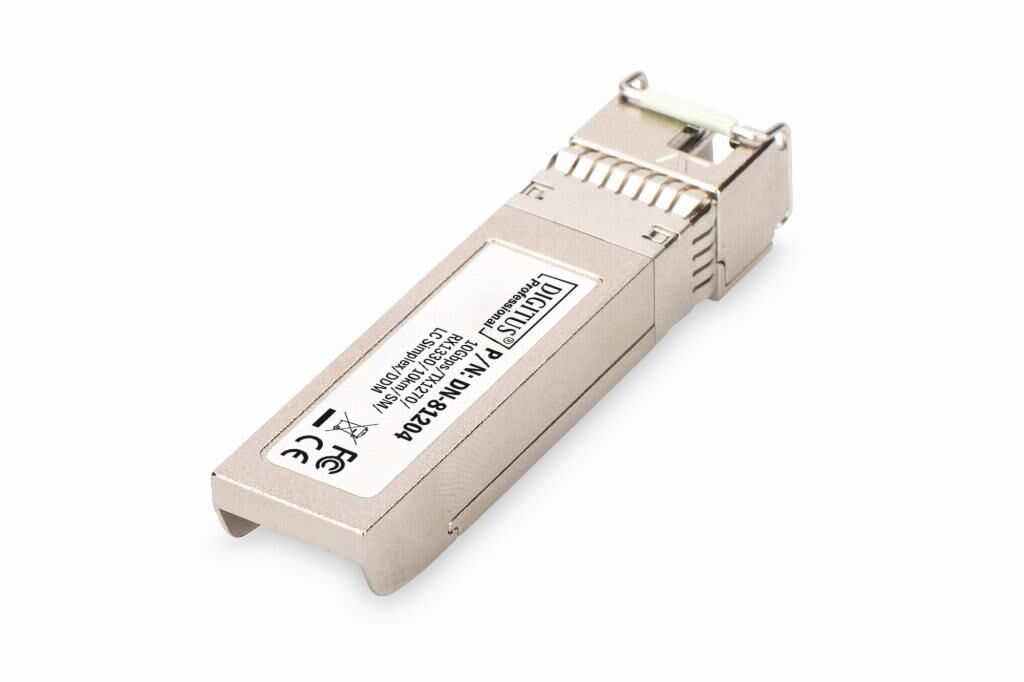

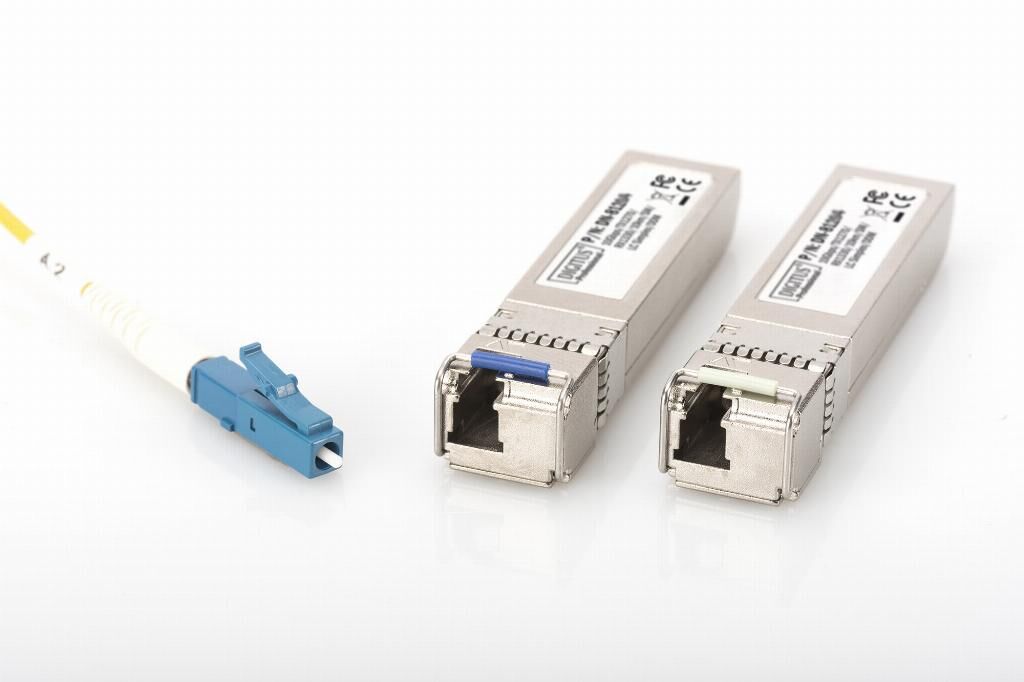

Digitus SFP+ 10 Gbps Bi-directional Module, Singlemode, TX1270/RX1330, 10km

Name: Digitus SFP+ 10 Gbps Bi-directional Module, Singlemode, TX1270/RX1330, 10km
Brand: Digitus
SKU: DIG-DN-81204
Price: 88.218201 EUR
Availability: InStock

GTIN: 4016032424260

In stock

SKU

DIG-DN-81204

Be the first to review this product

€88.22 €72.31

Your legal guarantee rights

Manufacturers: Digitus

10G SFP+ Module, Singlemode, BiDi, DDM LC Simplex Connector, Tx1270/Rx1330, up to 10km

Digitus SFP+ 10 Gbps Bi-directional Module, Singlemode, TX1270/RX1330, 10km

Description

More Information

Reviews

The plug and play fiber connection

- The Plug & Play fiber optic link enables quick installation
- Distance up to 10km at a maximum data rate of 10Gbps
- Sends data in high quality and additionally provides excellent reliability
- Bidirectional WDM Module - Only one fiber is needed
- Operating temperature: 0 °C ~ 70 °C

The DIGITUS® mini GBIC (SFP) transceiver modules offer highest quality and reliability. Wether from switch to switch, converter to switch, converter to converter or any else application: The wide product range of DIGITUS® modules makes possible a flexible usage of the fiber technology. The conformity to the MSA (Multi Source Agreement) standard ensures a compatibility to third party manufacturers.

leaflet

More Information
Product Condition	New
Manufacturer	Digitus
manufacturer code	DN-81204
Ean	4016032424260
Modified on	12-02-2017
Product title	Digitus SFP+ 10 Gbps Bi-directional Module, Singlemode, TX1270/RX1330, 10km
Long Product Name	10G SFP+ Module, Singlemode, BiDi, DDM LC Simplex Connector, Tx1270/Rx1330, up to 10km
Product specifications	Performance SFP transceiver type* Fiber optic Maximum data transfer rate* 10000 Mbit/s Interface type* SFP+ Single-mode fiber (SMF) supported Yes Multi-mode fiber (MMF) supported Yes Fiber optic connector LC Fiber cable diameters supported (core/cladding) 9/125 µm Maximum transfer distance 10000 m Tx wavelength (max) 1270 nm Rx wavelength (max) 1330 nm Ethernet interface type 10 Gigabit Ethernet Networking standards IEEE 802.3ae Digital Diagnostics Monitoring (DDM) Yes Fiber ports quantity 1 Features Product colour Metallic Features Plug and Play Yes Hot-Plug support Yes Country of origin China Brand compatibility MSA Compliant Certification EN 60825-1 Packaging data Number of products included 1 pc(s) Package width 93 mm Package depth 117 mm Package volume 348.192 cm³ Package weight 58.333 g Logistics data UK Trade Tariff code 85176200 Harmonized System (HS) code 85369010
Essential qualities	SFP+ (Small Form Factor Pluggable) module Compatible with the following manuafacturers: Allied Telesis, Allnet, Avaya, CISCO, D-Link, Edimax, FINISAR, FORCE 10, Gigamon Intellinet, KTI Networks, Level One, PLANET, Tenda, TP-Link, TRENDnet, Mikrotik , ENTERASYS, RIVERSTONE , Unifi, Ubiquiti, ZyXEL, ZTE Connector: 1x LC Simplex Bidirectional WDM Module - Only one fiber is needed Wavelength: TX 1270 / RX 1330, Singlemode 10Gbps Maximum Data Rate Transmission power: minimum -5 dBm, maximum 0.5 dBm Sensitivity Receiving Power: Minimum -13 dBm For a Distance of up to 10km Safe fast-locking mechanism Supports DDM-Feature (Digital Diagnostic Monitoring) High quality and excellent reliability Compliant to IEEE 802.3ae 10 Gigabit Standard Class 1 laser product compliant with EN 60825-1 Easy plug-and-play installation MSA (Multi Source Agreement) compliant Hot pluggable 3.3V power supply Suitable for 09/125μm Singlemode Fiber Cables Operating temperature: 0 °C ~ 70 °C
SFP transceiver type	Fiber optic
Maximum data transfer rate	10000 Mbit/s
Interface type	SFP+
