Digitus Ventilation unit for 483 mm (19") installation 2 fans, thermostat, switch, black (RAL 9005)
GTIN: 4016032185789

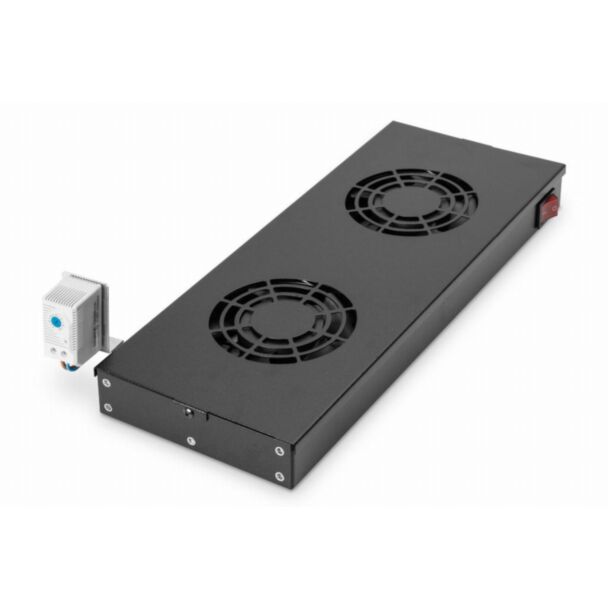

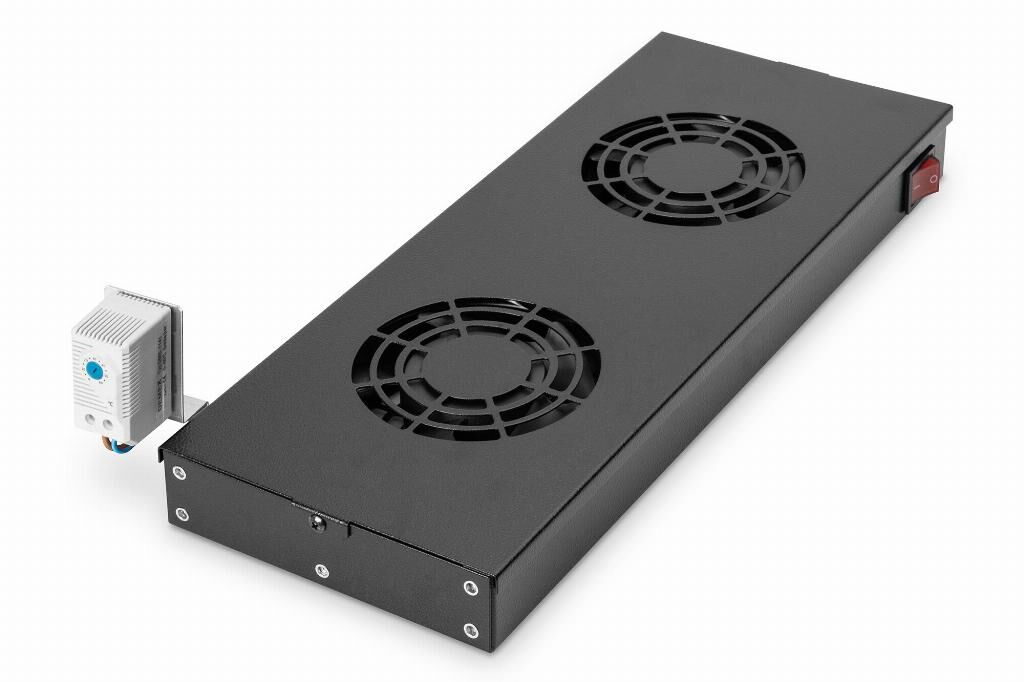

Ventilation unit for 483 mm (19") installation 2 fans, thermostat, switch, black (RAL 9005)
DIGITUS® 483 mm (19") accessories are designed to meet the high demands of IT infrastructure and are manufactured to German quality standards.
- Variable installation in the 483 mm (19") level
- The waste heat from the built-in components is actively dissipated via the fan unit
- Two built-in fans

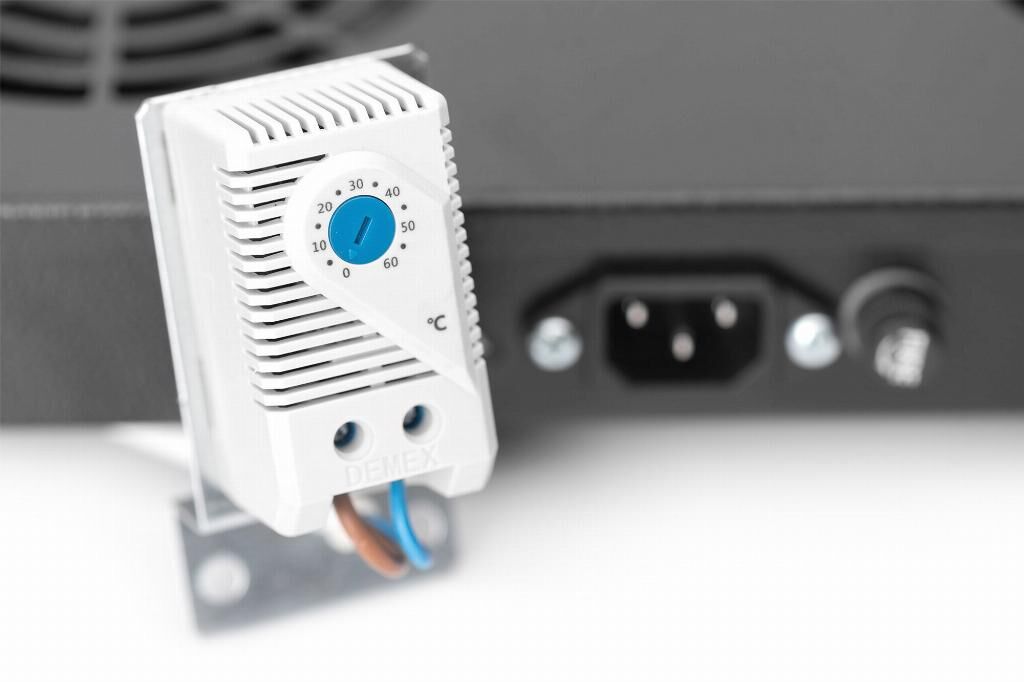

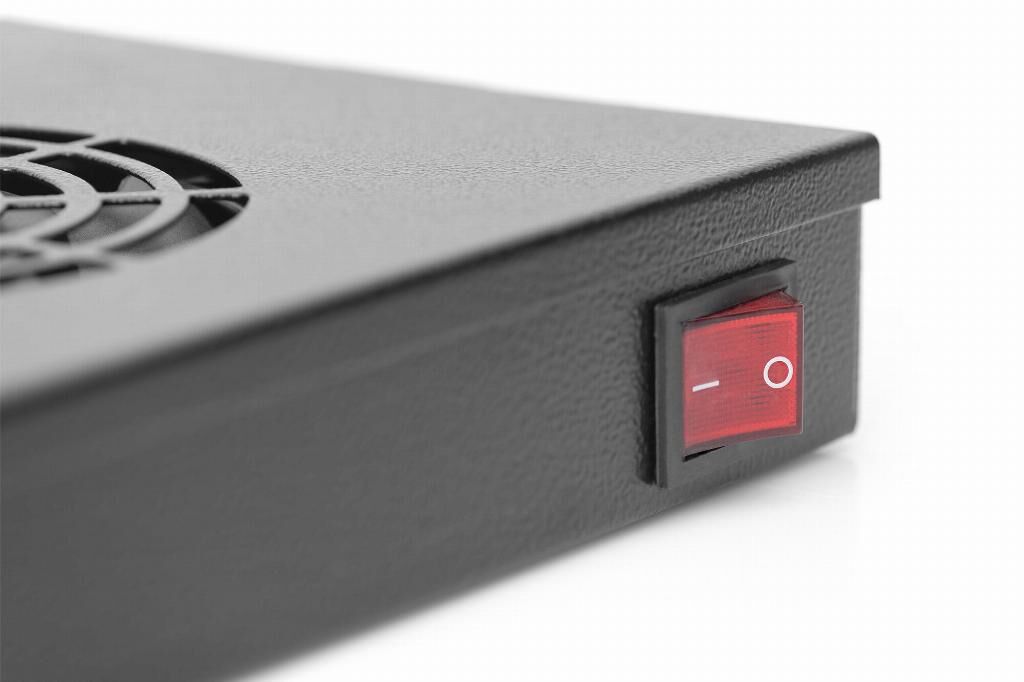

- Includes adjustable thermostat and ON/OFF switch
Also known colloquially as slide-in fans, the fan units can be mounted variably in the 19" grid of any network or server rack instead of under the roof. The scope of delivery includes mounting brackets for easy attachment in the 19" profile. Equipped with an ON/OFF switch and a shelf-mounted thermostat, each fan unit offers the best operational readiness according to individual requirements. The model is available in the standard colors grey (RAL 7035) and black (RAL 9005), optionally equipped with two or four fans.
| Product Condition | New |
|---|---|
| Manufacturer | Digitus |
| manufacturer code | DN-19 FAN-2-HO-SW |
| Ean | 4016032185789 |
| Modified on | 08-04-2019 |
| Product title | Digitus Ventilation Unit for variable 483 mm (19") installation |
| Long Product Name | Ventilation unit for 483 mm (19") installation 2 fans, thermostat, switch, black (RAL 9005) |
| Product specifications | FeaturesType* Fan panel Product colour* Black Built-in fan Yes Number of fans 2 fan(s) Airflow 276 m³/h On/off switch Yes Cable length 1.8 m International Protection (IP) code IP20 Country of origin Turkey PowerPower source AC Input voltage 220 - 240 V AC input frequency 50 - 60 Hz Power consumption (typical) 13.8 W Weight & dimensionsWidth 483 mm Depth 174 mm Height 45 mm Weight 5.2 kg Packaging dataQuantity per pack 9 pc(s) Package width 510 mm Package depth 280 mm Package height 400 mm Package volume 7140 cm³ Package weight 3.34 kg Logistics dataUK Trade Tariff code 84145915 Harmonized System (HS) code 85389099 |
| Essential qualities |
|
| Type | Fan panel |
| Product colour | Black |
| Size (imperial) | 48.3 cm (19") |
