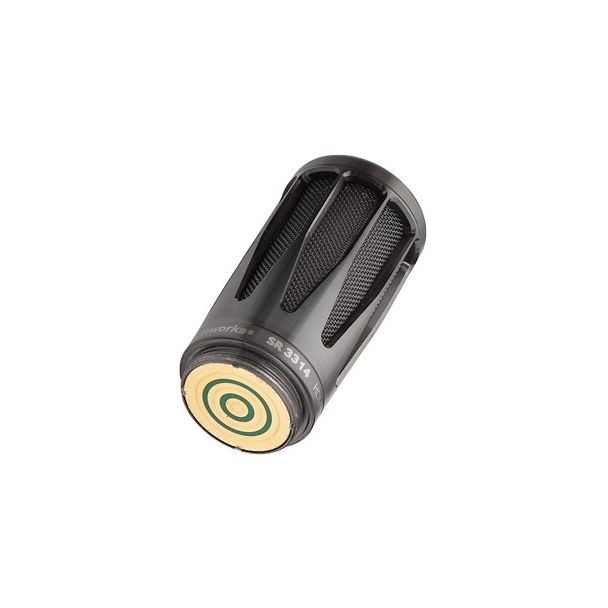

Earthworks SR3314
GTIN: 0827517751764
Earthworks SR3314 cardioid condenser vocal capsule for wireless handheld transmitters with 3-ring connector (Shure, Audio-Technica, Lectrosonics, Line 6), 20 Hz-30 kHz, black with black mesh finish.
Earthworks SR3314 Wireless Vocal Microphone Capsule Black with Black Mesh
The Earthworks SR3314 brings the sound of the SR314 vocal microphone to wireless systems. It fits any wireless handheld base with a 3-ring concentric connector and captures natural, open vocals with minimal proximity effect. Its tight cardioid pattern stays consistent out to 90 degrees off axis, sources beyond 90 degrees are strongly attenuated with maximum rejection at 180 degrees, and low-frequency response stays consistent at different distances, giving strong feedback immunity and better monitor mixes. The 1.25"-28 thread matches compatible wireless handheld transmitters.
Compatibility
- Shure ULX-D, QLX-D, SLX-D, Axient (AD2 and ADX2 may need about 3 seconds of warm-up after power-on)
- Audio-Technica 3000, 5000 and 6000 Series
- Lectrosonics HH, HHa
- Line 6 V75, V55
Specifications
- Polar pattern: cardioid
- Frequency response: 20 Hz - 30 kHz
- Sensitivity: 6.5 mV/Pa (-43.7 dBV/Pa)
- Power: 3-6 V, 2.1 mA at 5 V
- Maximum SPL: 133 dB SPL at 6 V
- Self-noise: 22 dBA
- Output: 3-ring concentric connector
- Thread: 1.25"-28
- Dimensions: 84 mm long, 40.6 mm max diameter
- Weight: 0.18 kg
- Finish: black with black mesh
| Product Condition | New |
|---|---|
| Manufacturer | Earthworks |
| manufacturer code | SR3314-B |
| Ean | 0827517751764 |
| Product title | Earthworks SR3314 |
| Long Product Name | 20 Hz - 30 kHz, 0.1 Ω, -43.7 dBV/Pa, 133 dB SPL, 3 - 6 V, 2.1 mA, ⌀40.6 x 84 mm, 180 g |
| Product specifications | FeaturesProduct type* Dynamic microphone capsule Brand compatibility* Earthworks Product colour Black Impedance 0.1 Ω Microphone sensitivity -43.7 dB Connecting thread (female) 1 1/4" Weight & dimensionsDiameter 4.06 cm Height 84 mm Weight 180 g |
| Essential qualities |
|
| Product type | Dynamic microphone capsule |
| Brand compatibility | Earthworks |
