Kiloview E3 video servers/encoder 3840 x 2160 pixels 60 fps
GTIN: 6970631320317
Kiloview E3 H.265/H.264 video encoder with HDMI input up to 4Kp30 and 3G-SDI up to 1080p60 with loop-through, NDI HX3/HX2, SRT, RTMP, HLS, streaming to 8 destinations up to 120 Mbps.
Kiloview E3 4K HDMI and 3G-SDI Multi-Interface Video Encoder

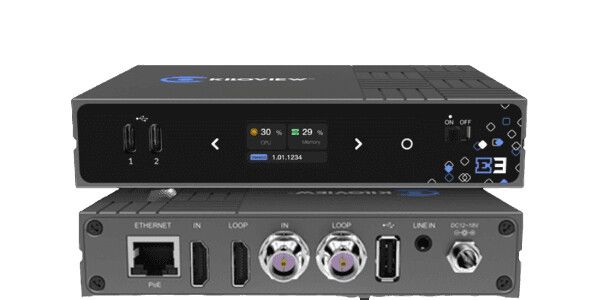

The Kiloview E3 is a video encoder with HDMI input and loop-through up to 4Kp30 and 3G-SDI input up to 1080p60. It encodes either source, mixes both into one output in PIP or PBP mode, or encodes both simultaneously at up to 1080p60, using H.265 (HEVC) or H.264. HEVC keeps image quality at lower bitrates, saving more than 50% of bandwidth. Supported protocols include NDI HX3, NDI HX2, SRT, RTMP/RTMPS, HLS, TS over UDP and RTSP, for live production, remote production, live streaming and recording.
It can stream to up to 8 destinations simultaneously with bitrates up to 120 Mbps. Audio is taken from the 3.5 mm line input or embedded in SDI/HDMI (8 channels from SDI, 4 from HDMI) and encoded in formats including AAC, MPEG-2, Opus and G.711. A 1.14" LCD with touch buttons shows connectivity, IP address, CPU and memory usage, resolution and tally status. All inputs can be recorded in .MOV/.MP4 to USB storage (3 ports) or NAS while streaming.
Key features
- HDMI input/loop-through up to 4Kp30, 3G-SDI up to 1080p60
- Encodes HDMI and SDI simultaneously, or mixes them in PIP/PBP
- H.265 and H.264 encoding
- NDI HX3/HX2, SRT, RTMP/RTMPS, HLS, TS over UDP, RTSP
- Streaming to 8 destinations, up to 120 Mbps
- 8-channel SDI and 4-channel HDMI embedded audio, 3.5 mm line in
- Recording to USB or NAS in .MOV/.MP4
- 1.14" LCD with touch buttons
Specifications
- USB 2.0 ports: 3
- Power: 12 V, 1 A, 5 W typical
- Operating temperature: -20 to 45 °C
- Dimensions: 140 x 100 x 28 mm
| Product Condition | New |
|---|---|
| Manufacturer | Kiloview |
| manufacturer code | E3 |
| Ean | 6970631320317 |
| Modified on | 03-06-2024 |
| Product title | Kiloview E3 video servers/encoder 3840 x 2160 pixels 60 fps |
| Long Product Name | SDI, HDMI, 8ch, 4K |
| Product specifications | VideoMaximum video resolution* 3840 x 2160 pixels Maximum frame rate* 60 fps Video compression formats H.264, H.265 Channels quantity 8 channels PerformanceBitrate at maximum video resolution 120 Mbit/s Ports & interfacesUSB 2.0 ports quantity 3 PowerPower consumption (typical) 5 W PowerInput voltage 12 V Power consumption 1000 mA Weight & dimensionsWidth 140 mm Depth 100 mm Height 28 mm Operational conditionsOperating temperature (T-T) -20 - 45 °C Storage temperature (T-T) -40 - 50 °C |
| Maximum video resolution | 3840 x 2160 pixels |
| Maximum frame rate | 60 fps |
