Kiloview MG300 V2 gateway/controller 1000 Mbit/s
GTIN: 6970631323158
Kiloview MG300 V2 media gateway: decoder, transcoder, protocol converter and media server for NDI|HX, SRT, RTMP(S), RTSP, TS-UDP and HLS, with 3G-SDI and 4K HDMI outputs.

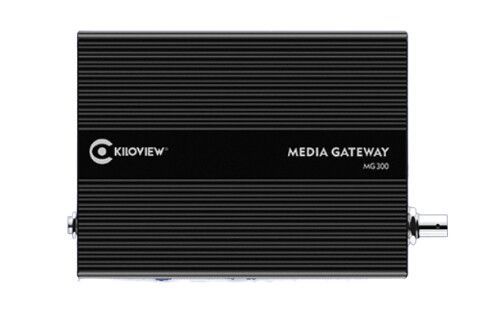

Kiloview MG300 V2 Multi-Protocol Media Gateway
The Kiloview MG300 V2 is an embedded multi-function media gateway. It decodes NDI|HX, SRT, RTMP, RTSP, TS-UDP and HLS streams to SDI and HDMI, with the same or different content, multi-view output and streaming, image segmentation, protocol cross-conversion and stream distribution. It handles up to 9 protocol cross-conversions at once, with each input converted to up to 4 outputs of the same or different protocols.
Multiple streams can be republished as a multiview source with free layout, and up to 9 IP streams (including the multiview) can each be pushed to up to 4 targets. As a media server it supports up to 50 concurrent accesses, and it transcodes between H.264 and H.265. As a decoder it handles H.264/H.265 IP streams up to 4K, decoding up to 9 x 1080p30, 8 x 1080p60 or 4 x 4Kp30 channels with less than 200 ms delay, and outputs them on 3G-SDI and 4K HDMI. A built-in RTMP server receives streams directly from encoders.
Key features
- Protocols: NDI|HX, SRT, RTMP, RTMPS, RTSP, TS-UDP, HLS
- Up to 9 protocol cross-conversions, 4 outputs per input
- Multiview republishing with free layout
- Media server with up to 50 concurrent accesses
- H.264/H.265 transcoding
- Decoding up to 9 x 1080p30, 8 x 1080p60 or 4 x 4Kp30
- Decoding delay below 200 ms
- Built-in RTMP server
Specifications
- Outputs: 3G-SDI, HDMI
- Network: 2 x Gigabit Ethernet RJ-45
- USB: 1 x USB 3.2 Gen 1 Type-A
- Power: 12 V, 1 A, max 6 W
- Operating temperature: -25 to 60 °C
- Dimensions: 140 x 105 x 28 mm
- Colour: black
| Product Condition | New |
|---|---|
| Manufacturer | Kiloview |
| manufacturer code | MG300 V2 |
| Ean | 6970631323158 |
| Product colour | Black |
| Modified on | 10-04-2023 |
| Product title | Kiloview MG300 V2 gateway/controller 1000 Mbit/s |
| Long Product Name | RJ-45, HDMI, FHD, 9ch |
| Product specifications | DesignProduct colour* Black FeaturesChannels quantity 50 channels NetworkEthernet LAN data rates 1000 Mbit/s Forwarding rate 1000 Mpps Data transfer rate 0.004 Gbit/s Ports & interfacesUSB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 1 Number of HDMI outputs 1 Ethernet LAN (RJ-45) ports 2 PowerPower consumption (max) 6 W Input voltage 12 V Input current 1 A Weight & dimensionsWidth 140 mm Depth 105 mm Height 28 mm Operational conditionsOperating temperature (T-T) -25 - 60 °C |
