Kiloview N5 video signal converter Active video converter 1920 x 1080 pixels
GTIN: 6970631322304
Kiloview N5 bi-directional 3G-SDI/NDI converter: encodes and decodes NDI High Bandwidth and NDI HX2/HX3, with PoE, 1.14" LCD with tally, PTZ control and 3.5 mm audio in/out.

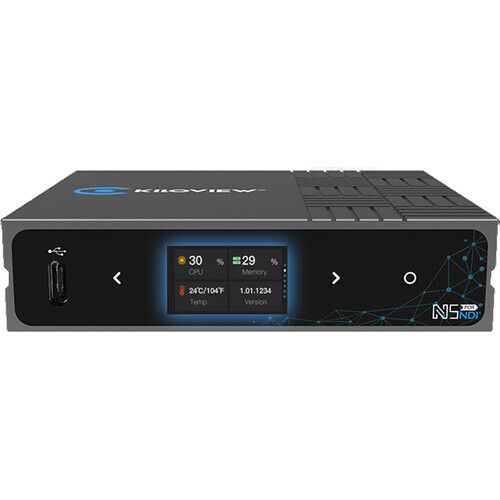

Kiloview N5 3G-SDI to NDI Bi-Directional Converter
The Kiloview N5 is a bi-directional NDI converter with 3G-SDI input (encoder) and output (decoder). It supports both NDI High Bandwidth and NDI HX2/HX3, so it can process NDI sources from any camera, software or device. The working mode is selected in the user interface: in encoding mode it turns the 3G-SDI signal into an NDI High Bandwidth or NDI HX2/HX3 stream; in decoding mode it automatically adapts the incoming NDI stream and outputs it over 3G-SDI.
It supports 3.5 mm analogue audio line in/out or embedded audio, with up to 4 channels of audio encoding, and voice intercom with the Kiloview Intercom server. A 1.14" LCD with touch buttons shows connectivity, IP address, CPU, memory, resolution, temperature and tally status. PTZ cameras can be controlled via USB to serial RS-232/485/422 or over IP. It can be powered by PoE over a single cable, or by DC from 5 to 18 V, for example from USB power or a camera battery.
Key features
- NDI encoding and decoding in one unit
- NDI High Bandwidth and NDI HX2/HX3
- 3.5 mm audio line in/out and embedded audio, up to 4 channels
- Voice intercom with Kiloview Intercom server
- 1.14" LCD with touch buttons and tally
- PTZ control via RS-232/485/422 (USB) or IP
- PoE+ or 5-18 V DC power
Specifications
- Video: up to 1920 x 1080 at 60 fps
- Network: 1 x Gigabit Ethernet RJ-45
- Typical power consumption: 6 W
- Colour: black
| Product Condition | New |
|---|---|
| Manufacturer | Kiloview |
| manufacturer code | N5 |
| Ean | 6970631322304 |
| Modified on | 03-06-2024 |
| Product title | Kiloview N5 video signal converter Active video converter 1920 x 1080 pixels |
| Long Product Name | SDI, 3.5mm, RJ-45, PoE |
| Product specifications | FeaturesConverter type* Active video converter LED indicators Status Product colour Black Ethernet LAN Yes Ethernet LAN data rates 1000 Mbit/s VideoMaximum video resolution* 1920 x 1080 pixels Video resolutions 1920 x 1080 pixels Supported video modes 1080p Resolution at capture speed 1920x1080@60fps Supported chroma subsampling 4:2:0, 4:2:2 Colour depth 58 bit Ports & interfacesHost interface* SDI Output interface* SDI RJ-45 ports quantity 1 3.5 mm connector Yes Ports & interfacesDC-in jack Yes PowerPower consumption (typical) 6 W Power over Ethernet (PoE)Power over Ethernet (PoE) type supported PoE+ DisplayBuilt-in display Yes Display type LCD Operational conditionsOperating temperature (T-T) -20 - 45 °C Storage temperature (T-T) -20 - 70 °C Weight & dimensionsWidth 100 mm Depth 80 mm Height 24 mm Weight 272 g |
| Essential qualities |
|
| Converter type | Active video converter |
| Maximum video resolution | 1920 x 1080 pixels |
| Host interface | SDI |
| Output interface | SDI |
