Kramer VSM-4X4A – 4x4 seamless multi-scaler matrix with video wall and multiviewer

Kramer VSM-4x4A 4x4 Seamless AV Matrix Switcher/Multi-Scaler

VSM-4x4A is a 4x4 seamless matrix switcher that cuts between inputs cleanly, frame to frame, with no glitches on screen.

It can also work as a video wall driver (2x2 or 1x4, with bezel correction) and as a dual (split / PIP / POP) or quad multiviewer, thanks to Kramer's PixPerfect scaling technology. It supports HDMI with Deep Color, up to eight audio channels and per-port HDCP and EDID settings; besides the four scaled HDMI outputs it has four balanced and four unbalanced analog audio outputs with independent volume.

Ideal for live events, control rooms and presentations where every source change must be invisible, as well as advertising, shopping malls, museums, post production, security and rental: four scalers in a single 1U rack unit.

Key features

• 4 HDMI inputs and 4 scaled HDMI outputs, Kramer PixPerfect scaling
• Modes: 4x4 matrix, video wall (2x2 or 1x4), dual display (split / PIP / POP) or quad display
• Seamless (zero-time) switching or fade-through-black with independent output resolutions
• Bezel correction in video wall mode; constant output sync in all modes
• 4 balanced and 4 unbalanced audio outputs with independent volume; embedded audio on HDMI inputs and outputs
• HDMI support: Deep Color, Dolby Digital Plus, DTS, DTS-HD, LPCM 2/6/8 ch, AC3
• Per-port HDCP and EDID settings
• Aspect ratio: full, 4:3, 16:9, best fit; built-in ProcAmp

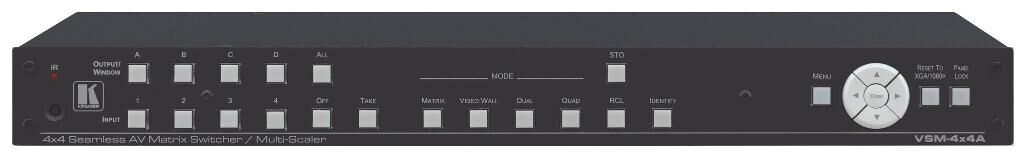

• 4 presets per operation mode, TAKE button, front panel lockout
• Control via front panel, RS-232, IR remote with OSD, Ethernet with built-in web pages; firmware upgrade via Ethernet or mini USB

Specifications

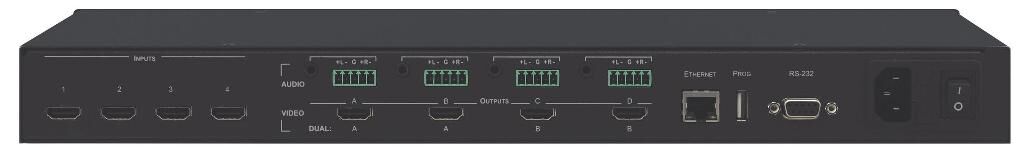

• Inputs: 4 HDMI connectors (HDMI, HDCP version 1.1)
• Outputs: 4 HDMI connectors (HDMI, HDCP version 1.1); 4 balanced stereo audio on terminal block connectors; 4 unbalanced audio on 3.5mm mini jacks
• Ports: 1 RS-232 on a 9-pin connector, 1 Ethernet on an RJ-45 connector, 1 USB on a type-A connector
• Input resolution range: VGA to WUXGA and 480i to 1080p
• Output resolutions: native, 480p, 576p, 720p50, 720p59, 720p60, 1080p24, 1080p50, 1080p60, 1024x768, 1280x800, 1280x1024, 1366x768, 1440x900, 1600x900, 1680x1050, 1920x1200
• Video latency: 30ms typical with progressive input
• Controls: front panel buttons, IR with customized remote control, RS-232, Ethernet with built-in web pages, USB port for programming
• Power source: 100-240V AC, 27VA max
• Environmental conditions - Operating temperature: 0° to +40°C (32° to 104°F)
• Environmental conditions - Storage temperature: -40° to +70°C (-40° to 158°F)
• Environmental conditions - Humidity: 10% to 90%, RHL non-condensing
• Size: 19", 1U
• Weight: 1.8kg approx.

In the box

• 1 x Power cord
• 1 x Set of rack ears
• 1 x IR remote control
