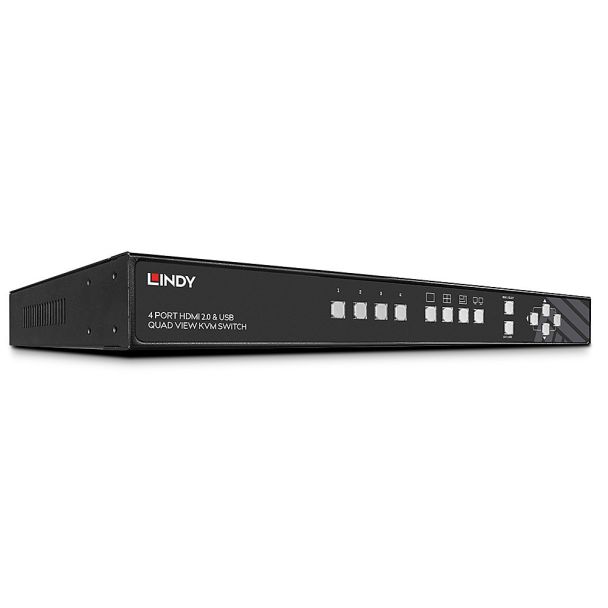

Lindy 4 Port HDMI 4K Quad View KVM Switch
GTIN: 4002888323291
4 Port HDMI 4K Quad View KVM Switch Pro
Allows you to connect up to 4 Full HD & USB HID source devices and be displayed and controlled at the same time from a 4K console
Supports HDMI 2.0 4K@60Hz 4:4:4 8bit video resolutions & HDCP 1.4 on the output port
Supports full screen mode with realtime 4K upscaling and seamless switching between the sources
2 Year Warranty
This 4K HDMI KVM switch with Quad View feature is able to display 4 FullHD sources like PC, servers or DVR at the same time on a 4K display or projector and switch to a full screen mode with source video signal upscaling in realtime. The user is able to interact with each attached device by simply moving the mouse pointer from one quadrant to another and switch to a full screen view as needed by double clicking the mouse’s scroll wheel.
It's also possible to increase the number of the controlled sourced installing one additional switch in a cascade configuration. Thanks to seamless switching capabilities switching from one source to another is completed instantly without any black screen or screen freezing, making it perfect for professional and mission critical applications such as a control room installation.
| Product Condition | New |
|---|---|
| Manufacturer | Lindy |
| manufacturer code | 32329 |
| Ean | 4002888323291 |
| Rack mounting | Yes |
| Product colour | Black |
| Modified on | 12-01-2019 |
| Warranty | 2 years |
| Product title | Lindy 4 Port HDMI 4K Quad View KVM Switch |
| Long Product Name | 4 Port HDMI 4K Quad View KVM Switch Pro |
| Product specifications | Ports & interfacesNumber of computers controlled* 4 Keyboard port type* USB Mouse port type* USB Video port type* HDMI HDMI ports quantity 6 HDMI version 2.0 USB 2.0 Type-B ports quantity 4 Console ports* HDMI, USB A Console USB ports quantity 2 USB 2.0 Type-A hub ports quantity 2 PerformanceHD type* 4K Ultra HD Maximum resolution* 3840 x 2160 pixels HDCP Yes DesignRack mounting* Yes Rack capacity 1U Product colour* Black Housing material Metal Cascadable Yes Certification CE, FCC, REACH PowerPower source DC Input voltage 12 V Input current 5 A SustainabilitySustainability certificates RoHS Compliance certificates RoHS Operational conditionsOperating temperature (T-T) 0 - 40 °C Storage temperature (T-T) -20 - 60 °C Operating relative humidity (H-H) 0 - 90% Weight & dimensionsWidth 438 mm Depth 200 mm Height 44 mm Weight 2.7 kg Packaging dataPackage width 570 mm Package depth 245 mm Package height 105 mm Package weight 3.64 kg Package type Box Packaging contentManual Yes AC adapter included Yes Rack mount kit Yes Logistics dataHarmonized System (HS) code 85176200 |
| Essential qualities |
|
| Number of computers controlled | 4 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | HDMI |
| Console ports | HDMI, USB A |
| HD type | 4K Ultra HD |
| Maximum resolution | 3840 x 2160 pixels |
