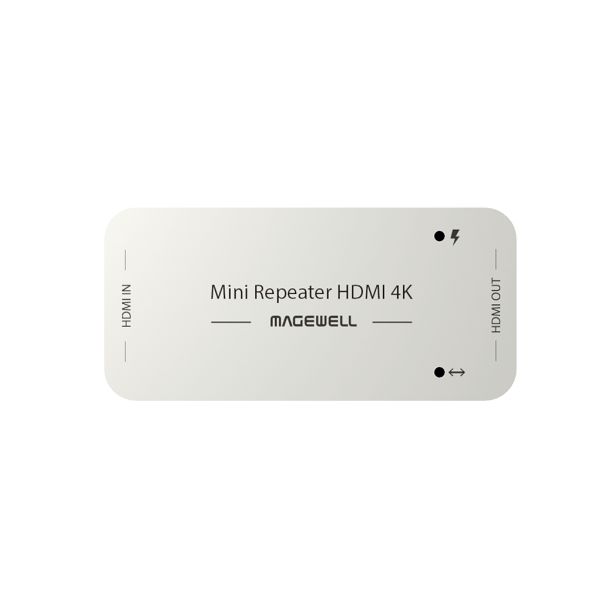

Magewell Mini Repeater HDMI 4K HDMI repeater
GTIN: 6936572400488
Compact HDMI 2.0 repeater that equalises and regenerates HDMI/DVI-D signals up to 4K (594 MHz, 6 Gbps) to extend cable runs and fix corrupted signals, powered by HDMI or 5 V USB.
Magewell Mini Repeater HDMI 4K 43010
The Magewell Mini Repeater HDMI 4K solves two common problems: HDMI cables that are not long enough, and captured images that flicker, show wrong colours or report an unsupported signal. Placed in the HDMI line, it receives and equalises the signal, eliminates jitter and provides a DDC buffer, enhancing the signal and extending transmission distance. It is compatible with HDMI 2.0 and DVI standards, supports 3D, 4K x 2K and HDCP 1.x/2.x, and is powered by the HDMI signal or an external 5 V supply via the included USB cable. In Magewell tests with JCE HDMI cables, it supported 10 m cables at both input and output for 4K signals and 20 m for 2K signals.
Key features
- Extends HDMI cable runs and fixes corrupted signals
- HDMI 2.0 and DVI compatible; 3D, 4K x 2K, HDCP 1.x/2.x
- Up to 594 MHz pixel rate and 6.0 Gbps data rate
- Signal equalisation, jitter elimination and DDC buffer
- Powered by HDMI or external 5 V
- LED shows input/output status
Notes
- Use high-quality HDMI cables for maximum transfer length
In the box
- 1 x Mini Repeater HDMI 4K
- 1 x USB to 5 V cable (ACC00063)
Specifications
- Input: HDMI type A (HDMI/DVI-D signal)
- Output: HDMI type A
- Max. cable length: 10 m in/out at 4K, 20 m in/out at 2K
- Power: +5 V
- Size: 58.22 x 27.26 x 10.80 mm
| Product Condition | New |
|---|---|
| Manufacturer | Magewell |
| manufacturer code | 43010 |
| Ean | 6936572400488 |
| Model code | 43010 |
| Modified on | 07-02-2024 |
| Product title | Magewell Mini Repeater HDMI 4K video capturing device Internal PCIe |
| Long Product Name | HDMI Type A, HDMI/DVI-D, 4K x 2K, HDCP 1.x/2.x |
| Product specifications | PerformanceProduct colour* Black, Green Internal* Yes Host interface* PCIe Video capture resolution (max) 4096 x 2160 pixels LED indicators Yes VideoMaximum frame rate 144 fps Ports & interfacesUSB port* No PowerPower supply type* DC Input voltage 5 V PowerOutput current 1.84 A Operational conditionsOperating temperature (T-T) 0 - 60 °C Storage temperature (T-T) -20 - 70 °C Operating relative humidity (H-H) 5 - 90% Weight & dimensionsWidth 58.2 mm Depth 27.3 mm Height 10.8 mm Packaging dataPackage type Box |
| Essential qualities |
|
| Product colour | Black, Green |
| Internal | Yes |
| Host interface | PCIe |
| Power supply type | DC |
| USB port | No |
