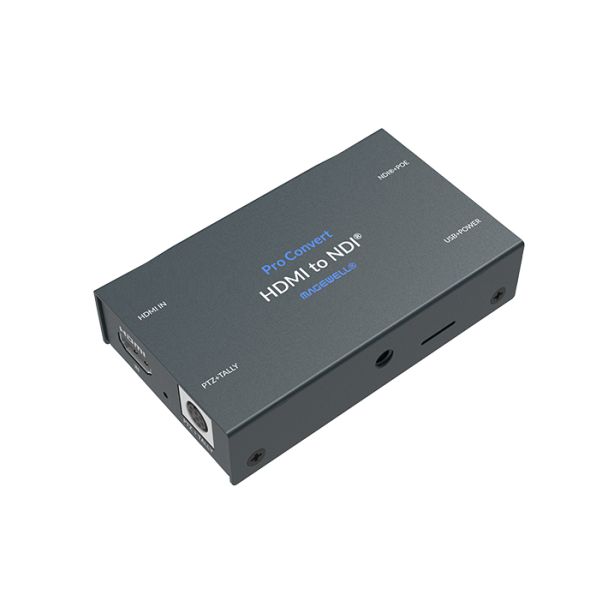

Magewell Pro Convert HDMI TX Active video converter 2048 x 1200 pixels
GTIN: 6936572401195
HDMI to Full NDI encoder: converts HDMI inputs up to 2048 x 1200 60 fps into NDI (4:2:2 8-bit) with very low latency, 8-channel audio, PTZ control via NDI, tally light and web GUI.
Magewell Pro Convert HDMI TX NDI Encoder 64050
The Magewell Pro Convert HDMI TX connects existing HDMI source equipment to NDI-enabled, IP-based media networks. It accepts HDMI inputs up to 2048 x 1200 at 60 fps (4:4:4 or 4:2:2) with 8-channel IEC60958 audio and encodes them as Full NDI up to 2048 x 1200 60 fps 4:2:2 8-bit with very low latency. NDI streams can be sent across network segments, PTZ cameras can be controlled remotely via NDI, and NDI 6.2 is supported.
Setup is plug-and-play, with automatic input format detection and DHCP network configuration. Advanced configuration and device status are available through a web GUI, and a tally light and camera mounting suit live production. HTTP APIs, Crestron plug-ins and Q-SYS control plug-ins are provided for integration.
Key features
- HDMI input up to 2048 x 1200 60 fps, 4:4:4/4:2:2
- 8-channel IEC60958 audio
- Full NDI encoding up to 2048 x 1200 60 fps 4:2:2 8-bit
- Very low latency; NDI across network segments
- Remote PTZ camera control via NDI
- Tally light and camera mounting
- Web GUI, HTTP API, Crestron and Q-SYS plug-ins
In the box
- 1 x Pro Convert HDMI TX
- 1 x Power adapter
- 1 x USB type A to type B cable (ACC00065)
- 1 x Mini DIN8 to DIN8 + DB9 cable (ACC00110)
- 1 x Tally light (99090)
- 1 x L bracket (92240)
| Product Condition | New |
|---|---|
| Manufacturer | Magewell |
| manufacturer code | 64050 |
| Ean | 6936572401195 |
| Model code | 64050 |
| Modified on | 12-02-2024 |
| Product title | Magewell Pro Convert HDMI TX Active video converter 2048 x 1200 pixels |
| Long Product Name | 2048x1200 60fps, 8-channel HDMI-embedded audio, 100.9 x 60.2 x 23.3mm |
| Product specifications | FeaturesConverter type* Active video converter Internal No LED indicators Yes Product colour Black VideoMaximum video resolution* 2048 x 1200 pixels Video resolutions 720 x 480,720 x 576,1280 x 720,1920 x 1080,2048 x 1080 Supported video modes 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160p Supported chroma subsampling 4:2:2, 4:4:4 Colour depth 8 bit Colour space supported RGB, YUV Serial Digital Interface (SDI) standard ITU‑R BT.601 AudioAudio output channels 2.0 channels Ports & interfacesHost interface* HDMI PowerUSB powered Yes Operating voltage 5 V Operating current 1.5 A Power consumption (typical) 6 W Operational conditionsOperating temperature (T-T) 0 - 45 °C Storage temperature (T-T) -20 - 70 °C Operating relative humidity (H-H) 5 - 90% Weight & dimensionsWidth 60.2 mm Depth 100.9 mm Height 23.3 mm |
| Essential qualities |
|
| Converter type | Active video converter |
| Maximum video resolution | 2048 x 1200 pixels |
| Host interface | HDMI |
