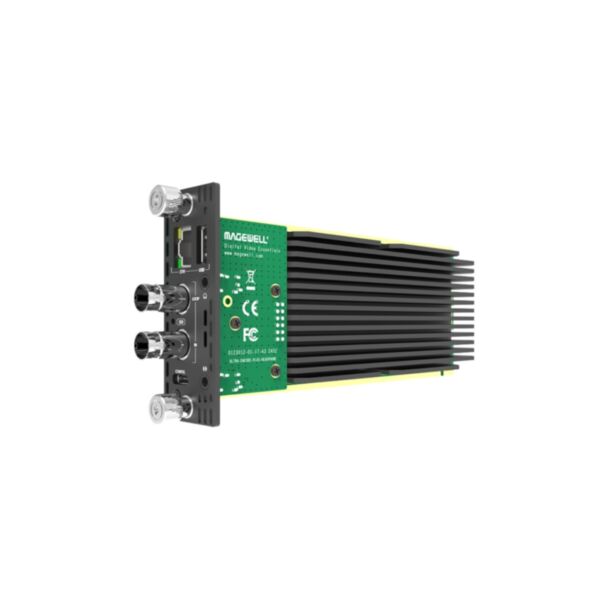

Magewell Ultra Encode SDI Plus Modator encoder module for rack chassis

Magewell Ultra Encode SDI Plus Module

The Magewell Ultra Encode SDI Plus Module is a hot-swappable encoding module for the Modator 2U rack chassis, designed for rack-mounted, centralized deployment of live streaming and recording. It accepts SD, HD and 3G-SDI sources up to 2048x1080 at 60 fps with a loop-through output, plus 16-channel SDI embedded audio and an analogue LINE IN; the main stream follows the input resolution.

It encodes H.264 or H.265 (HEVC) on two independent streams and can stream to up to six destinations at the same time over RTSP, RTMP/RTMPS, SRT, NDI HX2/HX3, HLS, MPEG-TS, TVU ISSP, ZIXI and RIST, with native presets for YouTube, Facebook, Twitch and WOWZA. Recordings in MP4, MOV or TS go to the supplied 128 GB Micro-SD card, a USB drive or a NAS, with schedules and automatic upload to FTP, Google Drive or Dropbox. The module is configured from the chassis touchscreen, its own Web UI or Magewell Control Hub.

Key features

• Dual-stream H.264/H.265 (HEVC) encoding: main stream and optional sub stream (up to 1080p60)
• NDI HX3 up to 62 Mbps, other protocols up to 32 Mbps
• Streaming protocols: RTSP, RTMP/RTMPS, SRT Caller/Listener, NDI HX2/HX3, HLS, MPEG-TS over UDP/RTP, TVU ISSP, ZIXI, RIST Caller/Listener
• Up to 6 simultaneous streaming destinations (1 NDI HX3 session exclusively); live stream schedule
• Native streaming to YouTube, Facebook, Twitch, WOWZA (RTMP/SRT with AES encryption) and ZIXI Broadcaster
• Recording to the supplied 128 GB Micro-SD card, USB storage or NAS (NFS/CIFS) in MP4, MOV or TS; normal and loop recording, recording schedule
• Automatic upload of recordings to FTP, Google Drive or Dropbox
• Up to 8 audio streams (1 x 8-channel + 7 x 2-channel) with channel mapping; AAC
• Aspect ratio conversion, rotation (0/90/180/270°), cropping and side-by-side 3D output
• Up to 8 overlays per stream (text, picture, clock)
• Configuration from the Modator touchscreen, Web UI, Magewell Control Hub or Zixi ZEN Master; HTTP APIs
• Native CEA-608 and 608-over-708 captions; system or RP-188 timecode in SEI messages

Compatibility

• Magewell Modator 2U chassis (required)
• Magewell Control Hub and Zixi ZEN Master for remote centralized management
• Streaming platforms: YouTube, Facebook, Twitch, WOWZA, ZIXI Broadcaster

Notes

• Modator module: it is installed in a slot of the Magewell Modator 2U rack chassis (sold separately), which supplies power (up to 20 W per slot) and centralized cooling. The interface list of the module includes no separate power input.
• Each module must be connected with its own Ethernet cable and its own signal cables; the Ethernet port of the chassis is only used to configure the chassis.
• Hot-swappable: modules can be inserted or removed while the chassis is running. Up to 10 modules of any type can be mixed in one Modator 2U.
• Magewell also offers the standalone version of the same specification (Ultra Encode SDI Plus).

In the box

• Ultra Encode SDI Plus Module x1

Specifications

• Interfaces: 1 x RJ45 1000 Mbps Ethernet, 1 x USB Type-C (configuration), 2 x SD/HD/3G-SDI BNC (1 input, 1 loop-through), 1 x 3.5 mm LINE IN, 1 x 3.5 mm LINE OUT, 1 x USB Type-A, 1 x Micro-SD slot, 1 x Modator interface (hot-swappable)
• SDI input: SD (ST 259), HD (ST 292), 3G-SDI level A/B (ST 425, incl. DL and DS); up to 2048x1080p/i 60, 1920x1080p/i 60, 720p, PAL and NTSC SD; YCbCr 10/12-bit 4:2:2 and 4:4:4
• Audio: 16-channel 24-bit 192 kHz SDI embedded input/output; 2-channel 24-bit 192 kHz LINE IN and LINE OUT
• Main stream resolutions up to the input resolution (follows input); sub stream up to 1920x1080p60
• Audio encoding bitrate: 16 to 256 kbps
• Network: Ethernet 10/100/1000 Base-T; 4G/5G USB modem (not supplied); USB Net
• Storage: Micro-SD card 128 GB (supplied); USB flash drive FAT32/NTFS/exFAT and NAS NFS/CIFS (not supplied)
• Max power consumption: 14.42 W
• Weight: approx. 322 g
• Form factor: 184.4 mm (L) x 30.0 mm (W) x 81.5 mm (H)
• Operating temperature: 0 to 50 °C
• Storage temperature: -20 to 70 °C
• Relative humidity: 5% to 90% non-condensing
