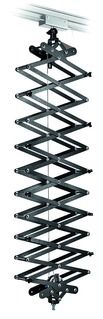

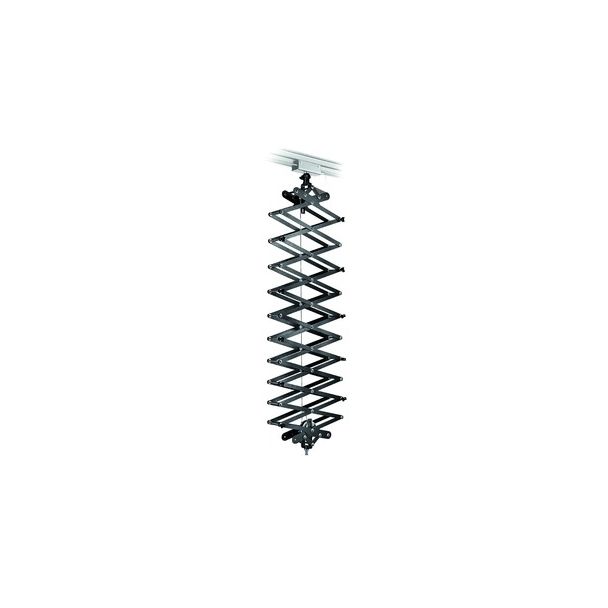

Manfrotto FF3514N86 mounting kit Black Metal

Manfrotto Sky Track Pantograph 3.8 m with 5/8" Attachments FF3514N86

The Manfrotto FF3514N86 pantograph is made of aluminium (P-Al MgSi UNI 3569) and manufactured according to DIN 15560-46. It has 16 mm attachments at both ends, female on the top and male on the bottom, and extends from 38 cm to 380 cm. The load is supported by a 2 mm steel cable with a safety factor of 12.

Loads up to 12 kg can be suspended using only the patented friction device, while loads up to 18 kg require the optional springs; the pantograph can be regulated to keep loads from 1 to 18 kg balanced. Turning the coloured notched ring adjusts the friction, so the load stays still when positioned but moves smoothly up and down when needed. Using springs to help raise the pantograph is always advisable; the spring must match the pantograph length.

Key features

• Aluminium, manufactured according to DIN 15560-46
• 16 mm attachments: female top, male bottom
• 2 mm steel cable, safety factor 12
• Patented friction device for loads up to 12 kg
• Up to 18 kg with optional springs
• Friction adjustable via coloured notched ring

Specifications

• Extension: 38 to 380 cm
• Payload: up to 18 kg (12 kg without springs)
• Top attachment: 5/8" (16 mm) socket
• Bottom attachment: 5/8" (16 mm) stud
• Width: 15 cm
• Colour: black
