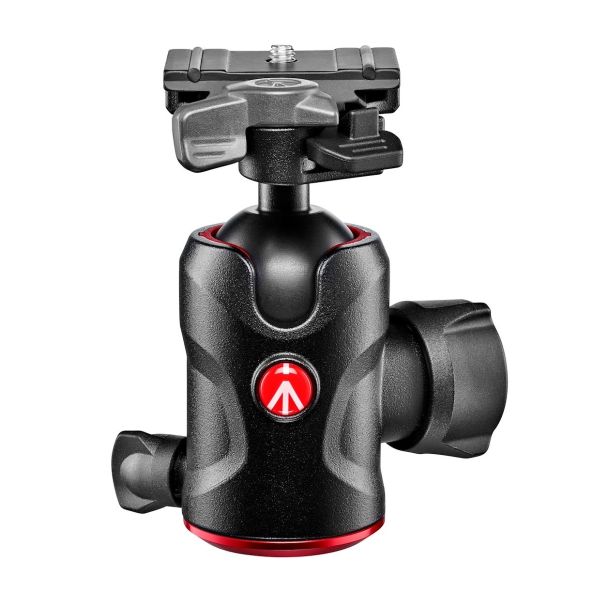

Manfrotto MH496-BH tripod head Black Aluminium 1/4" Ball
GTIN: 8024221668186
Manfrotto MH496-BH 496 centre ball head in aluminium with independent friction and panoramic controls and 200PL-PRO plate compatible with RC2 and Arca-Swiss.
Manfrotto 496 Centre Ball Head MH496-BH
The Manfrotto 496 is a portable yet strong aluminium centre ball head for smooth and precise camera positioning, suitable for mirrorless cameras with zoom lenses and even medium-format DSLRs. It has three independent controls: a main knob for the ball lock, an integrated friction control knob that adjusts ball tension to balance the equipment, and an independent panoramic knob that keeps the horizon level when panning.
It mounts the 200PL-PRO aluminium plate, compatible with both Manfrotto RC2 and Arca-Swiss style attachments, so the camera can be moved quickly between Manfrotto heads and most heads with Arca-Swiss clamps.
Key features
- Smooth ball movement for precise framing
- Independent panoramic movement
- Independent friction control
- 200PL-PRO plate, RC2 and Arca-Swiss compatible
Specifications
- Front and lateral tilt: -90° / +40°
- Panoramic rotation: 360°
- Top attachment: 1/4" screw
- Base diameter: 40 mm
- Height: 11.5 cm
- Weight: 400 g
- Working temperature: -30 to 70 °C
- Material: aluminium
- Colour: black
| Product Condition | New |
|---|---|
| Manufacturer | Manfrotto |
| manufacturer code | MH496-BH |
| Ean | 8024221668186 |
| Modified on | 08-10-2018 |
| Warranty | Standard Limited Warranty |
| Product title | Manfrotto MH496-BH tripod head Black Aluminium 1/4" Ball |
| Long Product Name | 496 Centre Ball head, Aluminium, 400 g, Black |
| Product specifications | Weight & dimensionsHeight* 115 mm Weight* 400 g Base diameter 4 cm Technical detailsProduct colour* Black Material* Aluminium Attachment* 1/4" Tripod head type* Ball Maximum weight capacity* 10 kg Front tilt angle -90 - 40° Technical detailsLateral tilt angle -90 - 40° Panoramic rotation 360° Quick disconnect Yes Locking Yes Built-in spirit level* No Pan lock Yes Tilt lock Yes Operating temperature (T-T) -30 - 70 °C |
| Essential qualities |
|
| Weight | 400 g |
| Height | 115 mm |
| Product colour | Black |
| Material | Aluminium |
| Attachment | 1/4" |
| Tripod head type | Ball |
| Maximum weight capacity | 10 kg |
| Built-in spirit level | No |
