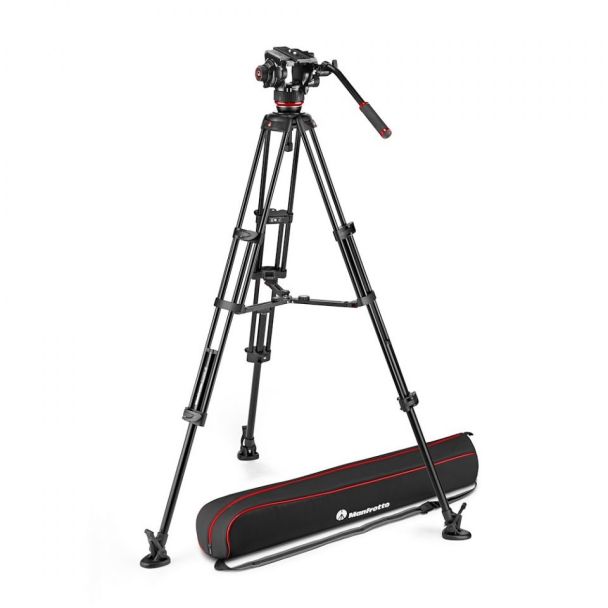

Manfrotto MVK504XTWINMA tripod head Black Aluminium 1/4, 3/8" Fluid

Manfrotto 504X Fluid Video Head with Aluminium Twin Leg Tripod MS MVK504XTWINMA

The 504X fluid video head uses Manfrotto's new fluid technology for smooth, stable pan and tilt movements. It has a 4-step counterbalance system up to 6.5 kg at 55 mm COG and a maximum payload of 12 kg. The compact, light head has a flat base (75 mm diameter) and two 3/8" Easy Link connectors with anti-rotation for monitors or other accessories, with a protective cap. The sliding plate with side-lock mechanism allows quick, safe camera attachment.

The MVTTWINMA aluminium twin-leg video tripod has a rigid, stable two-stage design. It has an aluminium cast 100 mm bowl and comes with an aluminium adapter to convert it to 75 mm; the head attaches via a 75 mm half ball. The tripod has a mid-level spreader with telescopic arms for accurate leg angles; it is detachable, so the tripod can also be used with the 165MV ground spreader (sold separately). Twin spiked feet with rubber overshoes give a firm footing outdoors, and the tripod can be used with the 114MV and 181B dollies. A padded carrying bag is supplied.

Key features

• 504X head with 4-step counterbalance up to 6.5 kg
• Maximum payload 12 kg
• Flat base, 75 mm
• Two 3/8" Easy Link connectors with anti-rotation
• Side-lock sliding plate
• Aluminium twin-leg tripod with mid-level spreader
• Padded bag and pan bar included

Specifications

• Payload: 12 kg
• Counterbalance: 4 steps up to 6.5 kg at 55 mm COG
• Head tilt: -70° / +90°
• Plate: 504PLONGR-1
• Maximum height: 169 cm
• Closed length: 86 cm
• Weight: 5.6 kg
• Material: aluminium
• Colour: black
