openGear 12G-SDI to HDMI 2.0 Conversion, with ST Fiber Receiver
openGear card converting 12G-SDI to HDMI 2.0 at up to 4K 60p, with an SDI input plus a single channel ST fibre receiver SFP, automatic input switch-over and reclocked 12G-SDI loop out.
Commercial guarantee of durability offered by the producer at no extra cost: 5 years. See the GARAN label

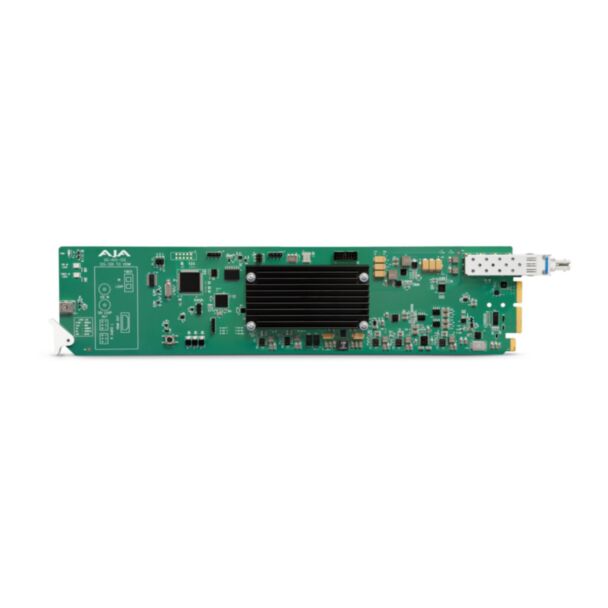

AJA OG-Hi5-12G-R-ST openGear 12G-SDI to HDMI 2.0 Converter with ST Fiber Receiver
OG-Hi5-12G-R-ST is an openGear 12G-SDI to HDMI 2.0 converter. It ships with a single channel ST fibre SFP receiver for receiving 4K signals over long distances from a fibre-connected source. The Video Source Auto Switch Over function (SDI and optical inputs) provides automatic input changeover with selectable priority: Last Valid Input, Priority SDI or Priority Optical. It provides a monitoring connection from professional 4K 12G-SDI devices to displays with HDMI 2.0 inputs, with high frame rate support up to 60p for 4K/UltraHD, and can compensate for the difference between 4K and UltraHD rasters so that UltraHD monitors can be used in 4K productions and vice versa. Up to 16 channels of embedded SDI audio are accepted and passed to 8 channels of embedded HDMI audio, with an adjustable audio delay for synchronisation with the video. A 12G-SDI single link input with a reclocked SDI loop out allows SDI monitoring or pass-through.
The card is designed for high-density openGear 2RU frames, including AJA's OG-X-FR, and is monitored and controlled with Ross DashBoard software on Windows, macOS and Linux, from a connected computer or over the local network.
Key features
- Converts 12G-SDI to HDMI 2.0 at up to 4K 60p
- Single channel ST fibre SFP receiver included
- Automatic SDI/optical input switch-over with configurable priority
- 4:4:4, 4:2:2 or 4:2:0 HDMI 2.0 output
- 12-bit workflow support
- HDR10 metadata generation per HDMI v2.0b/CTA-861-G, HLG over HDMI, pass-through and optional override
- Embedded audio, 8-channel 24-bit, with audio delay
- Embedded audio pass-through of AC-3, E-AC-3 and DD+ Atmos (JOC)
- Reclocked 12G-SDI loop out
- Monitor and control via Ross DashBoard software
In the box
- 1x openGear card with ST fibre receiver SFP
Specifications
- SDI input: 1x 12G-SDI BNC, SMPTE-259/292/424/2081/2082, 8/10/12-bit, 2SI 4K/UltraHD mapping
- Fibre input: 1x 12G-SDI ST, SMPTE 297/259/292/424/2081/2082, Rx 1260-1620 nm, sensitivity -10 dBm (12 Gbps), -14 dBm (3 Gbps)
- Video output: 1x HDMI Type A, HDMI v2.0b, YCbCr 4:2:2/4:4:4/4:2:0 or RGB 4:4:4
- Audio: 16-channel SDI embedded in, 8-channel HDMI embedded out, 2-channel balanced analogue out on 3-pin terminal blocks
- Size: openGear standard form factor, front card and rear card, two slots per card
- Weight: 0.3 kg
- Power: 13 W max per card
- Operating temperature: 0 to 40 °C
| Product Condition | New |
|---|---|
| Manufacturer | Aja Video Systems |
| manufacturer code | OG-Hi5-12G-R-ST |
| Taric Code | 8471804000 |
