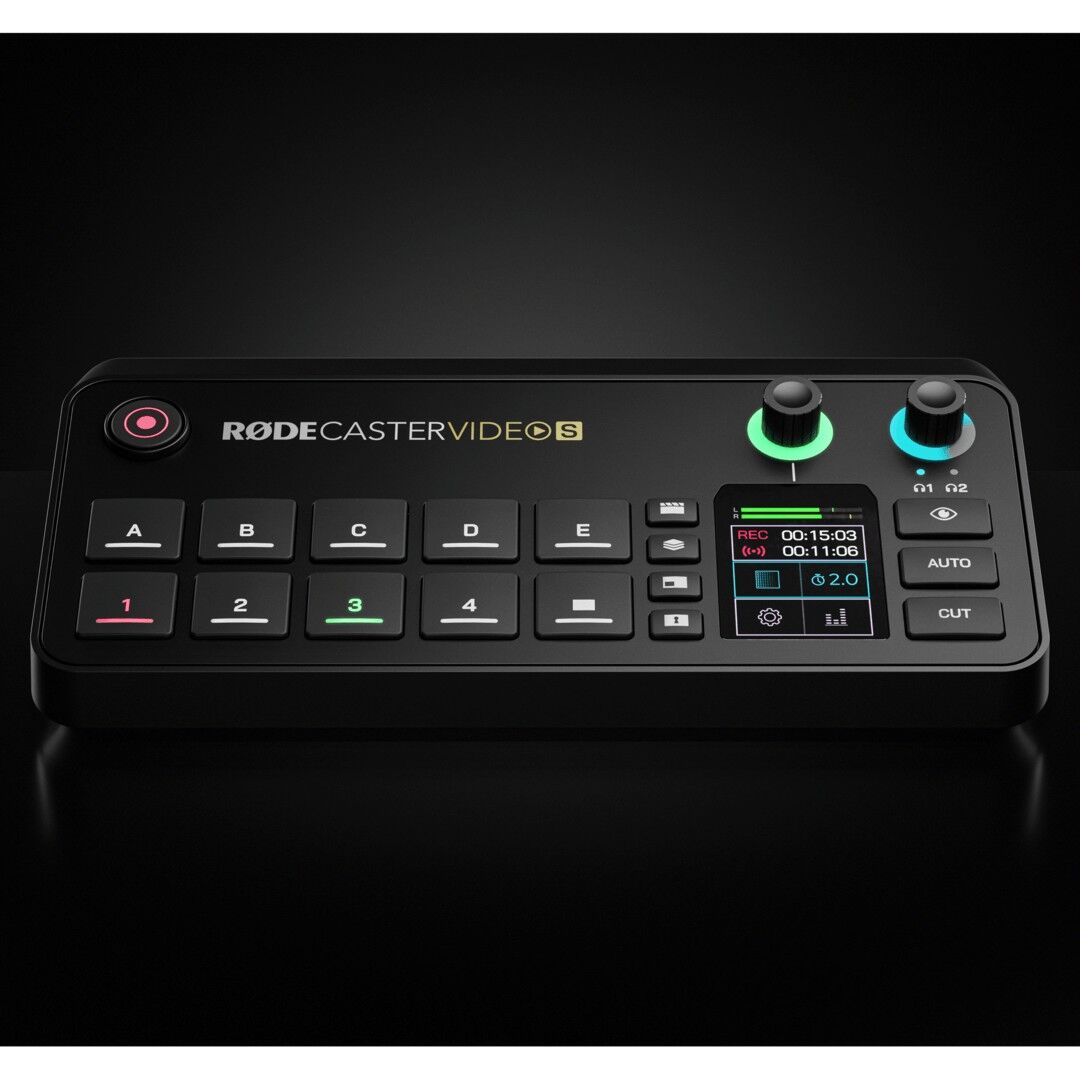

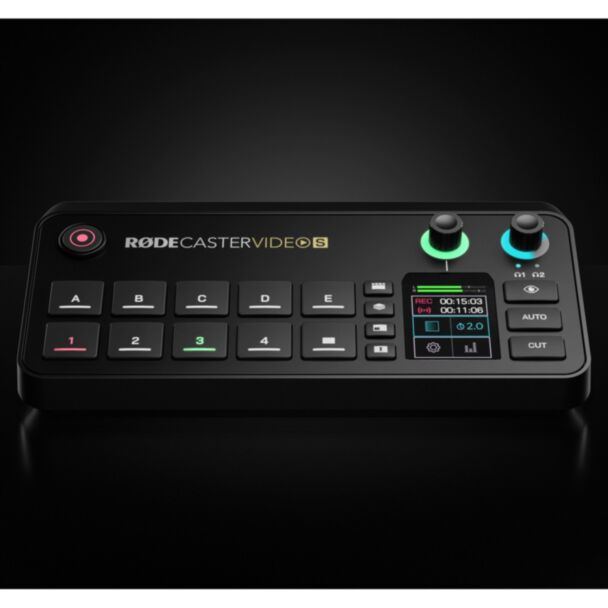

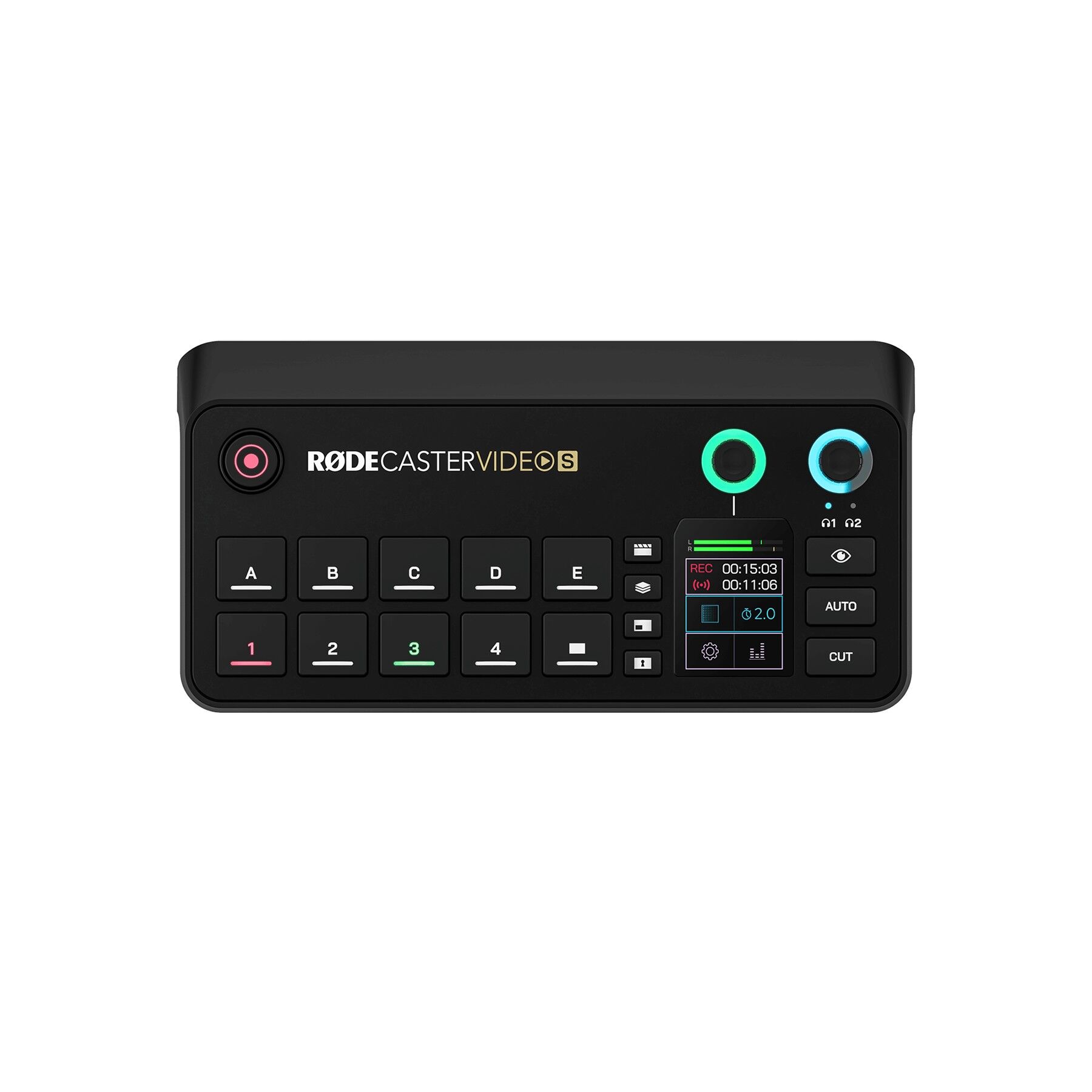

Røde RØDECaster Video S compact video and audio production console
GTIN: 0698813017393
In stock
SKU
ROD-RCVS
Special Price €424.93 €348.30 Regular Price €524.60
The compact version of the RØDECaster Video: an all-in-one console to switch four Full HD video sources, mix audio and stream or record without a computer. Three HDMI inputs and one USB-C input, two built-in RØDE wireless receivers, one configurable HDMI output, Wi-Fi 6, Bluetooth and NDI HX2 and HX3 support.
Røde RØDECaster Video S compact video and audio production console
The compact version of the RØDECaster Video: an all-in-one console to switch four Full HD video sources, mix audio and stream or record without a computer. Three HDMI inputs and one USB-C input, two built-in RØDE wireless receivers, one configurable HDMI output, Wi-Fi 6, Bluetooth and NDI HX2 and HX3 support.
Technical specifications
Video
| Simultaneous video sources | 4 |
|---|---|
| HDMI inputs | 3 type-A (HDMI 1.4b) |
| USB (UVC) inputs | 1 multi-function USB-C for UVC video |
| HDMI outputs | 1 configurable: preview, program, multiview |
| Input formats | 1920x1080p at 23.98, 24, 25, 29.97, 30, 50, 59.94, 60; 1920x1080i at 25, 29.97, 30 (HDMI only) |
| Output formats | 1920x1080p at 24, 25, 30, 50, 60 |
| HDMI input colour space | 4:4:4 RGB, 4:4:4 YUV, 4:2:2 YUV; 8, 10, 12-bit |
| USB input colour space | 4:2:2 YUV, 4:2:0 YUV (NV12) |
| Format and frame rate converters | on all HDMI and USB inputs |
Switching
| Simultaneous layers | 9, in Preview and Program |
|---|---|
| Downstream keyers | 2 (overlays and logo) |
| Chroma keyers | 2 |
| Media players | 2 simultaneous |
| Transitions | SMPTE wipes, dip and fade |
| Multiview | Program and preview, live input, scene and media thumbnails, audio mixer status |
| Media storage | 24 GB on-board storage; MP4 video, PNG and JPG images |
| Bluetooth | 5.3, for stereo audio input or phone calls |
Audio
| Analogue inputs | 2 combo jacks (microphone, line or instrument) with Revolution Preamps™ |
|---|---|
| Wireless inputs | 2 RØDE Series IV receivers |
| Analogue outputs | 2 headphone outputs (1/4 inch) |
| Audio mixer | 18 possible audio sources, 9 stereo channels simultaneously |
| Processing | APHEX® VoxLab™ on each channel |
| Preamps | 20 Hz – 20 kHz, up to 76 dB gain, equivalent input noise -131.5 dBV (A-weighted) |
| Sample rate and bit depth | 48 kHz; 32-bit streaming, 24-bit recording |
Streaming and recording
| Direct streaming | RTMP over Ethernet or Wi-Fi |
|---|---|
| Platforms | YouTube Live, Twitch, Facebook Live, X, custom server |
| Network | Ethernet 10/100/1000 and Wi-Fi 6 (2.4 and 5 GHz) |
| Recording media | external USB storage device (exFAT) |
| Video recording | Program feed as H.264/AVC MP4 with AAC stereo mix |
| ISO recording | 4 video inputs and the Program feed as independent H.264/AVC files (up to 1080p30) |
| Multitrack audio recording | 9 independent stereo WAV files |
| Operating systems | macOS 11 or later, Windows 10 (1803) or later, Windows 11 |
NDI
| Formats | NDI HX2, HX3 |
|---|---|
| Protocols | Single TCP, Multicast |
| Video codecs | H.264, HEVC/H.265, 4:2:0, 8-bit |
| Audio codecs | AAC-LC, L-PCM stereo at 48 kHz |
| Interface | wired Ethernet |
Power and dimensions
| Power | USB-C PD 45 W (20 V, 2.25 A) |
|---|---|
| Weight | 875 g |
| Dimensions | 253.5 x 128.4 x 60.2 mm |
| Product Condition | New |
|---|---|
| Manufacturer | Røde |
| manufacturer code | RCVS |
| Ean | 0698813017393 |
