Roland VC-100UHD

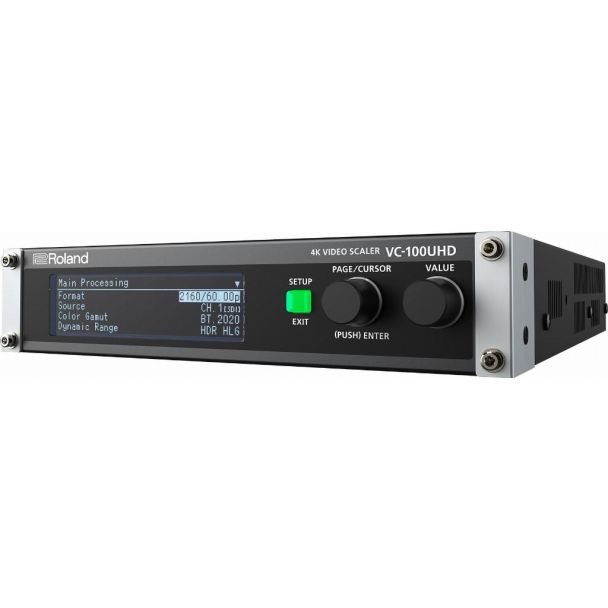

Roland VC-100UHD 4K Video Scaler

The Roland VC-100UHD is an A/V signal management unit for live events, fixed installations and livestreaming that combines several single-task devices in a compact half-rack design. With the Roland Ultra Scaler on board, the same video processor used in the V-600UHD switcher, it scales and converts a 12G-SDI or HDMI 2.0 source simultaneously to several destinations, such as 4K LED walls, HD displays and recorders, and a USB webcam stream.

Internal YCbCr 4:4:4 10-bit processing keeps the colour and gradation detail of the source, with Rec.601, 709 and 2020 colour gamut, HDR conversion and native DCI 4K resolution. High frame rate sources at 100, 120, 144, 200 and 240 Hz are supported on HDMI. Built-in effects rotate, flip and mirror the image, and the Region of Interest (ROI) function crops up to eight windows from a 4K input, which can be switched with a USB numeric keypad or from a V-160HD switcher over the network. The USB 3.0 output streams uncompressed 1080p without drivers, and the audio section embeds and de-embeds up to 16 input channels with delay on each output. A front-panel graphic LCD shows resolution, frame rate, HDCP, colour space and audio levels.

Key features

• 12G-SDI and HDMI 2.0 inputs and outputs with Roland Ultra Scaler
• Internal YCbCr 4:4:4 10-bit processing
• Simultaneous output to 4K, HD and USB streaming destinations
• HDR (HDR10, HLG) and Rec.2020 support, DCI 4K resolution
• High frame rates at 100, 120, 144, 200 and 240 Hz (HDMI input)
• Rotation, flip, colour correction, frame synchronizer and genlock
• ROI switching with up to eight windows via USB numeric keypad or V-160HD
• USB 3.0 webcam output for livestreaming
• Audio patching with embed/de-embed of up to 16 channels and output delay
• Front-panel graphic LCD, remote control over LAN

In the box

• 1 x owner's manual
• 1 x leaflet "Using the unit safely"
• 1 x AC adaptor
• 1 x power cord
• 4 x rubber feet
• 1 x rack mount angle set
• 1 x DC plug stopper

Specifications

• Video processing: 4:4:4 (Y/Cb/Cr), 10-bit
• SDI formats: 2160p DCI and UHD up to 60 Hz, 1080p DCI and FHD up to 60 Hz, 1080i 59.94/50 Hz, 720p 60/59.94/50 Hz
• HDMI formats: 2160p DCI and UHD up to 60 Hz, 1080p, 1080i, 720p, 2560 x 1440 up to 144 Hz, 1920 x 1080 up to 240 Hz (input and through output), PC resolutions from 1280 x 800 to 1920 x 1200; HDCP 1.4 and 2.2
• Colour gamut / dynamic range: Rec.601, Rec.709, Rec.2020 / SDR, HDR PQ (HDR10), HDR HLG
• USB streaming: UVC uncompressed 4:2:2 8-bit, 1080p, 720p, 640 x 480; audio UAC 16-bit 48 kHz 2 ch
• Video functions: 4K scaler, FHD down scaler for USB streaming, fade to black, test pattern generator, rotation, flip H/V, edge enhancer, motion adaptive deinterlacer, colour correction, dynamic range conversion, frame rate conversion up to 240 Hz
• Audio processing / formats: 24-bit / 48 kHz; 12G-SDI 16 ch, HDMI 8 ch (linear PCM)
• Audio levels: LINE IN/OUT -10 dBu (max +8 dBu); AUDIO IN/OUT +4 dBu (max +24 dBu); input impedance LINE 38 kΩ, AUDIO 15 kΩ; output impedance LINE 1 kΩ, AUDIO 600 Ω
• Audio functions: output level, patchbay, delay, equalizer, mastering, test tone generator
• Input connectors: 12G-SDI IN (BNC), HDMI 4K IN (type A), LINE IN (RCA), AUDIO IN (DB-25, balanced 2 ch), REFERENCE IN (BNC: black burst, bi-level, tri-level)
• Output connectors: 12G-SDI OUT and THRU (BNC), HDMI 4K OUT (type A), STREAMING (USB type B, USB 3.0), LINE OUT (RCA), AUDIO OUT (DB-25, balanced 2 ch), REFERENCE THRU/OUT (BNC)
• Other connectors: USB HOST (USB A, USB 2.0, for USB flash drive), REMOTE (RJ45, 100BASE-TX)
• Other functions: EDID emulator, genlock, 8 preset memories
• Display: graphic LCD, 256 x 64 dots
• Power: AC adaptor, current draw 2.3 A (DC 24 V), power consumption 55 W
• Operating temperature: 0 to +40 °C
• Dimensions: 210 x 284.5 x 43 mm (W x D x H)
• Weight: 2.2 kg (excluding accessories)
