Roland VP-42H WUXGA
GTIN: 4957054513320
Roland VP-42H video processor combining up to four HDMI sources on a single screen with Motion Scene Switching, keyer, browser-based setup, 10-bit 4:4:4 processing and audio de-embedding/embedding.

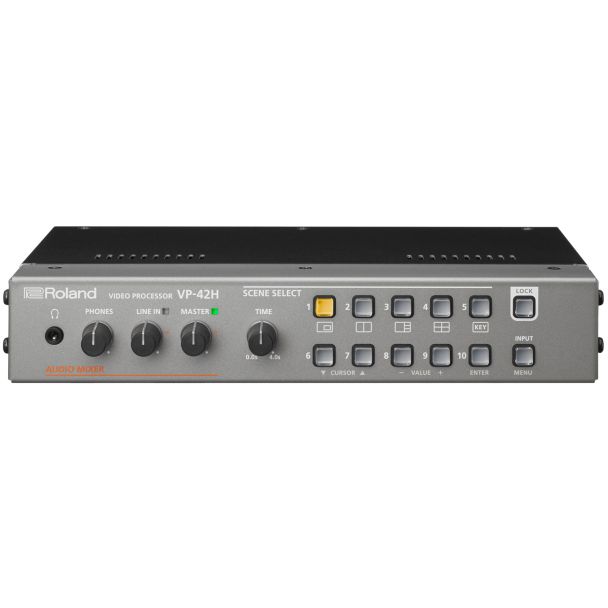

Roland VP-42H Video Processor
The VP-42H layers and arranges up to four HDMI video sources on a single screen with dynamic transitions, for presentations, digital signage, events and meetings. Scenes with preset arrangements of layered sources in customisable inset windows can be recalled instantly, and Motion Scene Switching moves and resizes the windows smoothly to their new positions at the touch of a button. For simpler events it works as a seamless cross-dissolve switcher with a keyer for overlays and still images from a USB drive.
Stereo RCA outputs de-embed audio from HDMI sources to speakers and mixers, with levels set by the internal mixer, while external audio connected to the RCA inputs can be embedded into the HDMI output. Scenes are configured in a web browser over the network: each layer can be scaled, cropped, zoomed and positioned by clicking and dragging, even from a tablet. Video processing is 10-bit 4:4:4.
Key features
- Up to four HDMI sources on a single output
- Motion Scene Switching between window layouts
- Keyer for overlays
- Still images from USB drive
- Browser-based setup and remote switching
- Audio de-embedding and embedding via RCA
Specifications
- Inputs/outputs: 4 x HDMI in, 2 x HDMI out, RCA audio in/out
- Processing: 10-bit 4:4:4
- Resolutions: up to 1920 x 1200
- Ports: RS-232, RJ-45, USB
- Power consumption: 25 W (AC adapter included)
- Dimensions: 242 x 125 x 44 mm
- Weight: 1.2 kg
| Product Condition | New |
|---|---|
| Manufacturer | Roland |
| manufacturer code | VP-42H |
| Ean | 4957054513320 |
| Rack mounting | Yes |
| Modified on | 25-07-2021 |
| Product title | Roland VP-42H WUXGA |
| Long Product Name | 1920 x 1200, 4:4:4 (Y/Pb/Pr, RGB)/10 bits, 4:2:2 (Y/Pb/Pr)/10 bits, 50/59.94 Hz, HDMI, RS-232, RJ-45, USB |
| Product specifications | VideoHD type* WUXGA Analog signal format system NTSC, PAL Video resolutions 800 x 600,1024 x 768,1280 x 1024,1280 x 720,1280 x 800,1366 x 768,1400 x 1050,1600 x 1200,1920 x 1080,1920 x 1200 Supported video modes 480i, 480p, 576i, 576p, 720p, 1080i, 1080p Compression ratio 4:4:4 Video processing 10 bit PerformanceChannels quantity 4 channels Number of layers 4 Audio formats supported PCM Image formats supported BMP NetworkEthernet LAN* Yes Ports & interfacesHDMI in 4 Number of HDMI outputs 2 Audio (L/R) in 1 Audio (L/R) out 1 USB 2.0 ports quantity 1 PowerPower source type* AC Output current 2.1 A Power consumption (max) 25 W DesignRack mounting* Yes On/off switch Yes Operational conditionsOperating temperature (T-T) 0 - 40 °C Weight & dimensionsWidth 242 mm Depth 125 mm Height 44 mm Weight 1.2 kg Packaging contentAC adapter included Yes Manual Yes |
| Essential qualities |
|
| HD type | WUXGA |
| Ethernet LAN | Yes |
| Power source type | AC |
