Roland XS-1HD video mixer Full HD
GTIN: 4957054510367
Roland XS-1HD compact multi-format matrix switcher with 4 HDMI inputs and 4 HDMI outputs, scalers and frame synchronisers on all inputs, Matrix, Switcher and Split modes and 8-channel audio mixer.

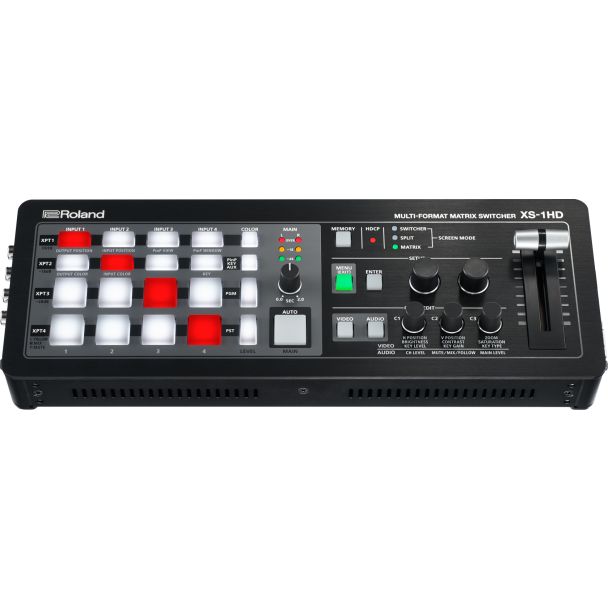

Roland XS-1HD Multi-Format Matrix Switcher
The XS-1HD is a tabletop matrix switcher the width of a 13" laptop, with four HDMI inputs and four HDMI outputs and 4:4:4/10-bit processing up to WUXGA/1080p. Every input has a scaler and frame synchroniser, so sources with different formats can be positioned and zoomed, and a built-in EDID emulator makes computers send the correct resolution. It suits live events, exhibits, stage events, conferences, meeting and banquet rooms.
Matrix mode routes four sources to any of four outputs, such as main and secondary screens, presenter monitor and signage. Switcher mode provides real-time switching with multiview preview, PinP, key compositing and dissolves, and Split mode shows up to four images side by side with up to three inset windows. A built-in eight-channel digital audio mixer handles the audio of the four HDMI signals plus a stereo analog input. Settings are stored as presets, still images can be loaded from USB, the unit is HDCP compliant and RS-232 allows third-party control.
Key features
- 4 HDMI inputs and 4 HDMI outputs
- 4:4:4/10-bit processing up to WUXGA/1080p
- Scaler and frame synchroniser on every input
- Matrix, Switcher and Split modes
- Eight-channel digital audio mixer
- EDID emulator, HDCP compliant
- Still images from USB flash drive
- Preset memories, RS-232 control
Specifications
- Power consumption: 25 W (AC adapter included)
- Dimensions: 328 x 117 x 57 mm
- Weight: 1.2 kg
| Product Condition | New |
|---|---|
| Manufacturer | Roland |
| manufacturer code | XS-1HD |
| Ean | 4957054510367 |
| Modified on | 21-10-2017 |
| Product title | Roland XS-1HD video mixer Full HD |
| Long Product Name | XS-1HD, 24 bits/48 kHz, HDMI, HDCP, RS-232, USB, 328x117x57 mm |
| Product specifications | VideoHD type* Full HD Analog signal format system NTSC, PAL Video resolutions 800 x 600,1024 x 768,1280 x 1024,1280 x 720,1366 x 768,1400 x 1050,1600 x 1200,1920 x 1080,1920 x 1200 Supported video modes 480i, 480p, 576i, 576p, 720p, 1080i, 1080p Video processing 10 bit NetworkEthernet LAN* No DisplayBuilt-in display* No Ports & interfacesHDMI in 4 Number of HDMI outputs 4 Audio (L/R) in 1 Audio (L/R) out 1 USB 2.0 ports quantity 1 DC-in jack Yes PowerPower source type* AC PowerOutput current 2.1 A Power consumption (max) 25 W DesignProduct colour Black On/off switch Yes Operational conditionsOperating temperature (T-T) 0 - 40 °C Weight & dimensionsWidth 328 mm Depth 117 mm Height 57 mm Weight 1.2 kg Packaging contentCables included AC AC adapter included Yes Manual Yes |
| Essential qualities |
|
| HD type | Full HD |
| Ethernet LAN | No |
| Built-in display | No |
| Power source type | AC |
