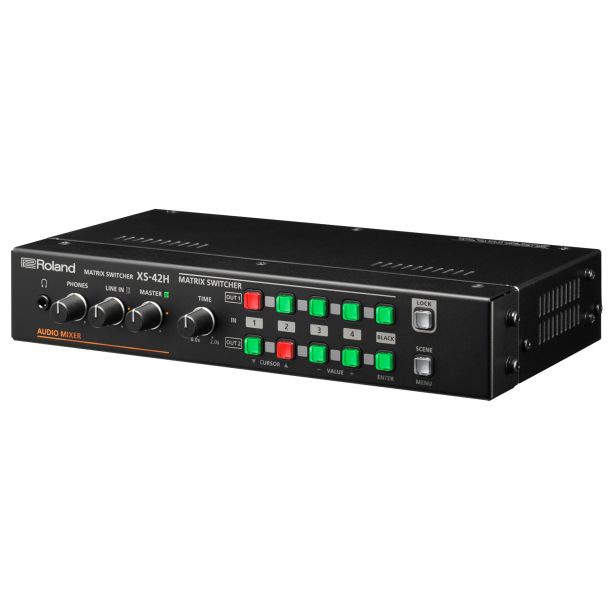

Roland XS-42H Media presentation matrix switcher 25 W
GTIN: 4957054513313
Roland XS-42H meeting room switcher connecting up to four HDMI sources to one or two displays, with auto input detection, browser control, scaling, EDID and presets.
Roland XS-42H AV Matrix Switcher for Meeting Rooms
The XS-42H lets anyone connect computers and tablets over HDMI and immediately share content on one or two screens, turning a flat-panel TV into a meeting room system for huddle spaces. It installs in minutes without AV experience, and the supplied mounting bracket allows it to be placed out of sight. Inputs can be switched from a web browser on a computer, tablet or smartphone on the same network.
Auto input detection switches to a newly connected device, while EDID and scaling ensure sources at different resolutions display correctly. When a computer is disconnected, the XS-42H can return to a specified input, such as a stored still image with the company logo, instead of a black screen. Meeting presets recall common setups with one button, and audio switches automatically with video.
Key features
- Up to four HDMI inputs to one or two displays
- Control from a web browser on tablet, phone or PC
- Auto input detection
- EDID and scaling for different resolutions
- Meeting presets
- Audio follows video switching
- Mounting bracket included
Specifications
- Inputs/outputs: 4 x HDMI in, 2 x HDMI out
- Max resolution: 1920 x 1200, HDCP
- Ports: RJ-45, RS-232, 2 x USB
- Audio: 24-bit, 48 kHz
- Power consumption: 25 W (AC adapter included)
- Dimensions: 242 x 125 x 44 mm
- Weight: 1.2 kg
| Product Condition | New |
|---|---|
| Manufacturer | Roland |
| manufacturer code | XS-42H |
| Ean | 4957054513313 |
| Modified on | 25-07-2021 |
| Product title | Roland XS-42H Media presentation matrix switcher 25 W |
| Long Product Name | 48 kHz, 24 bits, NTSC, PAL, HDMI, RS-232, RJ45 x 1, USB, 242 x 125 x 44 mm, 1.2 kg |
| Product specifications | FeaturesProduct type* Media presentation matrix switcher Maximum resolution 1920 x 1200 pixels HDCP Yes DesignHousing colour Black Control type Buttons, Rotary On/off switch Yes Rubber feet Yes Ports & interfacesHDMI input ports quantity 4 HDMI output ports quantity 2 RJ-45 input ports 1 USB connector type USB Type-A USB ports quantity 2 Ethernet LAN (RJ-45) ports 1 RS-232 ports 1 PowerPower consumption (max)* 25 W Input current 2.1 A Operational conditionsOperating temperature (T-T) 0 - 40 °C Weight & dimensionsWidth 242 mm Depth 125 mm Height 44 mm Weight 1.2 kg Packaging contentCables included AC Rack mount kit Yes AC adapter included Yes |
| Essential qualities |
|
| Product type | Media presentation matrix switcher |
| Power consumption (max) | 25 W |
