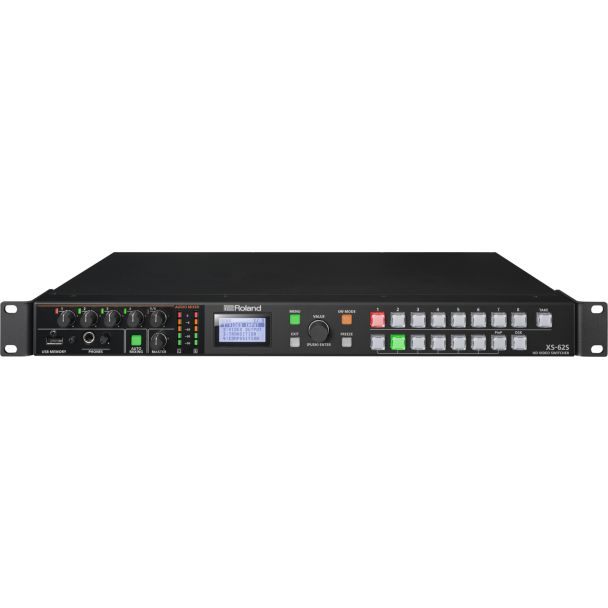

Roland XS-62S video mixer Full HD
GTIN: 4957054511616
Roland XS-62S 1U rackmount 6-channel video switcher (4 SDI + 2 HDMI inputs) with audio mixer, auto mixing, Matrix and PGM/PST modes and PTZ camera control.
Roland XS-62S 6-Channel Video Switcher with PTZ Control
The XS-62S is a compact 1U rackmount six-channel video switcher with audio mixer and PTZ camera control for permanent installations and on-site events, such as presentation and performance venues, corporate AV, e-learning classrooms, houses of worship, hotels, live streaming and web conferencing. It is operated from the front-panel buttons and menu screen or from a PC or Mac with the RCS remote control software.
Matrix mode sends different content to two or three screen destinations, while PGM/PST mode works as a traditional switcher with cross-dissolves and Aux bus delegation for a confidence monitor or additional screens. Programmable presets recall PTZ camera positions with one touch, so a single operator can switch video and control cameras. The audio section offers auto mixing for panels of microphones plus EQ, dynamics and delay for speech, music and embedded audio.
Key features
- 6-channel switcher: 4 x SDI and 2 x HDMI inputs
- Matrix mode and PGM/PST mode with Aux bus
- PTZ camera control with presets
- Audio mixer with auto mixing, EQ, dynamics and delay
- Remote control software (RCS) for PC and Mac
- 1U rackmount
Specifications
- Outputs: 2 x SDI, 3 x HDMI
- Audio: XLR outputs, analog L/R in and out
- Control ports: RS-232, RS-422, RJ-45, USB
- Power consumption: 31 W (AC adapter included)
- Dimensions: 481 x 333 x 44 mm
- Weight: 3.6 kg
| Product Condition | New |
|---|---|
| Manufacturer | Roland |
| manufacturer code | XS-62S |
| Ean | 4957054511616 |
| Rack mounting | Yes |
| Modified on | 03-04-2018 |
| Product title | Roland XS-62S video mixer Full HD |
| Long Product Name | XS-62S, HDMI, SDI BNC, HDCP, RS-232, RS-422, RJ-45, XLR, USB, 481x333x44 mm |
| Product specifications | VideoHD type* Full HD Analog signal format system NTSC, PAL Video resolutions 640 x 480,800 x 600,1024 x 768,1280 x 1024,1366 x 768,1400 x 1050,1600 x 1200,1920 x 1200 Supported video modes 480i, 480p, 576i, 576p, 720p, 1080i, 1080p Compression ratio 4:2:2 Video processing 8 bit NetworkEthernet LAN* Yes Ethernet LAN data rates 100 Mbit/s Cabling technology 10/100Base-T(X) DisplayBuilt-in display* Yes Display type LCD Display resolution 128 x 64 pixels Ports & interfacesHDMI in 2 Number of HDMI outputs 3 BNC input ports 4 BNC output ports 2 XLR out 2 Audio (L/R) in 1 Audio (L/R) out 1 Ethernet LAN (RJ-45) ports 1 Ports & interfacesUSB 2.0 ports quantity 1 DC-in jack Yes PowerPower source type* AC Output current 2.6 A Power consumption (max) 31 W DesignRack mounting* Yes Product colour Black On/off switch Yes Operational conditionsOperating temperature (T-T) 0 - 40 °C Weight & dimensionsWidth 481 mm Depth 333 mm Height 44 mm Weight 3.6 kg Packaging contentCables included AC AC adapter included Yes Manual Yes |
| HD type | Full HD |
| Ethernet LAN | Yes |
| Built-in display | Yes |
| Power source type | AC |
