Sonnet USB3C-8PM-E interface cards/adapter Internal USB 3.2 Gen 2 (3.1 Gen 2)
GTIN: 0732311013508
Sonnet Allegro Pro USB-C 8-Port PCIe card with eight 10 Gbps USB-C ports, four USB 3.2 controllers and an x8 PCIe 3.0 bridge for full bandwidth per port, compatible with Mac Pro 2019/2023.

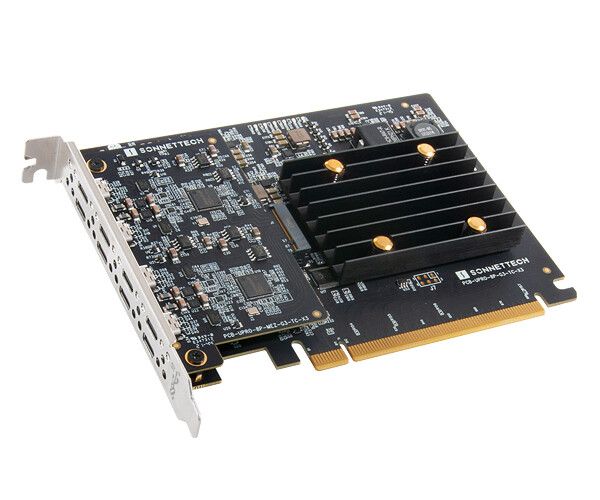

Sonnet Allegro Pro USB-C 8-Port PCIe Card USB3C-8PM-E
The Sonnet Allegro Pro USB-C 8-Port PCIe Card fits eight high-performance USB-C ports on a standard full-height bracket, spaced to accept eight cables or USB-C to USB-A adapters. Unlike cards that share one controller among all ports, it uses four USB 3.2 controllers and an x8 PCIe bridge chip so that, in a PCIe 3.0 or 4.0 slot, every port gets full 10 Gbps bandwidth, up to 1000 MB/s even with several drives transferring at once. Ports are powered with protected power delivery, four independent physical connections can be assigned to virtual machines, and the card works well in Thunderbolt expansion systems.
Key features
- Eight 10 Gbps USB-C ports
- Four USB 3.2 controllers and x8 PCIe 3.0 bridge
- Full bandwidth per port, up to 1000 MB/s
- Powered ports with protected power delivery
- Four independent connections for virtual machines
- Hot-swappable devices
- Compatible with Mac Pro 2019/2023, Windows and Linux
Specifications
- Colour: black
| Product Condition | New |
|---|---|
| Manufacturer | Sonnet Technologies |
| manufacturer code | USB3C-8PM-E |
| Ean | 0732311013508 |
| Modified on | 25-04-2022 |
| Warranty | 2 years |
| Product title | Sonnet USB3C-8PM-E interface cards/adapter Internal USB 3.2 Gen 2 (3.1 Gen 2) |
| Long Product Name | 8-port, USB-C 10Gbps (USB 3.2 Gen 2) PCIe Card with Four USB Controllers Plus USB-C Charging for USB Peripherals |
| Product specifications | Ports & interfacesHost interface* PCIe Output interface* USB 3.2 Gen 2 (3.1 Gen 2) Expansion card form factor Low-profile Expansion card standard PCI 3.0 USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity 8 DesignInternal* Yes Product colour Black Easy to install Yes FeaturesData transfer rate (max) 10 Gbit/s System requirementsWindows operating systems supported Yes Mac operating systems supported Yes Linux operating systems supported Yes Technical detailsWarranty period 2 year(s) Packaging dataQuantity per pack 1 pc(s) |
| Essential qualities |
|
| Host interface | PCIe |
| Output interface | USB 3.2 Gen 2 (3.1 Gen 2) |
| Internal | Yes |
