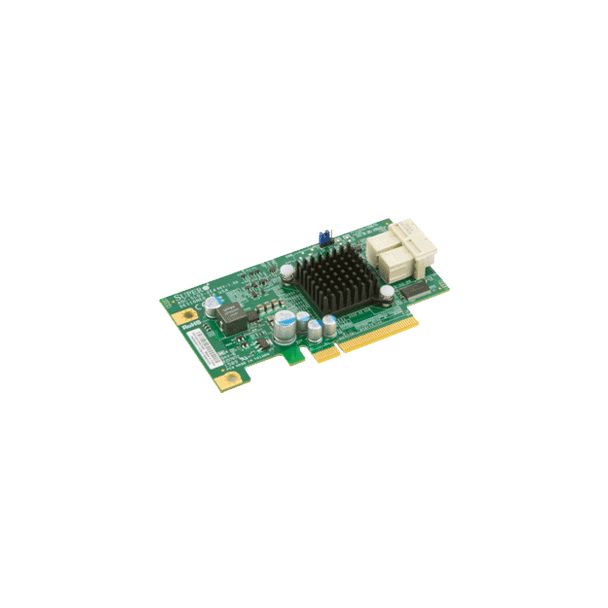

Supermicro AOC-SLG3-2E4 interface cards/adapter Internal Mini-SAS
GTIN: 0672042160365
In stock
SKU
SUP-AOC-SLG3-2E4
Special Price €265.47 €217.60 Regular Price €288.55
PCIe 3.0 NVMe host bus adapter with two internal SFF-8643 connectors and Avago PLX PE8718 switch, supporting two NVMe devices at up to 3.2 GB/s per port.
Supermicro AOC-SLG3-2E4 Dual-Port NVMe PCIe 3.0 HBA

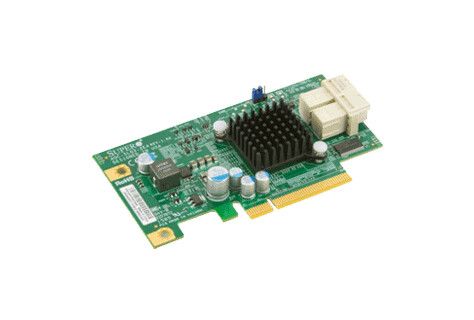

The Supermicro AOC-SLG3-2E4 provides two internal NVMe connectors (SFF-8643) for high-performance storage connectivity. This pure HBA card is built on the PLX PE8718 PCIe switch and NVMe technology, meeting the demand for data throughput and scalability on enterprise servers, embedded/IPC systems and desktop workstations. It is well suited to nearline cache storage, where data waits before being flushed to backend storage.
Key features
- Avago PLX PE8718 dual-port PCIe 3.0 NVMe controller
- 2 x internal SFF-8643 connectors
- 4 lanes per port, up to 3.2 GB/s per port
- Supports 2 physical NVMe devices
- Pure HBA
Specifications
- Host interface: PCIe 3.0
- Power consumption: 6 W
- Dimensions: 68.6 x 119.4 mm
- Operating temperature: 10 to 55 °C
- OS support: Windows Server 2012, Red Hat 7.0, Ubuntu 14.04, SUSE 12, CentOS 7.0
| Product Condition | New |
|---|---|
| Manufacturer | Supermicro |
| manufacturer code | AOC-SLG3-2E4 |
| Ean | 0672042160365 |
| Product title | Supermicro AOC-SLG3-2E4 interface cards/adapter Internal Mini-SAS |
| Long Product Name | PCI-E 3.0 NVMe, 2x SFF 8643, Avago PLX PE8718, 68.58x119.38 mm |
| Product specifications | Ports & interfacesHost interface* PCIe Output interface* Mini-SAS Expansion card standard PCIe 3.0 Internal mini-SAS ports 2 DesignInternal* Yes Product colour Green FeaturesData transfer rate (max) 3.2 Gbit/s PowerPower consumption (typical) 6 W Operational conditionsOperating temperature (T-T) 10 - 55 °C System requirementsLinux operating systems supported CentOS 7.0, Red Hat Enterprise Linux WS 7.0, SuSE Linux 12.0, Ubuntu 14.04 Server operating systems supported Windows Server 2012 Technical detailsCompliance certificates RoHS Weight & dimensionsWidth 68.6 mm Depth 119.4 mm |
| Essential qualities |
|
| Host interface | PCIe |
| Output interface | Mini-SAS |
| Internal | Yes |
