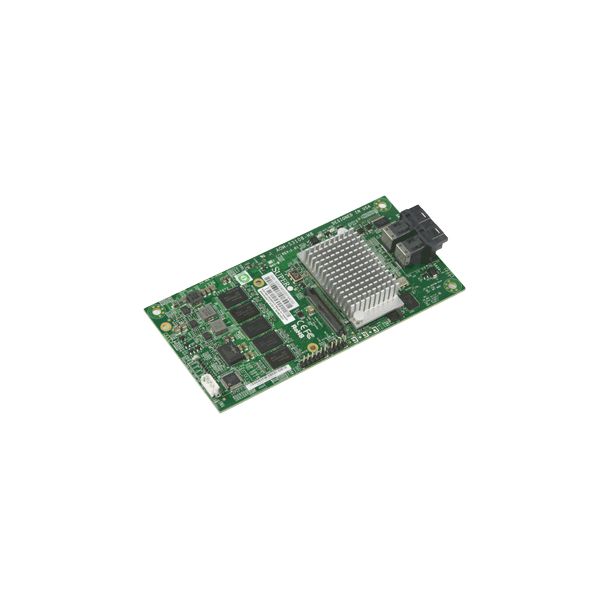

Supermicro AOM-S3108M-H8 interface cards/adapter Internal SAS
GTIN: 0672042169160
In stock
SKU
SUP-AOM-S3108M-H8
Special Price €703.35 €576.52 Regular Price €764.51
Low-profile MegaRAID module with Broadcom 3108 SAS-3 controller, 8 internal 12Gb/s ports, 2 GB DDR3 cache and RAID 0, 1, 5, 6, 10, 50, 60, designed for blade systems.

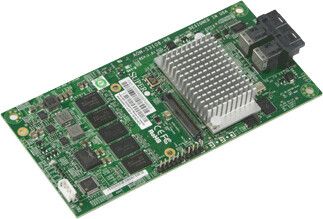

Supermicro AOM-S3108M-H8 12Gb/s 8-Port SAS3 RAID Module
The Supermicro AOM-S3108M-H8 is a low-profile MegaRAID module with eight internal SAS ports for high-performance storage connectivity, designed for blade systems. It is built on the Broadcom 3108 I/O processor and MegaRAID technology, with a high-performance RAID architecture including hardware RAID 5 and 6, for cost-effective storage with SATA drives and maximum performance and reliability with SAS drives. An optional supercap/TFM unit protects cached data even in the event of serious system failures.
Key features
- Broadcom 3108 8-port PCIe SAS-3 controller
- 8 internal ports, 12 Gb/s per port
- Supports 16 physical devices
- RAID 0, 1, 5, 6, 10, 50, 60
- On-board hardware I/O processor
- 2 GB 1866 MHz DDR3 on-card cache
- Supports 1.5, 3, 6 and 12 Gb/s SAS and SATA rates
- Supports SSP, SMP, STP and SATA protocols
- Supports FastPath and CacheCade (AOC-CHCD-PRO2-ESW)
Specifications
- Dimensions: 76.2 x 152.4 mm
- Cooling: passive
- Operating temperature: 10 to 50 °C
| Product Condition | New |
|---|---|
| Manufacturer | Supermicro |
| manufacturer code | AOM-S3108M-H8 |
| Ean | 0672042169160 |
| Product title | Supermicro AOM-S3108M-H8 interface cards/adapter Internal SAS |
| Long Product Name | 12Gb/s, 2GB 1866MHz DDR3 cache, RAID |
| Product specifications | Ports & interfacesHost interface* PCIe Output interface* SAS Expansion card form factor Low-profile DesignInternal* Yes Cooling type Passive FeaturesBuilt-in processor Yes Data transfer rate (max) 12 Gbit/s RAID levels 0, 1, 5, 6, 10, 50, 60 Operational conditionsOperating temperature (T-T) 10 - 50 °C System requirementsWindows operating systems supported Yes Linux operating systems supported Yes Weight & dimensionsWidth 76.2 mm Height 152.4 mm Packaging dataQuantity per pack 1 pc(s) Quantity 1 Logistics dataHarmonized System (HS) code 84733020 |
| Essential qualities |
|
| Host interface | PCIe |
| Output interface | SAS |
| Internal | Yes |
