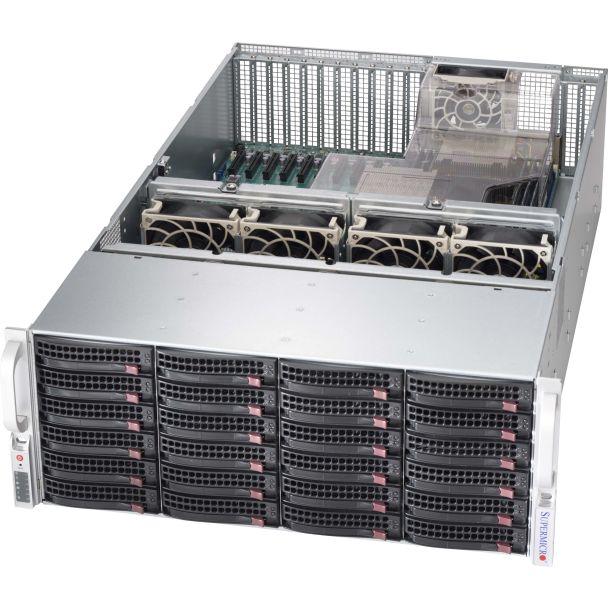

Supermicro CSE-846XA-R1K23B computer case Rack Black 1200 W
GTIN: 0672042197521
4U rackmount chassis for E-ATX/ATX motherboards with 24 x 3.5" hot-swap SAS2/SATA3 bays on a direct-attached backplane, up to 13 full-height slots and redundant 1200 W Titanium power supplies, black.
Supermicro SuperChassis 846XA-R1K23B 4U Storage Chassis 1200 W Redundant
The Supermicro SuperChassis 846XA-R1K23B is a 4U chassis for E-ATX and ATX motherboards that combines storage capacity with numerous I/O slots. It offers twenty-four 3.5" hot-swap SAS2/SATA3 drive bays on a direct-attached backplane with Mini-iPass (SFF-8087) connectivity, two 2.5" bays and support for up to 13 full-height, full-length expansion slots. Redundant 1200 W Titanium Level supplies and five hot-plug redundant fans with an adjustable air shroud provide 100% cooling redundancy, and two 1000 W battery backup power modules are supported.
Key features
- 24 x 3.5" hot-swap SAS2/SATA3 drive bays, direct-attached backplane
- 2 x 2.5" drive bays
- Mini-iPass (SFF-8087) connectivity
- Up to 13 full-height, full-length expansion slots
- Redundant 1200/1000 W Titanium Level power supplies
- 4 x 8 cm hot-swap redundant PWM fans and 1 x 8 cm hot-swap exhaust fan with air shroud
- Supports two 1000 W battery backup power modules
Specifications
- Form factor: 4U rackmount
- Dimensions: 437 x 736 x 178 mm (W x D x H)
- Operating temperature: 5 to 35 °C
- Colour: black
| Product Condition | New |
|---|---|
| Manufacturer | Supermicro |
| manufacturer code | CSE-846XA-R1K23B |
| Ean | 0672042197521 |
| Form factor | Rack |
| Type | Server |
| Product colour | Black |
| Supported motherboard form factors | ATX, EATX |
| Number of 3.5" bays | 24 |
| Product title | Supermicro CSE-846XA-R1K23B computer case Rack Black 1200 W |
| Long Product Name | 4U, E-ATX/ATX, 13 x Expansion slots, 2 x 2.5", 24 x 3.5", LEDs, 4x 8cm hot-swap redundant PWM cooling fans, 1x 8cm hot-swap exhaust fans & air shroud, PSU 1200/1000 W, Black |
| Product specifications | DesignForm factor* Rack Type* Server Product colour* Black Supported motherboard form factors* ATX, EATX Number of 3.5" bays* 24 Number of expansion slots 11 Rack mounting Yes Rack capacity 4U Side window No Reset button Yes LED indicators Fan fail, HDD, LAN, Power, Power fail, System Certification Titanium Certified
USA - UL listed, FCC
Canada - CUL listed
Germany - TUV Certified
Europe/CE Mark
EN 60950/IEC 60950-Compliant Power supplyPower supply included* Yes Power supply 1200 W CoolingCooling Yes StorageSupported HDD sizes* 2.5,3.5" Hot-swap Yes Operational conditionsOperating temperature (T-T) 5 - 35 °C Storage temperature (T-T) -40 - 60 °C Operating relative humidity (H-H) 8 - 90% Storage relative humidity (H-H) 5 - 95% Weight & dimensionsWidth 437 mm Depth 736 mm Height 178 mm Packaging dataPackage weight 34 kg Logistics dataHarmonized System (HS) code 84733080 Other featuresRedundant fans support Yes |
| Essential qualities |
|
| Power supply included | Yes |
| Supported HDD sizes | 2.5,3.5" |
