Supermicro SSD-DM064-SMCMVN1 internal solid state drive 64 GB DOM Serial ATA III MLC

Supermicro SuperDOM 64GB SATA DOM SSD-DM064-SMCMVN1

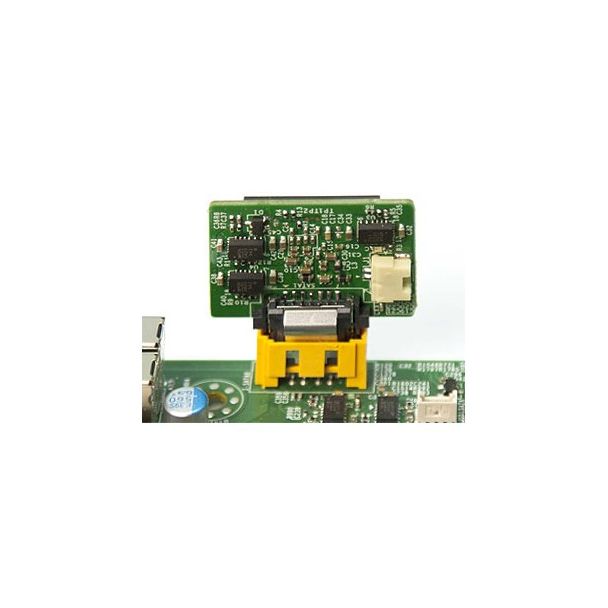

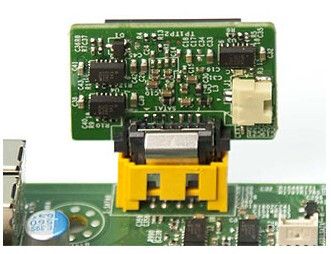

The Supermicro SSD-DM064-SMCMVN1 is a 64 GB SuperDOM, a small SATA3 (6 Gb/s) flash module that plugs directly into a serverboard SATA connector to provide solid-state storage that behaves like a hard disk drive. With no moving parts it is reliable, compact and light, and uses about 1-2 W compared with 6-7 W for an HDD. Thanks to its design it does not require a 5 V power cable, while remaining compatible with serverboards that need one. It is intended as a boot drive, backup and recovery device, license drive, OS installation device or embedded storage, and supports Supermicro SuperServer systems.

Key features

• SATA DOM that plugs directly into the motherboard SATA connector
• No 5 V power cable required on SuperDOM ports; backward compatible with boards that need it
• No moving parts, low power consumption
• For boot, recovery, license, OS installation and embedded storage

Specifications

• Capacity: 64 GB
• Interface: SATA III (6 Gb/s)
• Flash type: MLC
• Read speed: 520 MB/s
• Write speed: 95 MB/s
• Power consumption: 1.4 W read, 1.6 W write, 0.27 W idle
