Supermicro SuperChassis 842XTQC-R804B Rack Black 800 W
GTIN: 0672042370016
In stock
SKU
SUP-CSE-842XTQC-R804B
Special Price €1,093.17 €896.04 Regular Price €1,188.23
4U server chassis for E-ATX motherboards up to 15.2" x 13.2", with 5 x 3.5" hot-swap SAS3/SATA3 bays, 3 x 5.25" bays, 11 expansion slots and redundant 800 W Platinum power supplies, black.
Supermicro SuperChassis 842XTQC-R804B 4U Chassis 800 W Redundant

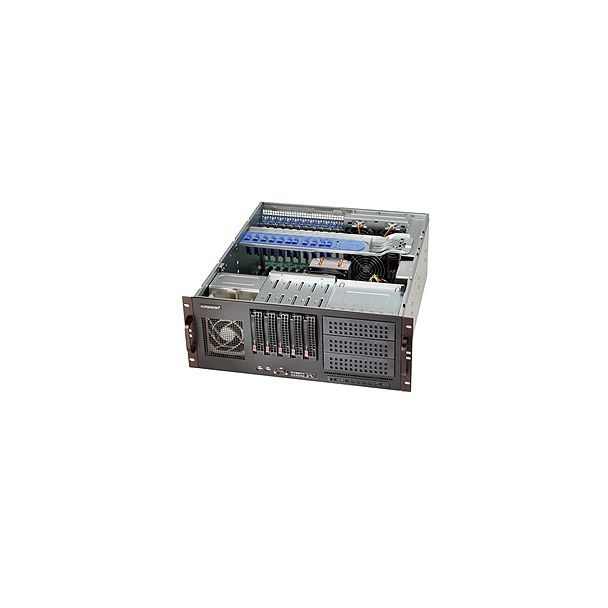

The Supermicro SuperChassis 842XTQC-R804B is a 4U chassis supporting E-ATX motherboards up to 15.2" x 13.2". It offers five 3.5" SAS3/SATA3 hot-swap drive bays, three 5.25" peripheral bays and a slim DVD-ROM bay, with seven full-height full-length and four full-height half-length expansion slots. A dual-channel air duct design, front intake fan and optional front bezel with removable air filter manage cooling, and power comes from redundant 800 W Platinum Level (94%) supplies.
Key features
- 5 x 3.5" SAS3/SATA3 hot-swap drive bays
- 3 x 5.25" peripheral bays and 1 x slim DVD-ROM bay
- 7 full-height full-length and 4 full-height half-length expansion slots
- Redundant 800 W Platinum Level (94%) power supplies
- Dual-channel air duct, front intake fan
- Optional front bezel with removable air filter
- 2 x front USB 3.0 and 1 x COM port
- Power switch, reset switch and 6 LED indicators
Specifications
- Form factor: 4U
- Dimensions: 437 x 521 x 178 mm (W x D x H)
- Power input: 100-240 V AC, 50/60 Hz
- Operating temperature: 5 to 35 °C
- Colour: black
| Product Condition | New |
|---|---|
| Manufacturer | Supermicro |
| manufacturer code | CSE-842XTQC-R804B |
| Ean | 0672042370016 |
| Form factor | Rack |
| Type | Server |
| Product colour | Black |
| Supported motherboard form factors | ATX, EATX, micro ATX |
| Number of 3.5" bays | 5 |
| Product title | Supermicro SuperChassis 842XTQC-R804B Rack Black 800 W |
| Long Product Name | 4U, 800W, 5x 3.5" hot-swap SAS3/SATA, max. MB 15.2" x 13.2" E-ATX |
| Product specifications | DesignForm factor* Rack Type* Server Product colour* Black Supported motherboard form factors* ATX, EATX, micro ATX Number of 3.5" bays* 5 Number of expansion slots 11 Rack mounting Yes Rack capacity 4U Side window No Reset button Yes On/off button Yes LED indicators Yes Power supplyPower supply included* Yes Power supply 800 W Redundant power supply (RPS) support Yes AC input voltage 100 - 240 V AC input frequency 50 - 60 Hz 80 PLUS certification 80 PLUS Platinum Ports & interfacesUSB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity* 2 StorageSupported HDD sizes* 3.5" Hot-swap Yes Operational conditionsOperating temperature (T-T) 5 - 35 °C Storage temperature (T-T) -40 - 70 °C Operating relative humidity (H-H) 8 - 90% Storage relative humidity (H-H) 5 - 95% Weight & dimensionsWidth 437 mm Depth 521 mm Height 178 mm Packaging dataPackage width 671 mm Package depth 800 mm Package height 351 mm Package weight 20.9 kg Logistics dataHarmonized System (HS) code 84733080 Other featuresPower efficiency 94% Backplanes support Yes |
| Essential qualities |
|
| Power supply included | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Supported HDD sizes | 3.5" |
