Swit FLOW2000 – uncompressed 3G-SDI/HDMI wireless video system, 600 m range
GTIN: 6948193507927

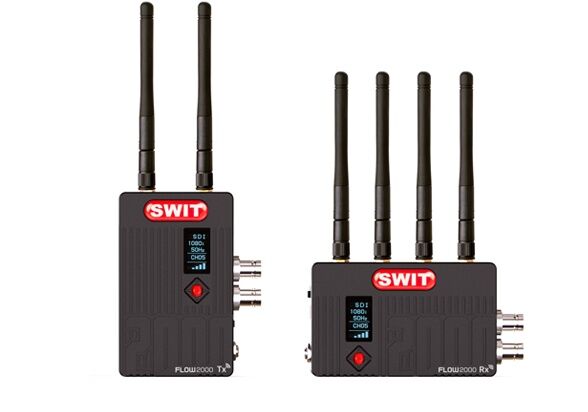

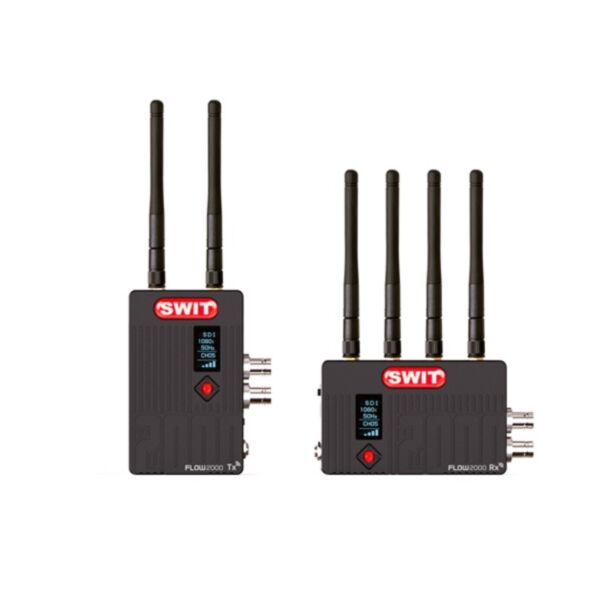

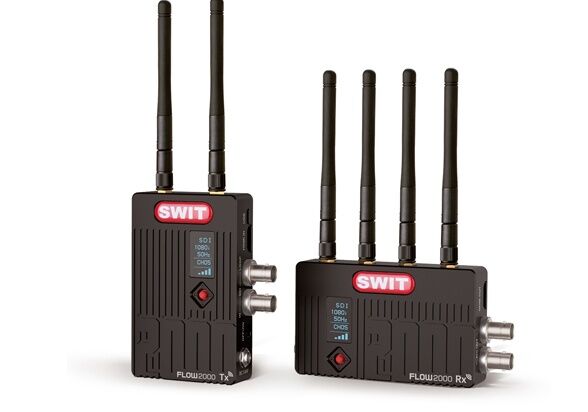

Swit FLOW2000 wireless video system with 3G-SDI/HDMI transmitter and receiver, 600 m line-of-sight range.
Swit FLOW2000 – uncompressed 3G-SDI/HDMI wireless video system, 600 m range
The FLOW2000 sends Full HD video up to 600 m line of sight and is used for director monitoring, drones, cable cams and Steadicam. Compared with ordinary 5 GHz transmitters it gets through walls better and stays stable in crowded places such as stadiums, concerts and squares.
Features
- Swit KUWI wireless technology on licence-free 5 GHz bands, DFS compliant, with channel scanning and automatic hop to the best channel
- 3G/HD-SDI and HDMI video up to 1080p60 with embedded audio (channels 1 and 2)
- Hardware-only link, plug and play, no app
- Multicast from one transmitter to unlimited receivers; double encryption with a private protocol and AES128
- OLED on TX and RX with format, channel and signal strength; 7 non-DFS channels selectable manually
- Reclock of the received signal for correct black level and colour
- NP-F battery plate and lockable 7-34 V DC input on TX and RX; firmware update via Micro USB
Package contents
- Transmitter (2 omni antennas)
- Receiver (4 omni antennas)
Specifications

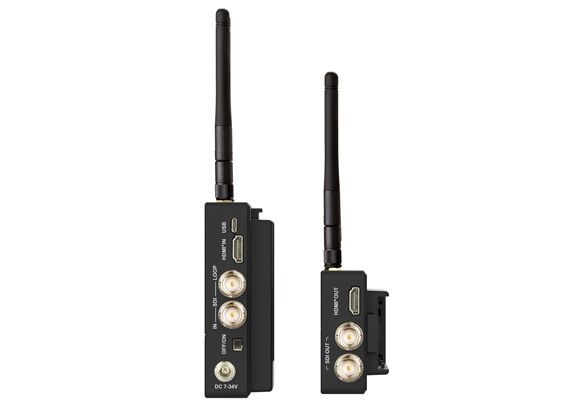

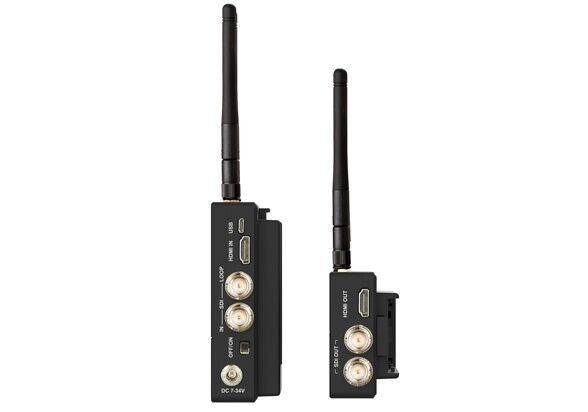

| Transmitter | 1 x 3G/HD-SDI in, 1 x 3G/HD-SDI loop, 1 x HDMI 1.3 in |
|---|---|
| Receiver | 2 x 3G/HD-SDI out, 1 x HDMI 1.3 out |
| Video formats | 1080p 23.98/24/25/29.97/30/50/59.94/60, 1080psf 23.98/24, 1080i 50/59.94/60, 720p 50/59.94/60 |
| Frequencies | 5.18-5.28 GHz and 5.76-5.82 GHz |
| RF power | max 25 mW (CE channels), max 50 mW (FCC channels) |
| Range | 600 m line of sight |
| Power input | DC 7-34 V, NP-F plate |
| Power consumption | 8 W (TX), 8 W (RX) |
| Operating temperature | 0 / +40 °C |
| Dimensions | 66×106.5×24.7 mm (TX and RX) |
| Weight | 0.24 kg (TX), 0.25 kg (RX) |
| Swit code | FLOW2000 |
| Product Condition | New |
|---|---|
| Manufacturer | Swit |
| manufacturer code | FLOW2000 |
| Ean | 6948193507927 |
