Swit FLOW6500 – 3G-SDI/HDMI wireless video system up to 2 km with panel receiver
GTIN: 6948193508436
Swit wireless video system with 3G-SDI and HDMI inputs, range up to 2 km line of sight and directional panel receiver.
Swit FLOW6500 – 3G-SDI/HDMI wireless video system up to 2 km with panel receiver

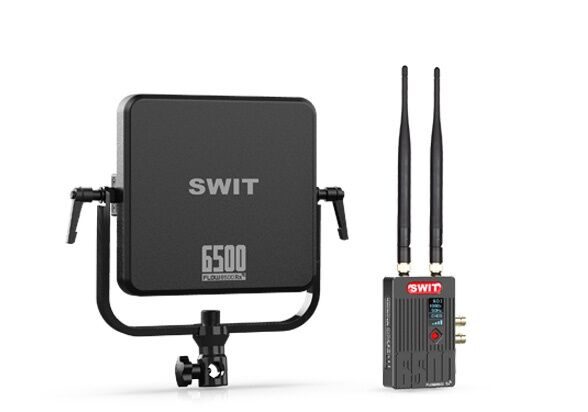

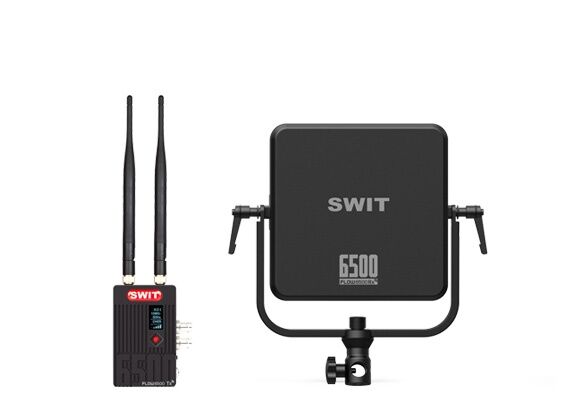

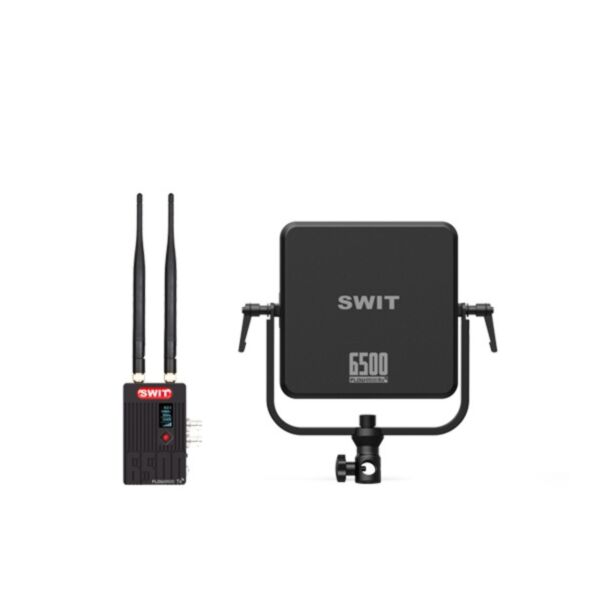

The FLOW6500 uses Swit's professional KUWI wireless technology on the licence-free 5.1-5.9 GHz bands (DFS compliant) to send 3G/HD-SDI and HDMI up to 1080p60 over 2 km line of sight. The receiver has a built-in high-gain directional panel antenna with no external antenna cables, suited to film production and event broadcasting.
Features
- Transmitter with 2 omni antennas, 3G/HD-SDI input with loop out and HDMI 1.3 input
- Panel receiver with 3G/HD-SDI output
- Embedded audio transmission (channels 1 and 2)
- Good wall penetration and stable link even in stadiums, concerts and crowded squares
- Automatic frequency scanning or manual choice of 7 non-DFS channels; OLED display on TX and RX
- Multicast from one transmitter to unlimited receivers, double encryption with AES128
- Works with FLOW500, FLOW2000 and FLOW6500 receivers at different distances

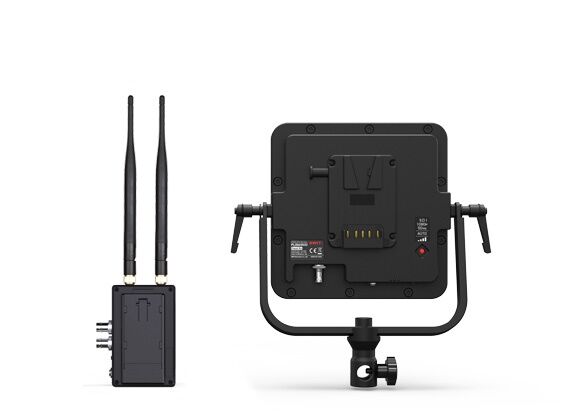

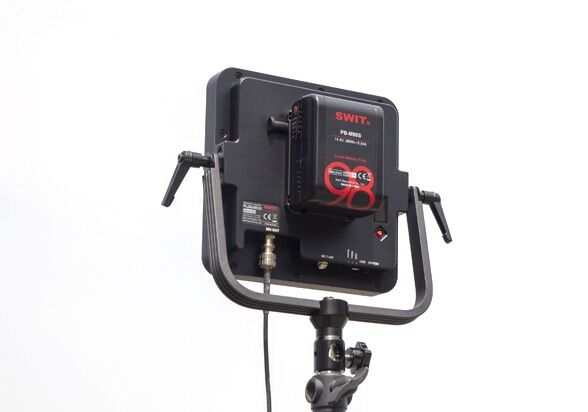

- Transmitter with NP-F battery plate, receiver with V-Mount plate; both with 7-34 V DC input
Specifications
| TX inputs | 1 × 3G/HD-SDI with loop out, 1 × HDMI 1.3 |
|---|---|
| RX output | 1 × 3G/HD-SDI |
| Video formats | 1080p 23.98-60, 1080psf 23.98/24, 1080i 50-60, 720p 50-60 |
| Frequency | 5.17-5.69 GHz and 5.75-5.83 GHz |
| RF power | Max 25 mW (CE channels), max 50 mW (FCC channels) |
| Range | 2000 m line of sight |
| Power input | TX and RX DC 7-34 V |
| Power consumption | TX 9 W, RX 9 W |
| Operating temperature | 0-40 °C |
| TX dimensions | 66 × 106.5 × 24.7 mm |
| RX dimensions | 190 × 190 × 46 mm |
| Weight | TX 0.29 kg, RX 1.5 kg |
| Packed weight | 7.6 kg |
| Swit code | FLOW6500 |
Specifications
- Transmitter inputs: 1 x 3G/HD-SDI input with 1 x loop output, 1 x HDMI 1.3 input
- Receiver output: 1 x 3G/HD-SDI
- Video formats (SDI and HDMI): 1080p 60/59.94/50/30/29.97/25/24/23.98, 1080psf 24/23.98, 1080i 60/59.94/50, 720p 60/59.94/50
- Audio: embedded audio channels 1 and 2
- Frequency: 5.17 - 5.69 GHz and 5.75 - 5.83 GHz
- RF modulation: OFDM 16QAM, 64QAM, QPSK, BPSK
- RF power: max. 25 mW (CE channels), max. 50 mW (FCC channels)
- Transmission distance: 2000 m (line of sight)
- Input voltage: DC 7 - 34 V (transmitter and receiver)
- Power consumption: 9 W transmitter, 9 W receiver
- Operating temperature: 0 to +40 °C
- Transmitter: 66 x 106.5 x 24.7 mm, 0.29 kg
- Receiver: 190 x 190 x 46 mm, 1.5 kg
In the box
- 1 x FLOW6500 transmitter
- 1 x FLOW6500 panel receiver
- Carrying case
- AC-DC adaptor (3 m)
- D-Tap to lockable pole-tap cable
- Cold shoe and 1/4" arm trestle
| Product Condition | New |
|---|---|
| Manufacturer | Swit |
| manufacturer code | FLOW6500 |
| Ean | 6948193508436 |
