Tilta HDA-T08-A-V – Hydra Arm Mini car crane, Pro kit V-Mount, for DJI RS 2/RS 3 Pro gimbals

Tilta HDA-T08-A-V – Hydra Arm Mini car crane, Pro kit V-Mount, for DJI RS 2/RS 3 Pro gimbals

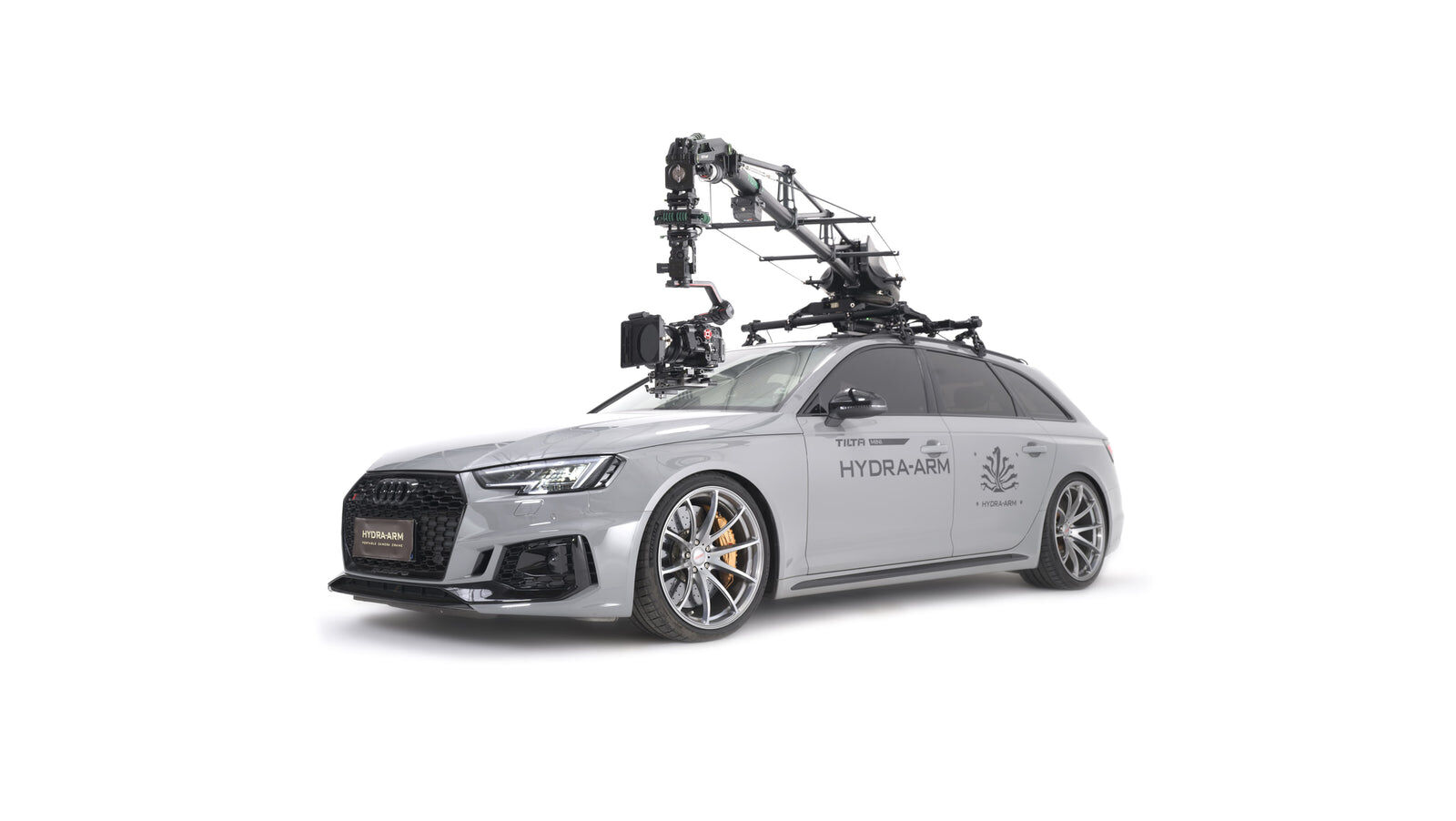

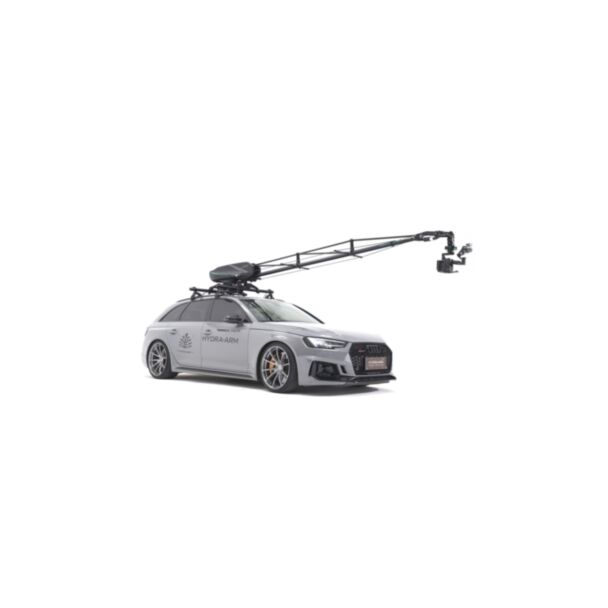

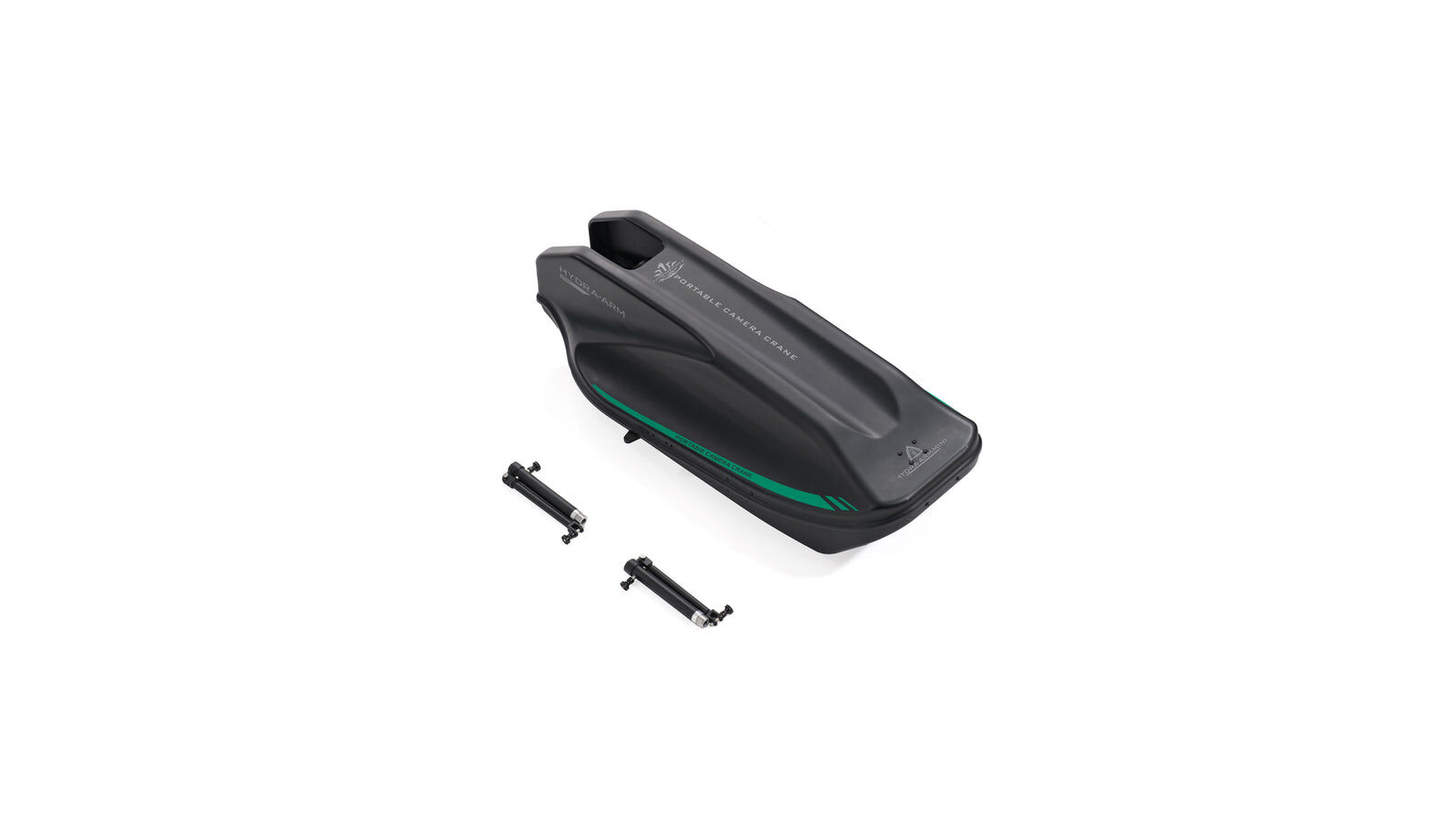

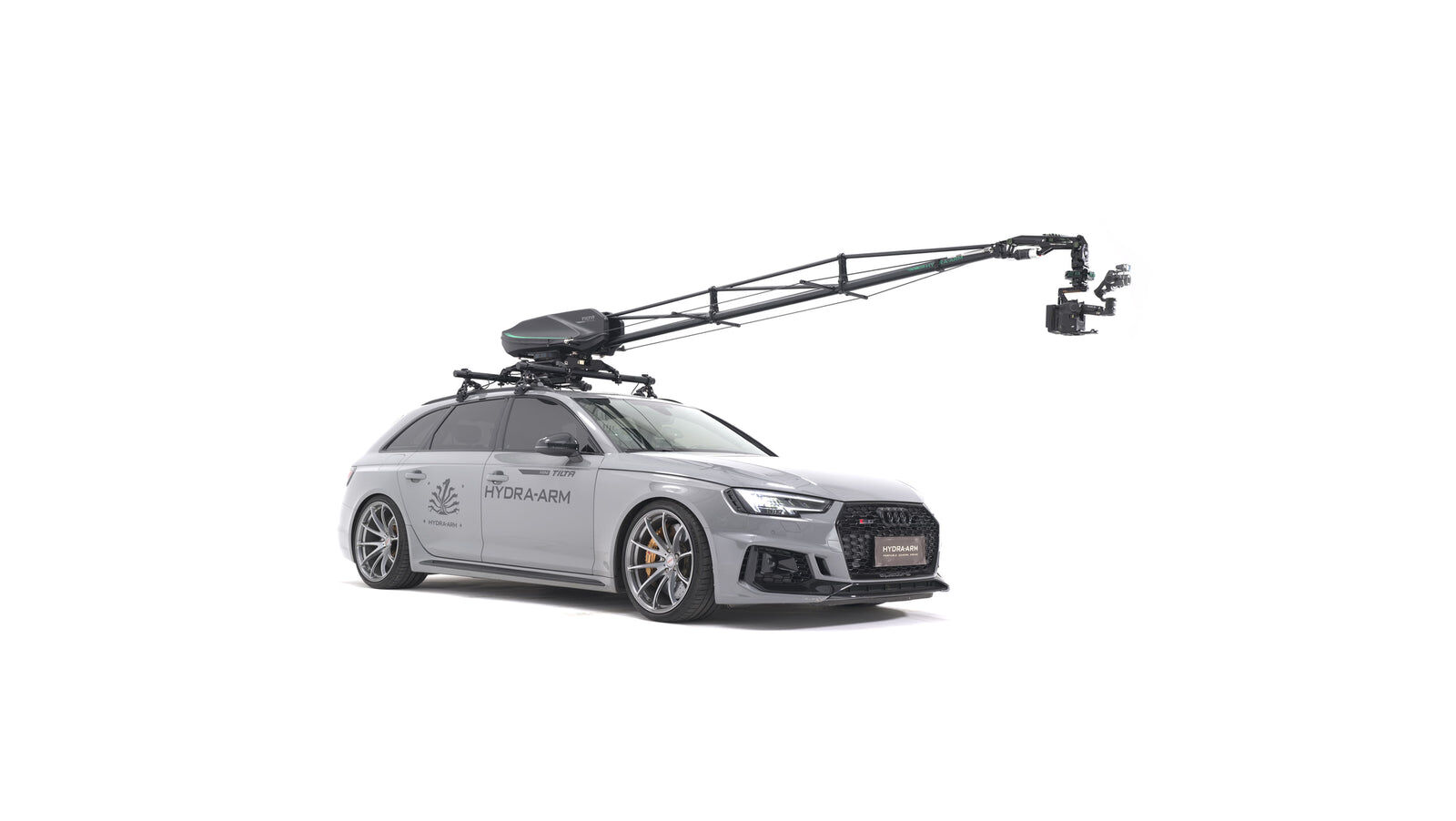

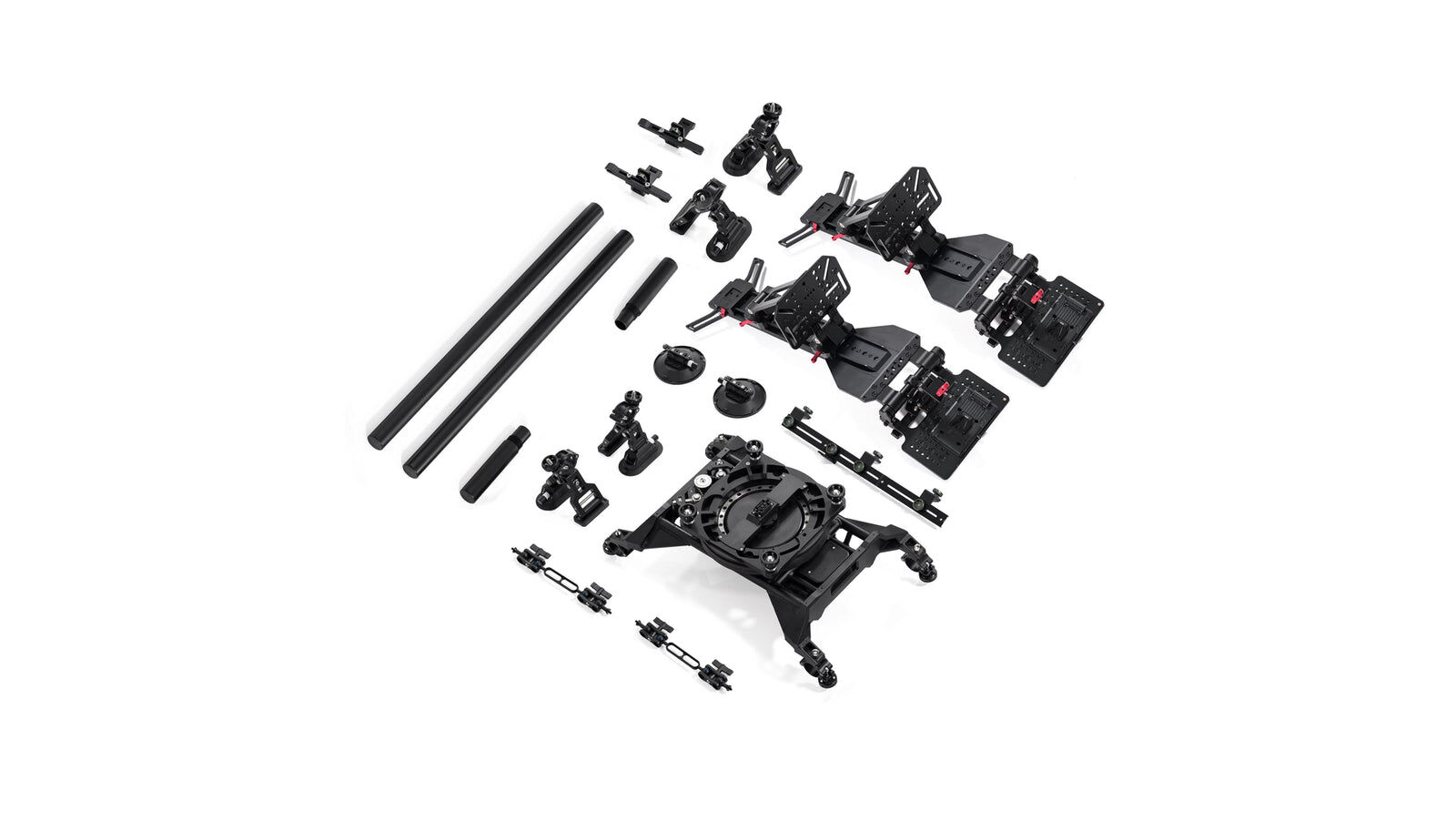

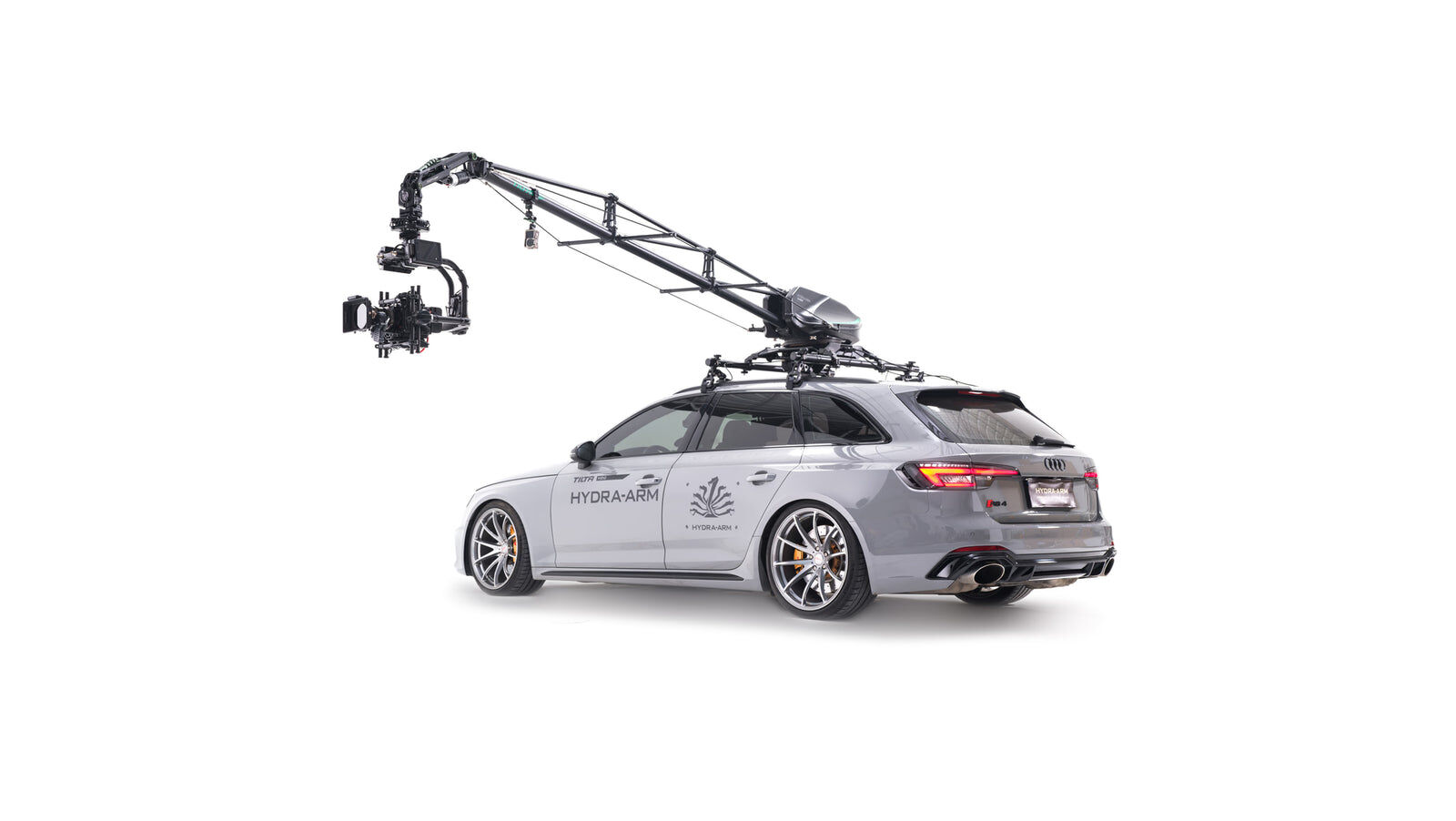

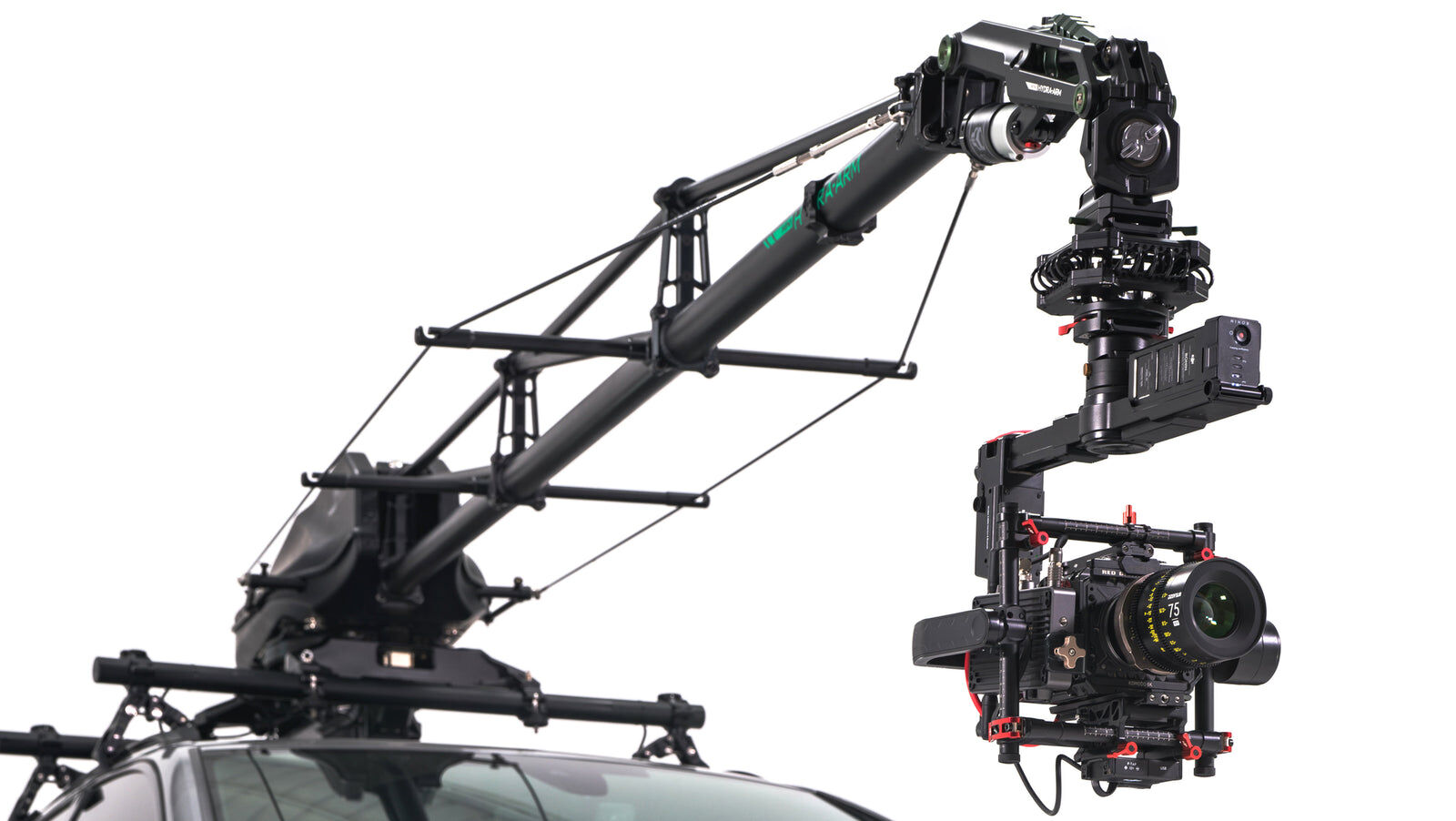

Hydra Arm Mini is a crane arm for shooting from moving vehicles, portable enough to travel in an SUV or as airline luggage. It is designed for the DJI RS 3 Pro and RS 2 gimbals but also works with Ronin 4D, Ronin MX, Freefly Movi Pro and other systems. The Pro kit includes suction cups, speed rail and ratchet straps for fixing it to the vehicle.

Features

• Counterweight-free design with 360° rotation: quicker set-up and safer operation
• Shock-absorbing arm adjustable for payload; shock-absorbing head adjustable separately on horizontal and vertical axes
• Wired controller with speed, damping and motion-limit settings for pan and tilt, plus user profiles
• Pro Mode to control the arm and an RS 2/RS 3 Pro gimbal together from the controller
• V-Mount battery plate at the end of the arm and P-Tap to 2-pin cable to power the gimbal
• Other gimbals can be used if they mount via ¼″-20, run on V-Mount power and stay within 22 lb (about 10 kg)
• Speeds up to 120 km/h in ideal conditions; Tilta recommends staying at or below 60 km/h, especially with heavier cameras or lighter gimbals

Note: The arm weighs about 80 kg (176 lb) without gimbal and camera: the vehicle must be able to carry it. The arm has no power or video pass-through to the camera: a wireless video transmitter (not included) is needed and the camera is powered by its own batteries or the arm battery plate.

Specifications
