Wooden Camera 248800 – Master Top Handle for RED DSMC2, main handle section
GTIN: 0606184854363

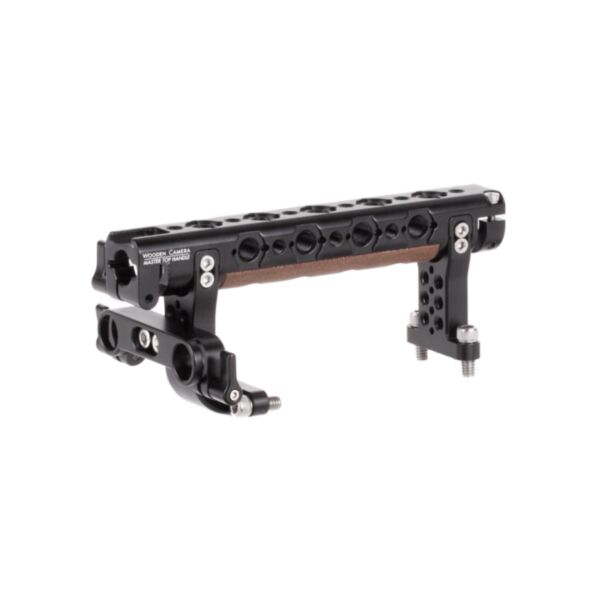

Main section of the modular Master Top Handle for RED DSMC2, with shoe mount, ¼"-20 and ⅜"-16 holes, ARRI mount and two 15 mm openings.
Wooden Camera 248800 – Master Top Handle for RED DSMC2, main handle section
The Master Top Handle is a modular handle system designed for larger camera builds and operating from the back of the camera. This is the main section, the base of the system, which attaches at two points to the Easy Top or Pass Through Top Plate for RED DSMC2 with four ¼"-20 screws.
Features
- ¼"-20 and ⅜"-16 mounting points on three sides plus ARRI standard accessory mount.
- Front shoe mount and 15 mm rod opening with thumbscrew.
- Rear 15 mm opening clamped by an M4 screw.
- Extensions attach with a multi-action motion (insert, rotate, push) that prevents accidental removal, then lock with a screw.
Note: requires the Easy Top or Pass Through Top Plate for RED DSMC2, sold separately; extensions are not included.
Specifications
| Compatibility | RED DSMC2 with Easy Top or Pass Through Top Plate |
|---|---|
| Weight | 314 g |
| Dimensions | 50.8 x 196.85 x 76.2 mm |
| Product Condition | New |
|---|---|
| Manufacturer | Wooden Camera |
| manufacturer code | 248800 |
| Ean | 0606184854363 |
