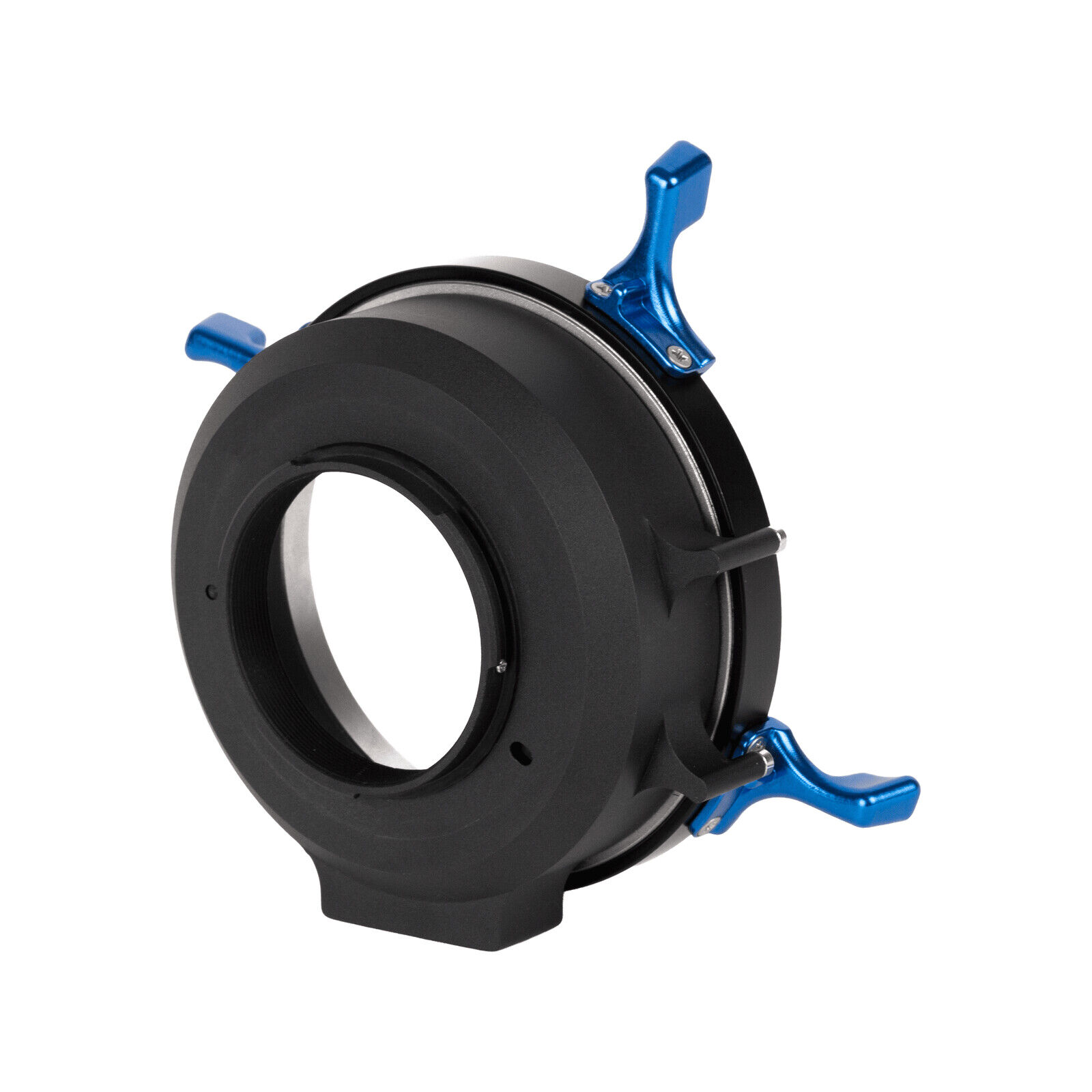

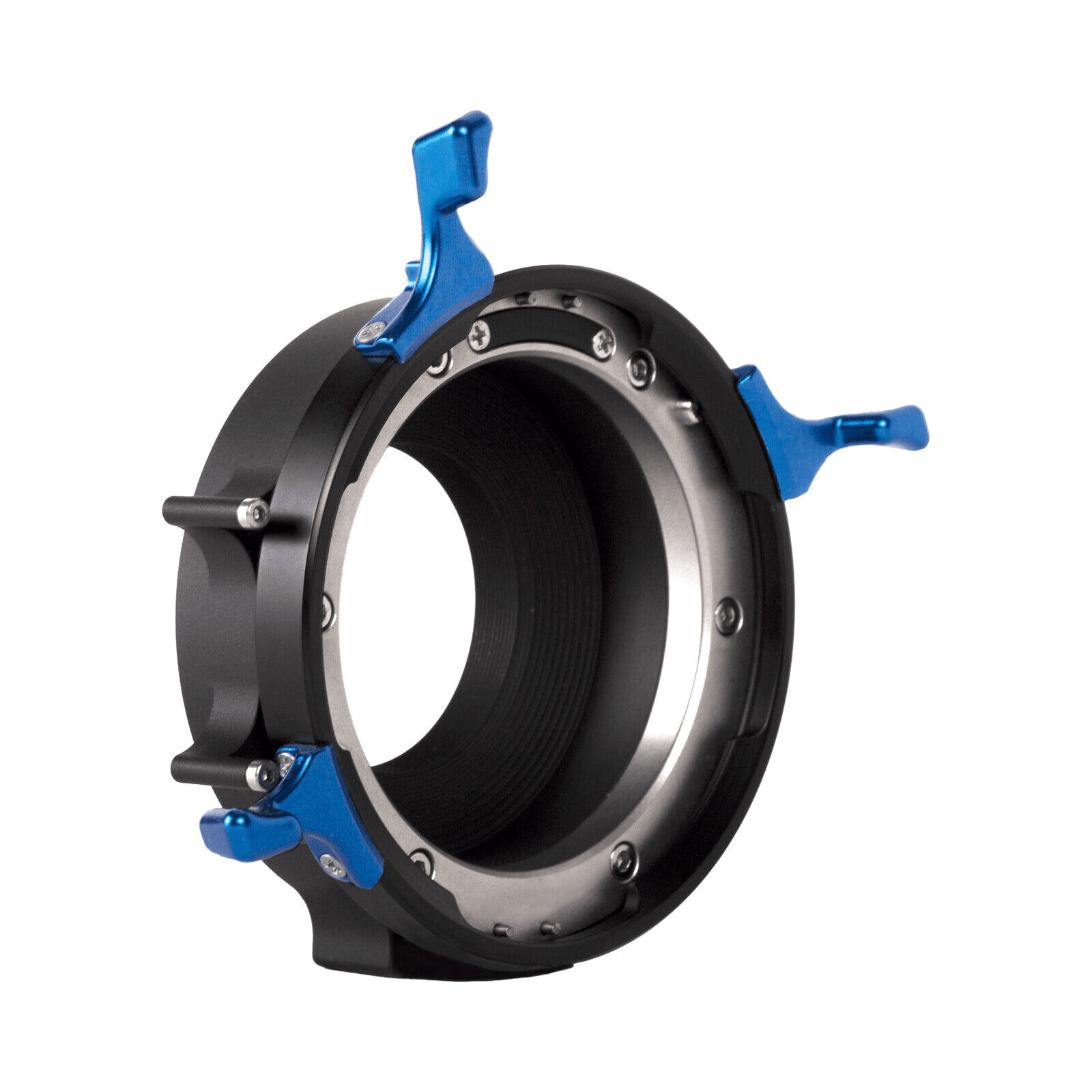

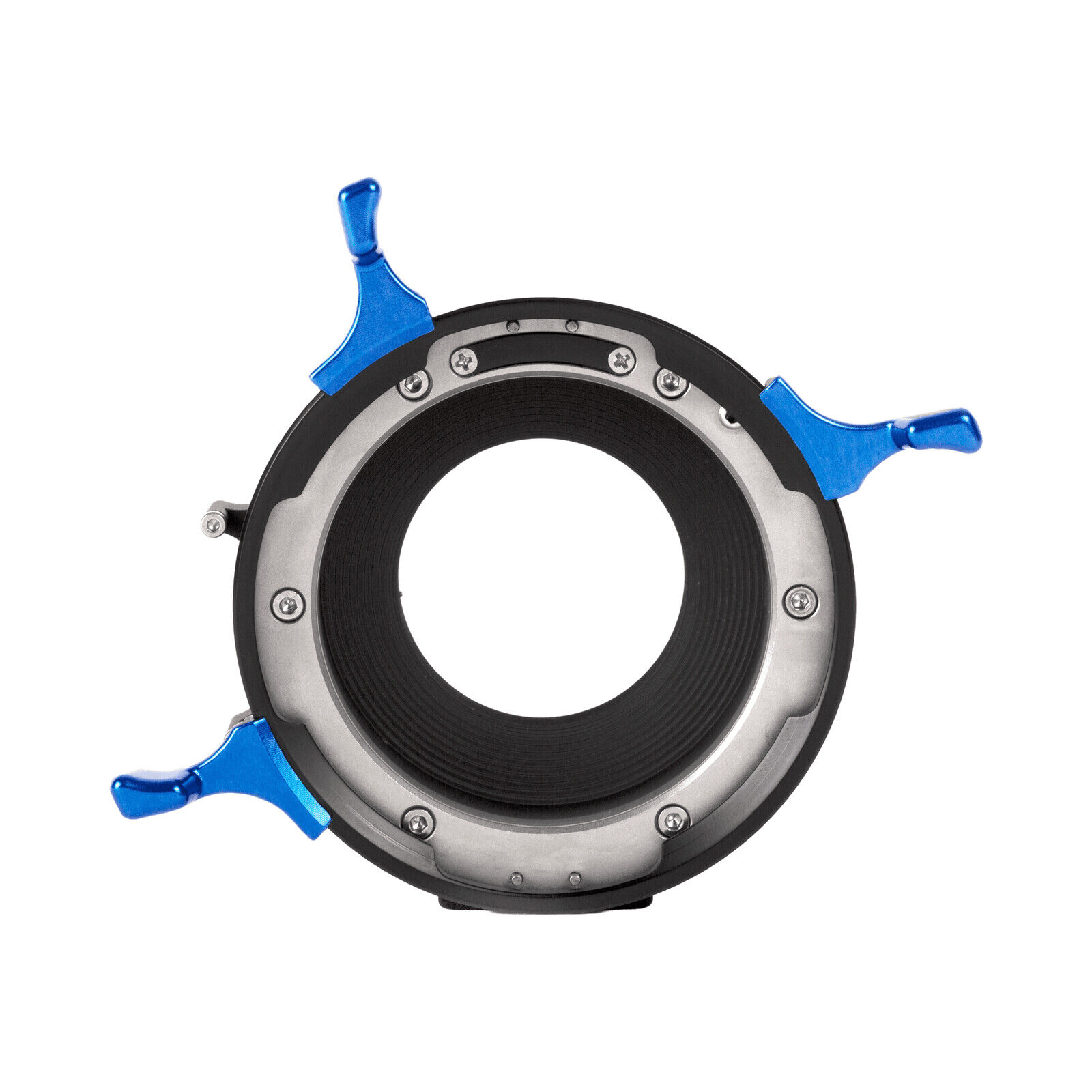

Wooden Camera 269100 – Sony E-Mount to ARRI LPL mount adapter (Pro)

Wooden Camera 269100 – Sony E-Mount to ARRI LPL mount adapter (Pro)

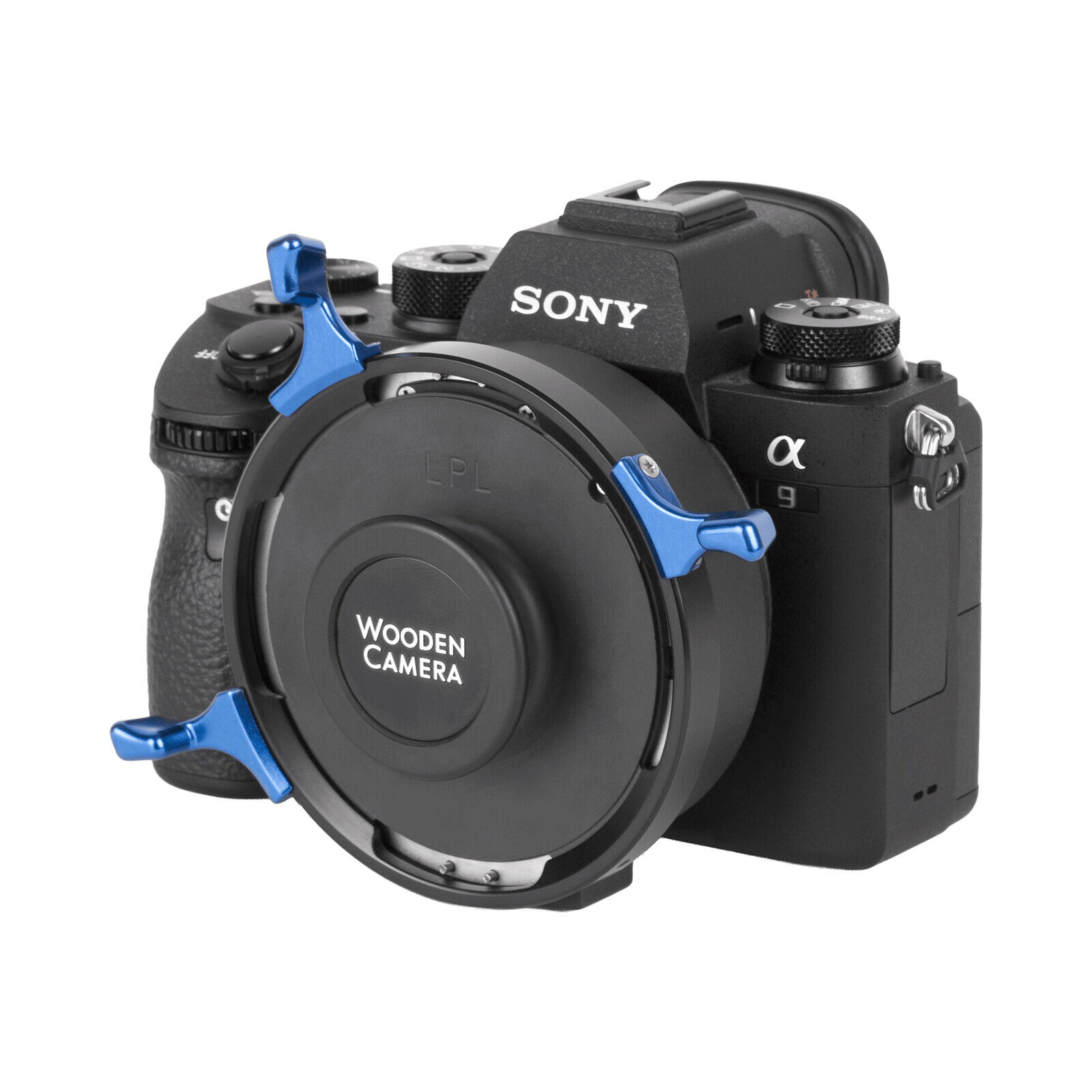

E-Mount to LPL adapter for Sony Alpha full frame cameras. Flange focal distance is set at the factory with collimation tools; the shims are only needed if the camera turns out to be out of calibration.

Features

• Foot with ¼"-20 hole for tripod attachment, taking the strain off the camera mount
• The foot can also attach to the Unified DSLR Cage through the vertical support hole (with the Unified Lens Adapter Support Kit)
• Shimmable: loosen six socket cap screws on the collar and separate the two sections
• Stackable colour-coded shim set from 0.0127 to 0.127 mm (silver, amber, purple, red, green, tan, blue)
• Compatible with the ARRI LPL to PL adapter

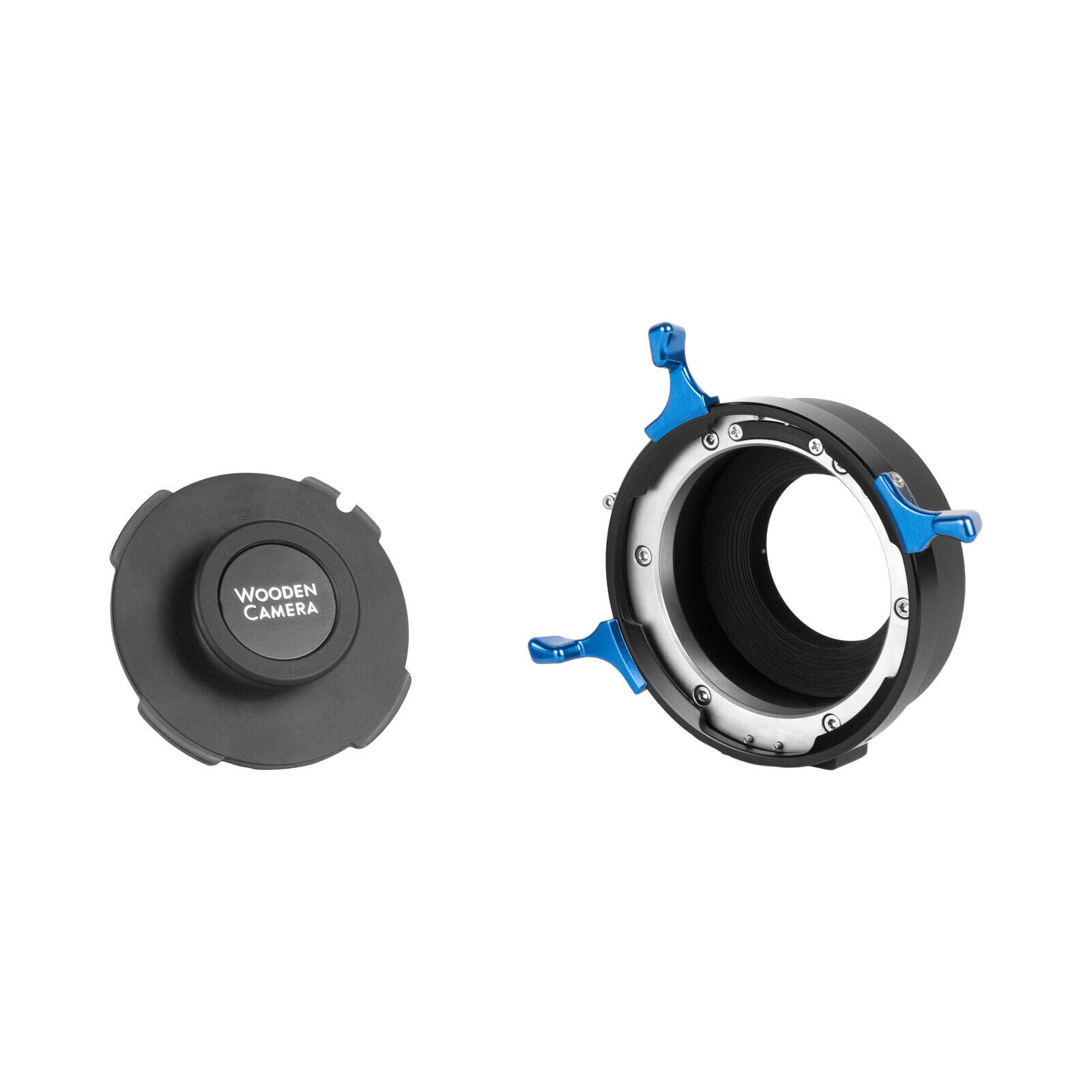

• LPL cap included to keep dust away from the sensor
• Passive mount: no lens data is passed to the camera

Note: not compatible with Sony cameras with a positive locking E-Mount, such as the FX9 and FS7mkII.
