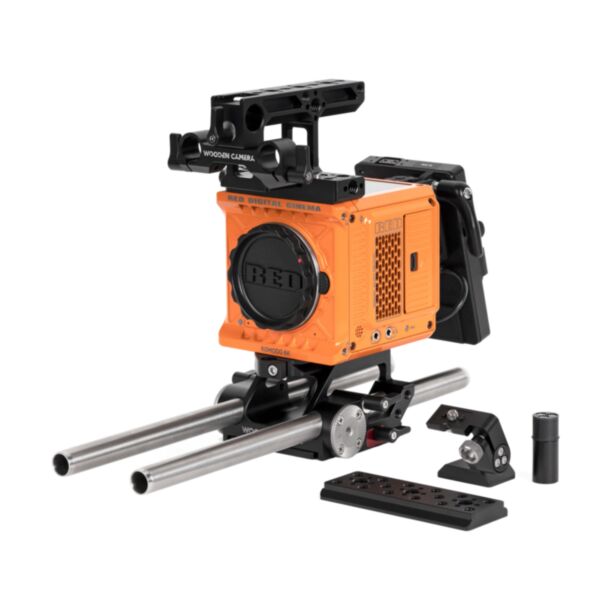

Wooden Camera 280900 – Pro accessory kit V-Mount for RED Komodo

Wooden Camera 280900 – Pro accessory kit V-Mount for RED Komodo

A Wooden Camera accessory kit for the RED Komodo combining rod support, top handle, monitor mounting and V-Mount power.

Features

• LW 15 mm baseplate: 15 mm rods at the correct distance from the lens centre, ARRI M6 rosettes, ¼"-20 holes and ⅜"-16 mount, upper ARCA dovetail with vertical lens support and lower ARRI slot with included Quick Dovetail.
• Top Mount: attaches with two captive ¼"-20 screws and provides a centre ARCA slot plus ¼"-20 and ⅜"-16 holes.
• Top handle: slides into the ARCA slot leaving the control screen accessible; shoe mount for lights and microphones, side 15 mm opening for the monitor arm or a UVF mount, ARRI mounts and front 15 mm rod bracket.
• Monitor hinge: direct ¼"-20 mount for SmallHD monitors, with rubber pad for third-party monitors and 15 mm spud for quick release onto the handle.
• Top plate: rows of ¼"-20 and ⅜"-16 mounts at standard spacing, adjustable forward; useful for gimbals and drones.
• Battery Slide Pro V-Mount: fits the BP-9 battery slot, three D-Taps with over-current protection (5.8 A) and DC input for hot swap.

Package contents

• LW 15 mm baseplate for RED Komodo
• Complete top mount kit for RED Komodo
• Battery Slide Pro V-Mount for RED Komodo
• 2 x 15 mm rods (305 mm)

Specifications
