Wooden Camera A00025 – Universal Micro Battery Plate, V-Mount
GTIN: 0655466572471
Aluminium micro V-Mount battery plate with 60 x 60 mm M3 hole pattern, 2 D-Tap ports and 9 A digital fuse.
Wooden Camera A00025 – Universal Micro Battery Plate, V-Mount
Anodised aluminium battery plate with a symmetrical 60 x 60 mm M3 square bolt pattern for universal mounting on cages and accessories. It takes both micro and full-size cinema batteries.
Features

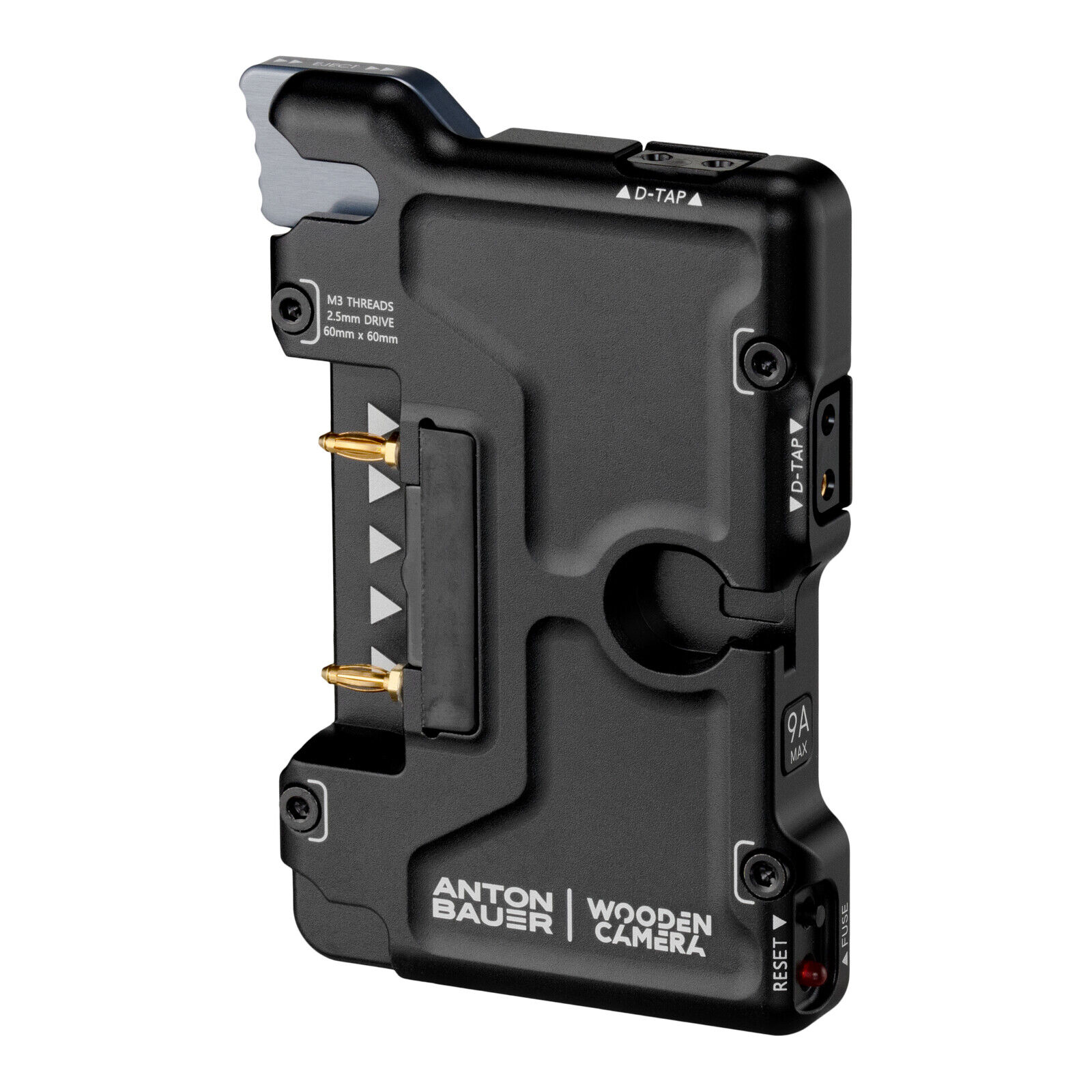

- 2 D-Tap outputs at battery voltage (11-17 V)

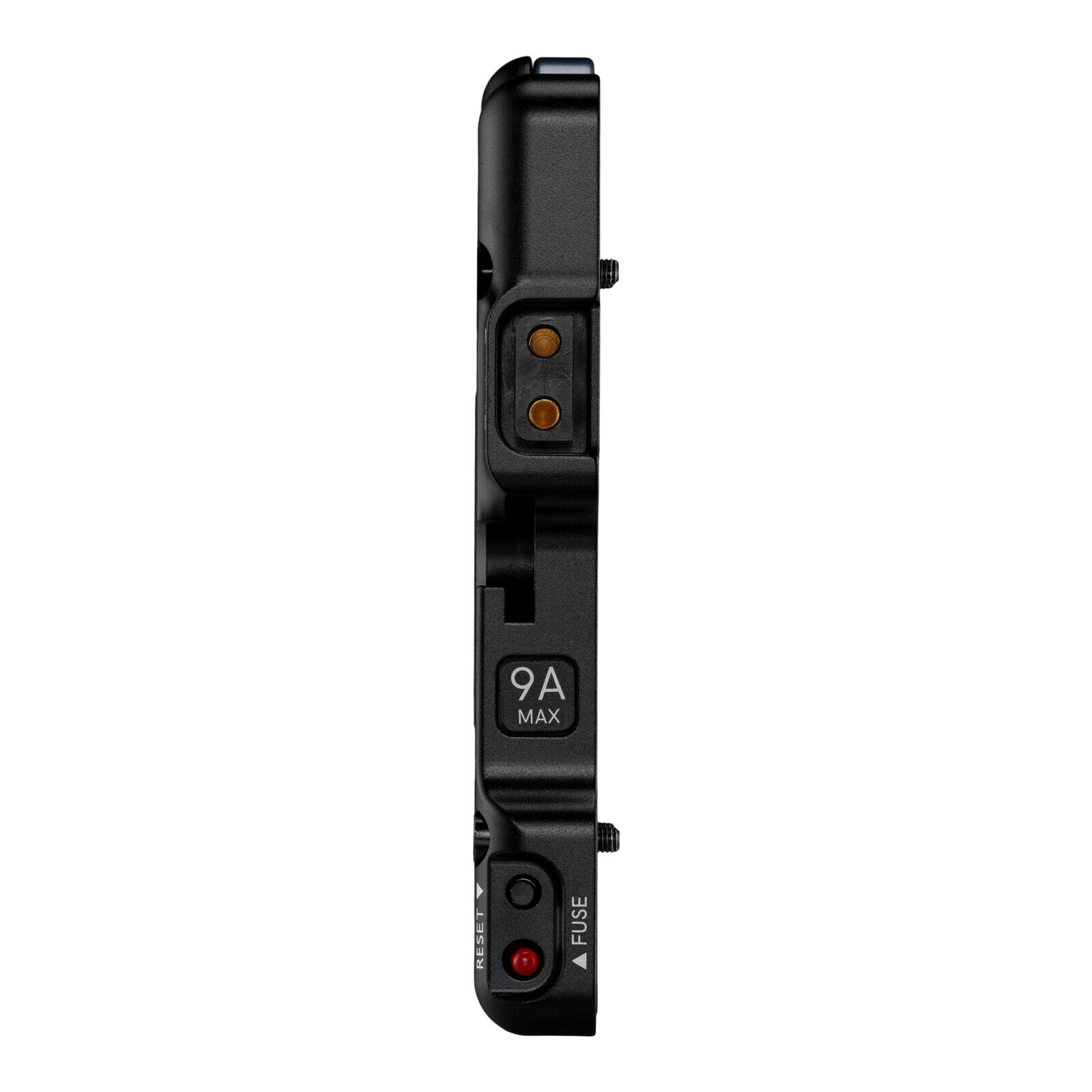

- Resettable 9 A digital e-fuse: if the set current is exceeded the outputs switch off; reset with the reset button
- Rear cover plate and captive mounting screws
Note: this plate does not have the pogo contacts to power SmallHD Ultra 5, Ultra 7 and Ultra 10 monitors: with these monitors only a D-Tap to 2-pin cable can be used.
Specifications
| Battery mount | V-Mount (micro) |
|---|---|
| Bolt pattern | M3, 60 x 60 mm |
| Weight | 146 g |
| Dimensions | 75 x 25.6 x 108 mm |
| Product Condition | New |
|---|---|
| Manufacturer | Wooden Camera |
| manufacturer code | A00025 |
| Ean | 0655466572471 |
